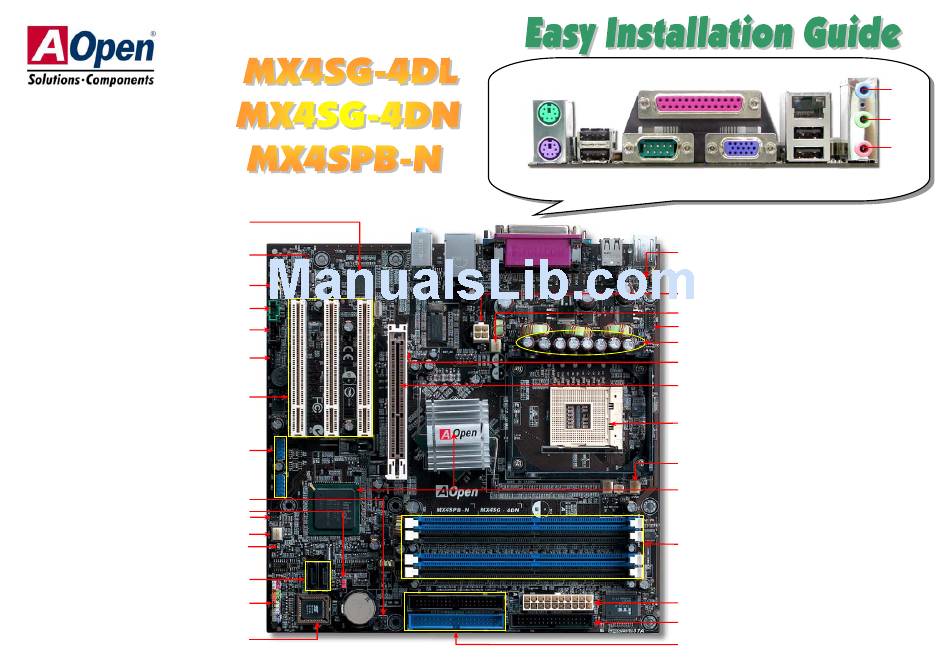

Broadcom Gigabit LAN Chip (MX4SG-4DL)
Broadcom 10/100 Mbps LAN Chip
(MX4SG-4DN & MX4SPB-N)
Onboard AC'97 CODEC
Front Audio Connector
AUX-IN Connector
CD-IN Connector
S/PDIF Connector
32-bit PCI Expansion Slot x3
USB 2.0 Connector x2
IrDA Connector
JP14 CMOS Data Clear Jumper
Case Open Connector
SYSFAN2 Connector
STBY LED
Serial ATA Port x2
Supports 150 MB/s Transfer Rate
Front Panel Connector
4 Mb Flash ROM BIOS
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB 2.0
Ports
PS/2 Keyboard
COM 1 Port
Connector
(For MX4SG-4DL and
Resetable Fuse
JP28 PS2 KB/Mouse Wakeup Jumper
4-pin 12V ATX Power Connector
SYSFAN1 Connector
COM2 connector
Low ESR Capacitors
AGP Protection LED
AGP 8X Expansion Slot
supports 8X AGP card (2.1GB/S) and ADD
card (for MX4SG-4DL & MX4SG-4DN)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
Intel
CPUFAN Connector
Intel
Intel
184-pin DIMMx4 supports
128bit dual channel DDR400/333/266
Max. To 4GB (for MX4SG-4DL & MX4SG-4DN)
184-pin DIMMx2 supports
128bit DDR400/333/266
Max. To 2GB (for MX4SPB-N)
ATX Power Connector
FDD Connector
IDE Connector x 2
(ATA33/66/100 supported)
RJ45 10/100/1000
LAN Jack
USB 2.0 Ports
VGA Port
MX4SG-4DN)
®
®
Pentium
4 1.6~3.20GHz+ CPU
®
865G Chipsets (for MX4SG-4DL & MX4SG-4DN)
®
848PB Chipsets (for MX4SPB-N)
Line-In
Speaker
Out
MIC-In
Advertisement
Table of Contents
Related Manuals for AOpen MX4SG-4DL
Summary of Contents for AOpen MX4SG-4DL
- Page 1 Front Panel Connector ATX Power Connector FDD Connector IDE Connector x 2 4 Mb Flash ROM BIOS (ATA33/66/100 supported) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this 2. Remove ATX power cable from connector PWR2. motherboard is included in this 3. -
Page 3: Connecting Front Panel Cable
3. Connecting ATX Power Connector 5. Setting CPU Voltage & Frequency Full-range Adjustable CPU Core Voltage This motherboard comes with a 20-pin and 4-pin ATX power connector as shown below. Make sure you plug in the right direction. We strongly recommend you to insert the 4-pin This motherboard supports CPU VID function. -
Page 4: Memory Module
There are four ports on the back panel. You can Mbps (for MX4SG-4DL, it is 10/100/1000 Mbps) Ethernet for office and home use. The use proper cables to connect the Front USB connector to USB modules or front panel of Ethernet RJ45 connector is located on top of USB connectors. - Page 5 12. S/PDIF (Sony/Philips Digital Interface) Connector 10. Connecting IrDA Connector The IrDA connector can be configured to support wireless infrared module, with this S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides module and application software such as Laplink or Windows 98 Direct Cable Connection, impressive audio quality through optical fiber and allows you to enjoy digital audio instead of the user can transfer files to or from laptops, notebooks, PDA devices and printers.
-
Page 6: Front Audio Connector
BIOS Setup, press <Del> during POST (Power On Self Test). upgrading. Choose "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip download... -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. MX4SG-4DL is model name of motherboard; R1.00 is BIOS version... - Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.
