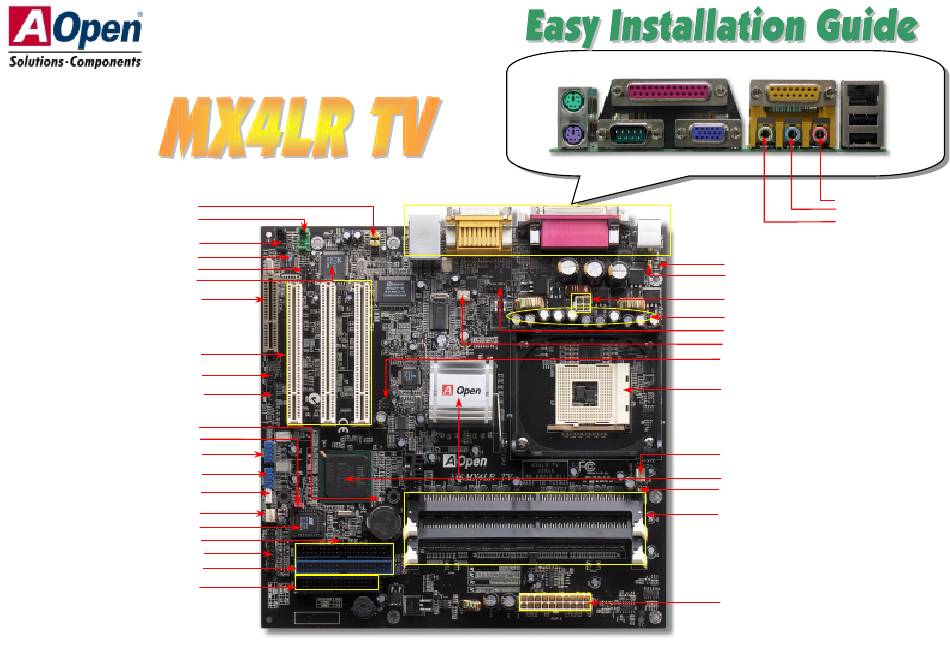

AOpen MX4LR TV Easy Installation Manual
Hide thumbs
Also See for MX4LR TV:
- Easy installation manual (9 pages) ,
- Manual (120 pages) ,
- Online manual (108 pages)
Table of Contents
Advertisement
Quick Links
Front Audio Connector
AUX-IN Connector
CD-IN Connector
AC'97 CODEC
S/PDIF Connector
RealTek RTL8100BL
CNR Connector
32-bit PCI Expansion Slot x3
IrDA Connector
WOM (Wake on Modem) Connector
LED 3 (Boot LED)
JP14 CMOS Clear Jumper
nd
2
USB2.0 Connector
rd
3
USB2.0 Connector
WOL (Wake on LAN) Connector
FAN3 Connector
4Mbit Flash ROM
Chassis Intrusion Detector
Front Panel Connector
ATA/33/66/100 IDE Connector x2
FDD Connector
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
COM 1 Port
VGA Connector
Connector
RJ45 LAN
MIDI/Game Port
Jack
USB2.0 Port
MIC-In
Line-In
Speaker Out
Resetable Fuse
JP28 Mouse/Keyboard/USB
Wake-up Select Jumper
4-pin ATX-12V Power Connector
2200 F Low ESR Capacitors
COM2 Connector
FAN2 Connector
TV Output Connector
478-pin CPU socket (Willamette/
Northwood) with Voltage and Frequency
®
Auto-detection that supports Intel
®
Pentium
4 1.4~2.4GHz+ CPU
CPU FAN connector
Intel 845GL Chipset
LED 1 (STBY LED)
184-pin DIMMx2 supports DDR266/200
maximum up to 2 GB
(Placed inclined)
ATX Power Connector
Advertisement
Table of Contents
Related Manuals for AOpen MX4LR TV
Summary of Contents for AOpen MX4LR TV
- Page 1 RJ45 LAN PS/2 Mouse SPP/EPP/ECP Parallel Port MIDI/Game Port Jack Connector PS/2 Keyboard COM 1 Port VGA Connector USB2.0 Port Connector MIC-In Front Audio Connector Line-In AUX-IN Connector Speaker Out CD-IN Connector AC’97 CODEC Resetable Fuse S/PDIF Connector JP28 Mouse/Keyboard/USB RealTek RTL8100BL Wake-up Select Jumper CNR Connector...
- Page 2 1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.
-
Page 3: Installing Processor
3. Installing Processor 5. Setting CPU Voltage & Frequency This socket supports FC-PGA2 package CPU, which is the latest CPU package developed Setting CPU Core Voltage by Intel. Other forms of CPU package are impossible to be fitted in. This motherboard supports CPU VID function. The CPU core voltage will be automatically detected. -
Page 4: Support Six Usb2.0 Connectors
6. Support Six USB2.0 Connectors 8. Connecting IDE and Floppy Cables This motherboard provides six USB connectors to connect USB devices, such as mouse, Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can IDE connector. - Page 5 12. Connecting CD-IN /AUX-IN Connector 10. Front Audio Connector If the housing has been designed with an audio port on the front panel, you’ll be able to AUX-IN (Green) CD-IN (Black) The AUX-IN connector is used to connect MPEG connect onboard audio to front panel through this connector. By the way, please remove Audio cable from MPEG card to onboard sound.
- Page 6 STRONGLY RECOMMMANDED to close all the applications before you start the model name. upgrading. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/) Unzip the download BIOS package (ex: WMX4LRTV102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
-
Page 7: Part Number And Serial Number
The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. MX4LR TV is the model name of the motherboard; R1.00 is BIOS version... - Page 8 Dear Customer, Test Report: We recommend choosing board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://english.aopen.com.tw/tech/report/default.htm...
