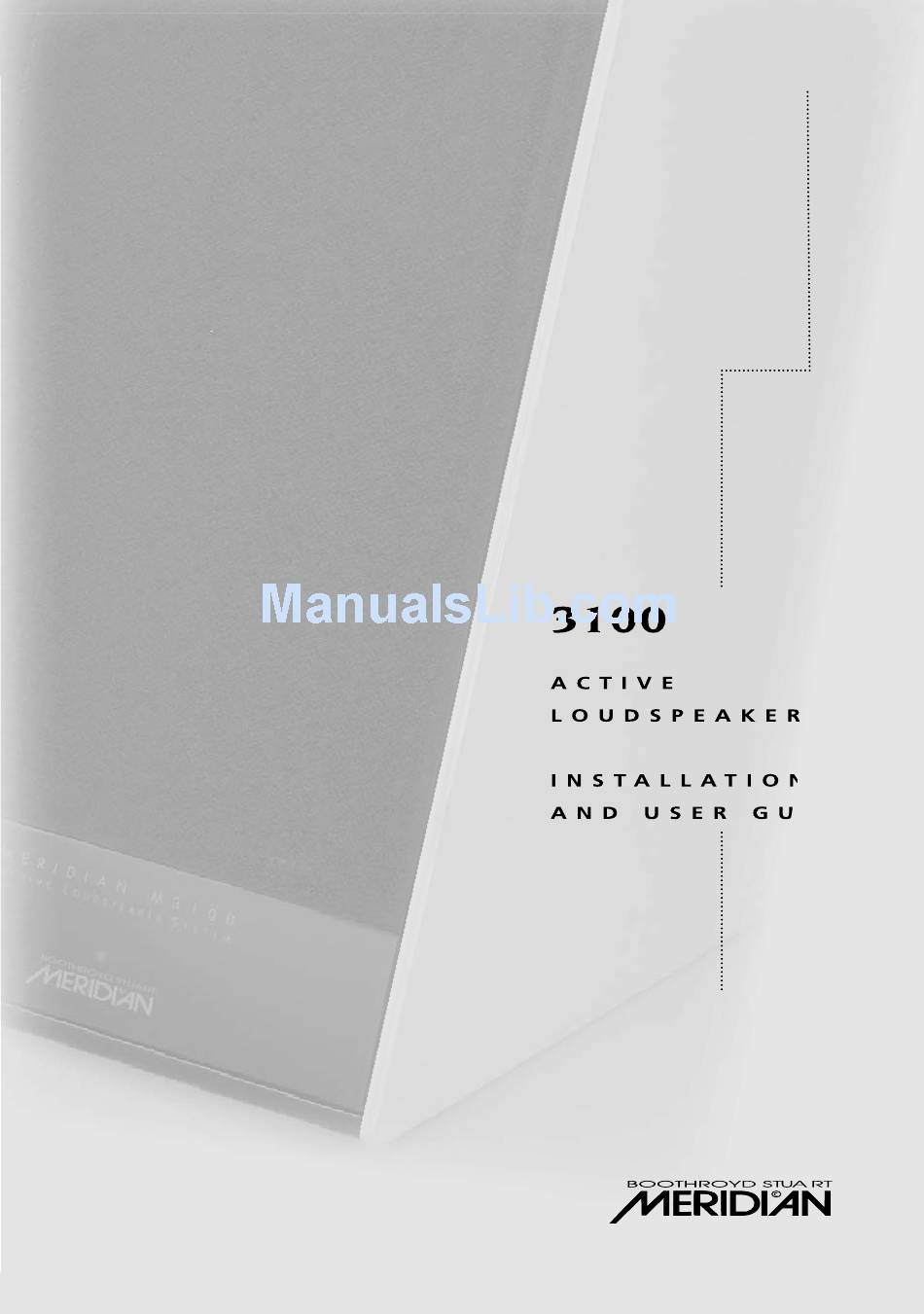

- Page 1 3100 A C T I V E L O U D S P E A K E R I N S T A L L A T I O N A N D U S E R G U I D E...
-
Page 2: Important Safety Instructions
Sales and service in the USA Meridian Audio Ltd. This technology is provided for the express purpose of securely Meridian America Inc, 8055 Troon Circle, Suite containing copyright audio within the C, Austell, GA30168-7849, USA Meridian System only. Reverse engineering or... -
Page 3: About Your Meridian Active Loudspeakers
Each 3100 loudspeaker uses either one or two high-effi ciency long-throw custom drive bass units. Each treble unit is a very high quality 25mm (1”) Meridian piston using a doped fabric dome. It is extremely well matched to the woofers, and also tonally very compatible with the other drivers employed in the Meridian range. -
Page 4: Unpacking Your Speakers
Each Active loudspeaker system is supplied with the following components: • One power cord per speaker. • Meridian analogue audio lead. • Pack of four feet/spikes. If any of these items is missing please contact your dealer. We suggest that you retain the packaging carefully for maximum protection in transit. -
Page 5: Audio Connections
Connections The following diagram gives details of the back panel connections: Balanced Unbalanced input input Power INPUTS BALANCED UNBALANCED POWER FUSE BALANCED UNBALANCED Input selector See overleaf for pictures of sample confi gurations. Audio connections The following table gives details of the audio connections: Use this connection To connect to this BALANCED... -
Page 6: Connecting Two 3100 Loudspeakers To A Meridian Control Unit Or Other Analogue Preamplifier
Centre CENTRE PHONO LEAD You can use a single M3100HC as a centre speaker in a Meridian surround system based on a Meridian G61, G68AD, G68ADV, or G68AXV Digital Surround Controller. • Connect the speaker to the CENTRE analogue output, as shown in the illustration. -
Page 7: Connecting Three Or More M3100 Loudspeakers To A G91A In A Meridian Surround System
Main left Rear left The Meridian G91A DVD Player can be confi gured as a surround processor, allowing you to connect it directly to up to fi ve M3100 loudspeakers, and an optional subwoofer, such as the Meridian DSW1600, to create a complete compact surround system. -
Page 8: Troubleshooting
If the front panel indicator will still not illuminate, check any fuses in your power If this equipment does cause or suffer from supply and the fuse in the inlet of the 3100 interference to/from radio or television loudspeaker. If these are all intact, contact your reception then the following measures should dealer.
