Meridian DSP520 Quick Manual

Meridian has introduced a new range
of DSP-based in-wall loudspeakers.
The first to be released is the DSP520
full-range loudspeaker, followed by the
larger DSP640 and a matching sub-
woofer, the DSW500.
Increasingly, home theatre installations
in particular call for in-wall designs,
and Meridian's existing DSP in-
wall model, the DSP420, has been
one of the company's most popular
loudspeaker since its introduction.
The sonic inspiration for the in-walls was
development work on the unique M6
loudspeaker released in early 2012. This
tall, conical loudspeaker features a 140mm
bass driver and an 85mm wide-range driver,
and the same drivers are used in different
combinations in the current in-wall systems,
giving them impressive performance on many
DSP In-Wall Loudspeakers

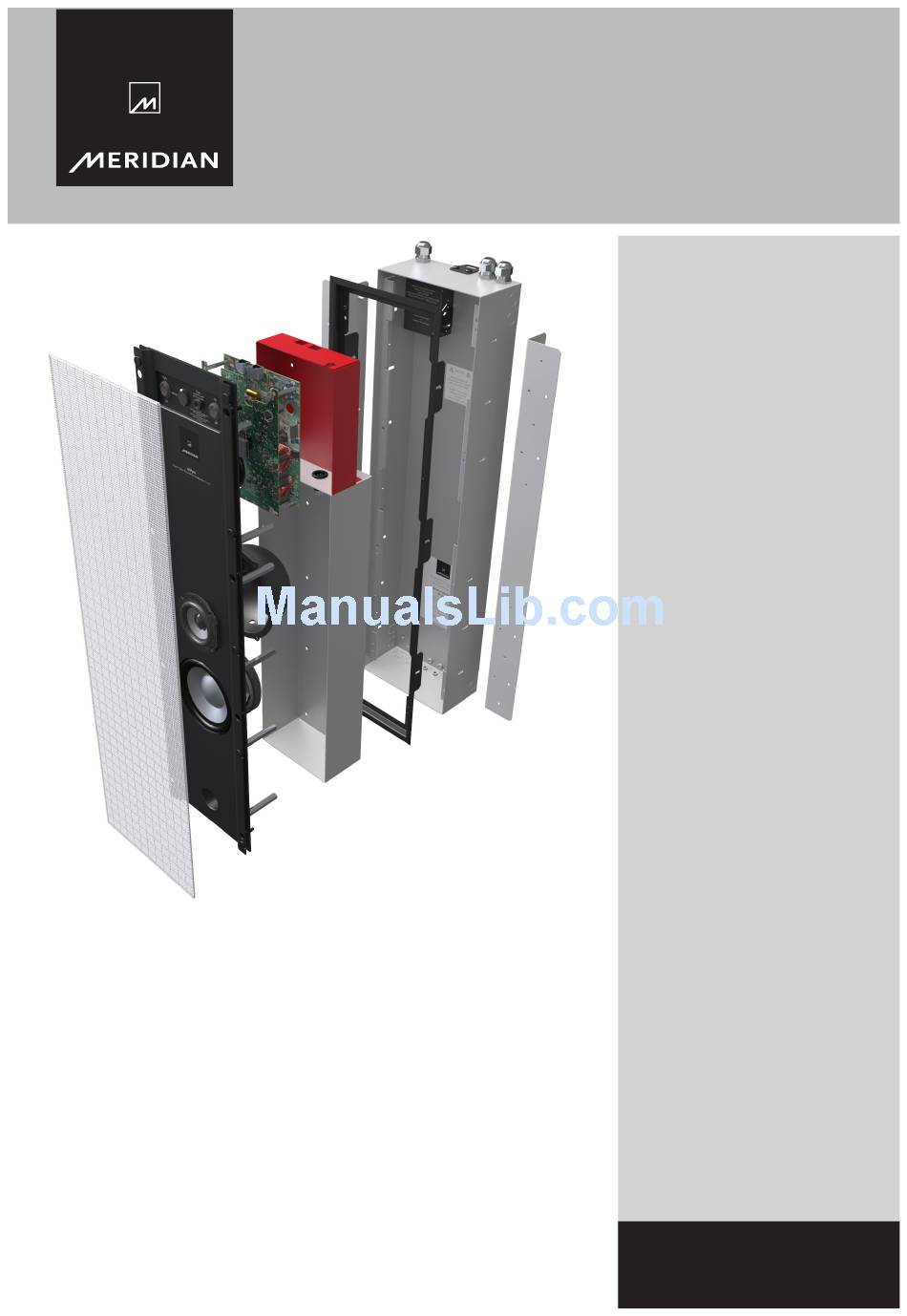

Exploded rendering of the DSP520. The DSP640
includes two bass and two full-range drivers,
while the DSW500 includes dual bass drivers.
levels, including superior mechanical integrity,
increased bass and reduced upper mid-range
colouration.
The range has been launched with the
DSP520, featuring a single wide-range driver
and single bass driver. The larger DSP640
unit includes dual bass and full-range drivers,
while the DSW500 subwoofer includes twin
bass drivers.
The DSP In-wall range has been developed
specifically to deliver wide dispersion for
maximum listening area, with minimum
unwanted diffraction thanks to careful baffle
and grille design. The on-board DSP provides
thermal and dynamic bass protection with
very accurate transients, ensuring that when
the loudspeaker is played at high levels,
even over prolonged periods of time, the
loudspeakers always deliver a clean, detailed
and accurate sound.
DSP520, DSP640 & DSW500
Product highlights
Ultra-narrow (200mm) design
delivers full DSP loudspeaker
performance in-wall
Back-box and frame system allows
simple and easy installation, with
the flexibility to ensure precise
positioning
Loudspeaker array is built into self-
contained enclosure that mounts
into back-box
DSP-based design delivers
superior performance to
conventional designs – equivalent
to an enclosure of eight times the
physical volume.
Features 140mm bass and 85mm
wide-range drivers based on the
M6, for full-frequency response
Two full-range models plus a sub-
woofer for maximum flexibility
All aspects of the design including
baffle and grille have been
developed for maximum dispersion
and listening area plus minimum
unwanted diffraction
Perfect partner for stand-alone
Meridian DSP loudspeakers, with
complementary sound
Grille may be painted to match
interiors
