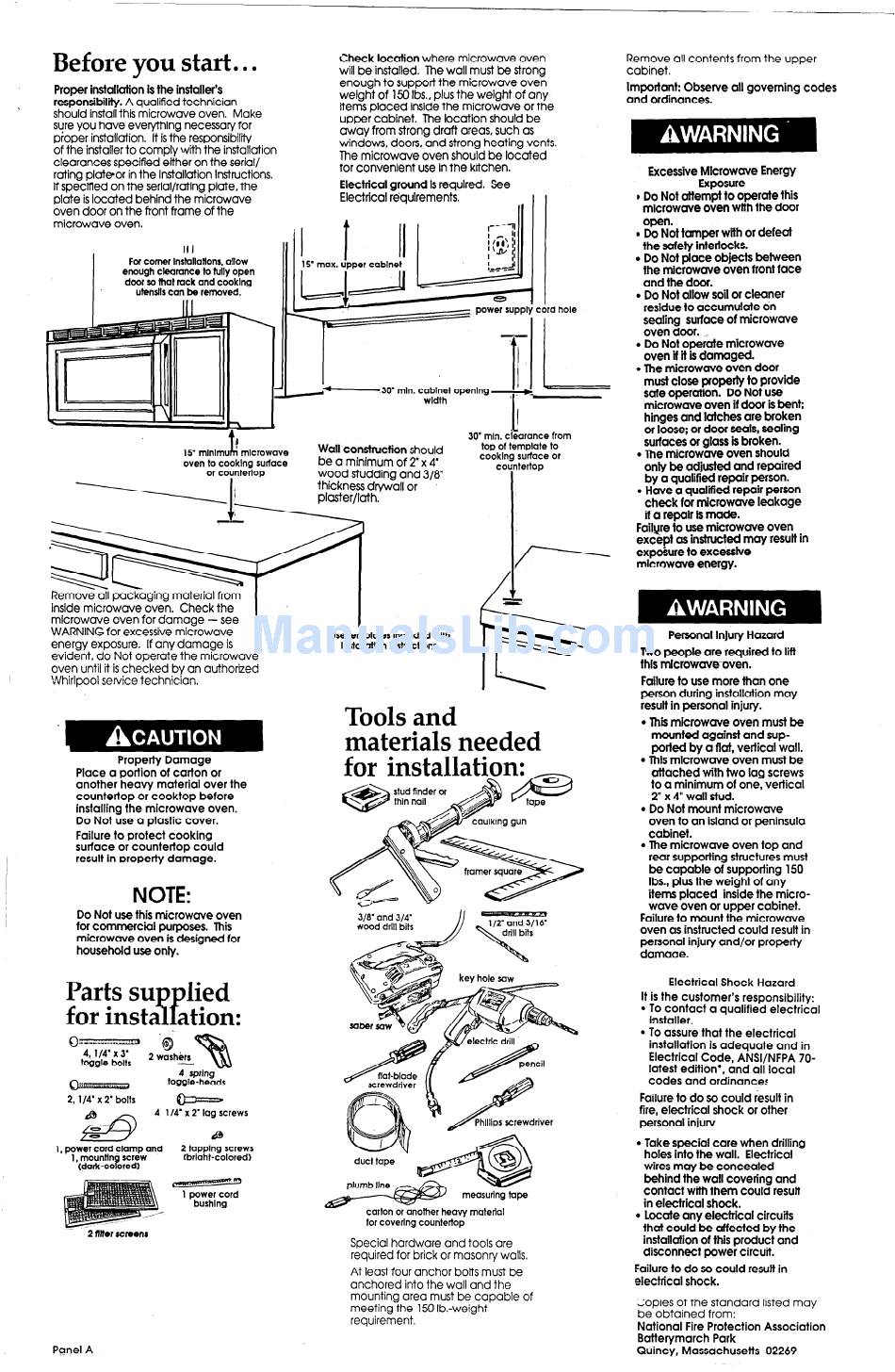

Before you start.. .
Proper installation is the installer's
responsibility.
A qualified
technician
should install this microwave
oven.
Make
sure you have everything
necessary for
proper installation.
It is the responsibility
of the installer to comply with the installation
clearances
specified
either on the serial/
ratina blateor
in the Installation
Instructions.
If sp%fied
on the serial/rating
plate, the
plate is located
behind the microwave
oven door on the front frame of the
microwave
oven.
II I
For comer Installattons, allow
enough clearance to fully open
door so that rack and cooking
utensils can be removed.
Check location
where microwave
oven
will be installed.
The wall must be strong
enough
to support the microwave
oven
welght
of 150 Ibs., plus the welght
of
any
items placed
inslde the microwave
or the
upper cabinet.
The location
should be
away from strong draft areas, such as
windows,
doors, and strong heating
vents.
The microwave
oven should be located
for convenient
use In the kitchen.
Electrical ground
Is required.
See
Electrical
requlrements.
power supply cord hole
I
I
rb-3"'
mln. cabinet openlng
wldth
t 4
15' mlnlmum mlcrowave
oven to cooking surface
or countertop
Wall construction
should
be a minimum
of 2' x 4
wood studding
and 3/8"
thickness drywall or
30' mln. cZaronce
from
top of template to
cooking surface or
countertop
Remove all packaging
material from
inslde microwave
oven.
Check the
mlcrowave
oven for
damage - see
WARNING for excessive microwave
energy exposure.
If any damage
is
evident,
do Not operate
the microwave
oven until it is checked
by an authorized
Whirlpool service technician.
Property Damage
Place a portion of carton or
another heavy material over the
countertop or cooktop before
installing the microwave oven.
Do Not use a plastic cover.
Failure to protect cooking
surface or countertop could
result in oropetty damage.
NOTE:
Do Not use this microwave oven
for commercial purposes. This
microwave oven is designed for
househdd use onty.
4 spring
toggle-heads
2, l/4' x 2' bolts
4 114' x 2' lag screws
ds
1, power cord clamp and
2 tapplng screws
1, mountin
B
screw
rbrlaht-colored)
(dark-co ored)
1 power cord
bushlng
2 nner screens
I
Use templates Included with
lnstallatlon Instructlons.
Tools and
materials needed
for installation:
310' and 314
ffood drill bits
ey hole saw
-
-
flhlllips
screwdriver
&yY&
measuring tape
-
carton or another heavy material
for coverlng countertop
Special hardware
and tools are
required for brick or masonry walls.
At least four anchor baits must be
anchored
into the wall and the
mounting
area must be capable
of
meeting
the 150 lb.-weight
requirement.
Remove all contents
from the upper
cabinet.
Important: Observe all governing codes
and ordinances.
Excesstve Mlcrowave Energy
Exposure
D Do Not attempt to operate this
mlcrowave oven with the door
open.
l
Da Not tamper with or defeat
the safety interlocks.
l
Do Not ptace objects between
the microwave oven front face
and the door.
l
Do Not allow soil or cleaner
residue to accumulate on
sealing surface of microwave
oven door. ,_
l
Do Not operate microwave
oven if it is damaged.
l
The microwave oven door
must close properly to provide
safe operation. Do Not use
microwave oven if door is bent;
hinges and latches are broken
or loose; or door seals, sealing
surfaces or glass is broken.
l
The microwave oven should
only be adjusted and repaired
by a qualifted repair person.
l
Have a qualiied repair wrson
check for microwave leakage
if a repair k made.
Failyre to use microwave oven
except as hstructed may resutt in
exposure to excessiie
microwave energy.
Personal Injury Hazard
Two people are required to lift
thls mlcrowaveoven.
Failure to use more than one
person during installation may
result in personal injury.
l
This microwave oven must be
mounted against and sup-
ported by a flat, vertical wall.
l
This microwave oven must be
attached with two lag screws
to a minimum of one,
vertical
2" x 4" wall stud.
l
Do Not mount microwave
oven to an island or peninsula
cabinet.
l
The microwave oven top and
rear supporting structures must
be capable of supporting 150
Ibs., plus the weight of any
items placed
inside the micro-
wave oven or upper cabinet.
Failure to mount the microwave
oven as instructed could result in
personal injury and/or property
damaae.
Electrical Shock Hazard
It is the customer's responsibility:
l
To contact a qualified electrical
installer.
l
To assure that the electrical
installation is adequate
and
in
Electrical Code, ANSI/NFPA 70-
latest edition*, and all local
codes and ordinance:
Failure to do so could result in
fire, electrical shock or other
personal injurv
l
Take special care when drilling
holes into the wall. Electrical
wires may be concealed
behind the wall covering and
contact with them could result
in electrical shock.
. locate any electrical circuits
that could be affected by the
installation of this product and
disconnect power circuit.
Failure to do so could result in
electrical shock.
LopIes ot tne standard
lrstea may
be obtained
from:
National Fire Protection Association
Batterymarch
Park
Quincy, Massachusetts
02269
Panel A
