HP ProLiant ML310 Generation 5 Quickspecs

Hide thumbs Also See for ProLiant ML310 Generation 5:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Quickspecs
QuickSpecs
Overview

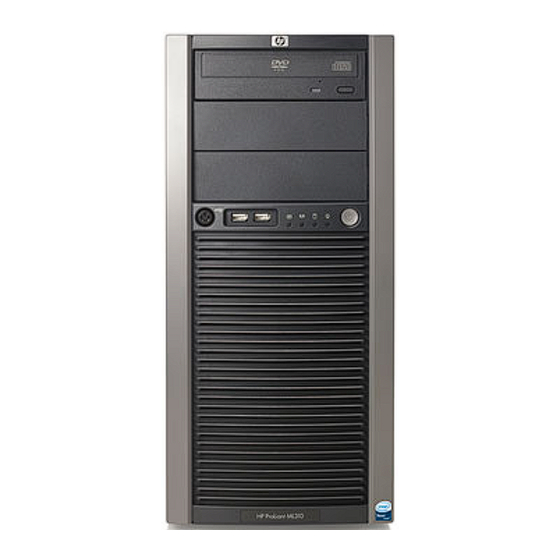

Front View:
Front View:
Front View:
Front View:
1.
SATA DVD-ROM
2.
Removable Media Bays
3.
LED Indicators and Power Button
4.
Upfront USB Ports
5.
Four DIMM Sockets for up to 8GB DDR2 memory
6.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
7.
System Fan
8.
410W Non-Hot Plug Non-Redundant Power Supply or 430W
Hot Plug Redundant Power Supplies
DA - 12858
North America — Version 9 — January 21, 2008
HP ProLiant ML310 Generation 5 (G5)
HP ProLiant ML310 Generation 5 (G5)
HP ProLiant ML310 Generation 5 (G5)
HP ProLiant ML310 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1. Power cord connections for Power Supply 1 & 2
2. Mouse connector
3. Keyboard connector
4. Integrated Lights-Out 2 (iLo2) connector
5. Embedded Gigabit NIC
6. USB 2.0 (qty 2)
7. Serial Port
8. Video Port
9. Up to Five Expansion Slots (Four PCI Express and One PCI-X
(Optional)
Page 1

Advertisement

loading

Related Manuals for HP ProLiant ML310 Generation 5

Summary of Contents for HP ProLiant ML310 Generation 5

  • Page 1 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Overview Front View: Front View: Front View: Front View: Rear View: Rear View: Rear View:...
  • Page 2 Warranty: Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year, with 1 year Next Business Day and year on-site support from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 3: Standard Features

    QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Standard Features NOTE: NOTE: NOTE: NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA1-5499ENW.pdf.
  • Page 4 The supported floppy drive can be a USB drive key, USB floppy drive, half- height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2). NOTE: NOTE: Any Smart Array Controller or SAS HBA requires the purchase of the HP SAS Cable for the NOTE: NOTE: ML310 G5.
  • Page 5 HP Insight Control Environment installs and licenses the following components by default using a wizard- based integrated installer: HP Systems Insight Manager...
  • Page 6 HP ProLiant ML310 Generation 5 (G5) Standard Features HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
  • Page 7 SmartStart version supported (minimum): SmartStart 7.51. Insight Management The Insight Management Agents should be installed on all HP servers to Agents present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The...
  • Page 8 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Standard Features Remote Management Remote Management Remote Management Remote Management Integrated Lights-Out (iLO 2) Management 2...
  • Page 9 Support Matrix at: http://www.hp.com/go/supportos NOTE: NOTE: NOTE: NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML310, please see: http://h18023.www1.hp.com/support/files/server/us/index.html. NOTE: NOTE: NOTE: NOTE: For more Linux OS support & certification information, please visit our the ProLiant &...
  • Page 10 IT and business needs. HP Care Pack services include coverage for the HP branded hardware options qualified for the server that are purchased at the same time or afterward and internal to the enclosure. It also includes the 22- inch and smaller external monitors and tower UPS options up to 3kVA.
  • Page 11 Embedded NC326i Gigabit Server Adapter Storage Controller Storage Controller Storage Controller Storage Controller HP SC40Ge SAS HBA with RAID 0, 1 in a PCIe slot Hard Drives Hard Drives Hard Drives Hard Drives None ship standard (up to 4 hot plug SAS or SATA 3.5" drives supported)
  • Page 12 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Models ML310T05 3075 HP ML310T05 3075 HP ML310T05 3075 HP ML310T05 3075 HP Processor(s) Processor(s)

  • Page 13: Smart Buys

    Network Controller Embedded NC326i Dual Port Gigabit Server Adapter Storage Controller Storage Controller Storage Controller Storage Controller HP SC40Ge SAS HBA with RAID 0, 1 in a PCIe slot Hard Drives Hard Drives Hard Drives Hard Drives None ship standard...

  • Page 14: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 15 HP 8 Internal Port SAS HBA with RAID 347786-B21 NOTE: NOTE: NOTE: NOTE: RAID 0, 1. HP SAS Cable ML310 G5 460310-B21 NOTE: NOTE: Any SAS HBA requires the purchase of the HP SAS Cable ML310 G5 NOTE: NOTE: (460310-B21). Controllers Controllers Controllers Controllers NOTE:...
  • Page 16 Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
  • Page 17 1.44MB Diskette Drive Option Kit 379257-B21 Serial / Parallel Port Kit Serial / Parallel Port Kit Serial / Parallel Port Kit Serial / Parallel Port Kit HP ProLiant Second Serial /Parallel port option kit 401222-B21 Hard Drives Hard Drives Hard Drives Hard Drives...
  • Page 18 SAS Cable HP SAS Cable ML310 G5 460310-B21 NOTE: NOTE: NOTE: NOTE: Any SAS HBA or Smart Array Controller requires the purchase of the HP SAS Cable ML310 G5 (460310-B21). SAS Controllers SAS Controllers SAS Controllers SAS Controllers Smart Array E200 Controller...
  • Page 19 NOTE: Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items: http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect Rack-Mount Tape Drive Enclosures...
  • Page 20 HP D2D Backup System HP StorageWorks D2D110 Backup System EH880A NOTE: NOTE: NOTE: NOTE: 1TB of Disk Storage HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit EH923A NOTE: NOTE: NOTE: NOTE: 1TB of Disk Storage HP StorageWorks D2D120 Backup System...
  • Page 21 HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library AJ033A HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library AJ034A...
  • Page 22 ProLiant Rack Enabling Kit (RoHS Compliant) 417705-B21 NOTE: NOTE: NOTE: NOTE: This is a 5U Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant ML310 servers. NOTE: NOTE: NOTE: NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24"...
  • Page 23 Support Plus Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4458E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Support Plus 24 Support Plus 24 Support Plus 24...
  • Page 24 Standard Memory Standard Memory All HP ProLiant ML310 G5 models ship with unbuffered, ECC PC2-6400 DDR2 SDRAM running at 800MHz. Dual-core models include a single 512 MB DIMM. Quad-core models include a single 1GB DIMM. Factory Integrated Models include the memory capacity of your choice.

  • Page 25: Drive Support

    300GB 3G SAS 15K SP Up to 4 HP SC40Ge SAS HBA with RAID 300GB 3G SAS 15K DP HP 8 Internal Port SAS HBA with RAID 146GB 3G SAS 15K SP HP Smart Array E200/128 BBWC Controller 146GB 3G SAS 15K DP...
  • Page 26 Embedded SATA with integrated SATA RAID 0,1 500GB 1.5G SATA 7.2K HP SC40Ge SAS HBA with RAID 250GB 1.5G SATA 7.2K HP 8 Internal Port SAS HBA with RAID 160GB 1.5G SATA 7.2K HP Smart Array E200/128 BBWC Controller 80GB 1.5G SATA 7.2K...
  • Page 27 Drives, Internal Drives, Internal Drives, Internal NOTE: NOTE: NOTE: NOTE: Recommended. LTO-2 Ultrium 448 SAS HP 8 Internal Port SAS HBA with RAID 347786-B21 LTO-3 Ultrium 920 SAS HP Smart Array E500 Controller 435129-B21 NOTE: NOTE: NOTE: NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support:...
  • Page 28 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Storage 1U Rack-Mount Kit NOTE: NOTE: NOTE: NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support:...

  • Page 29: Technical Specifications

    QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (H x W x D) 17.0 x 7.9 x 24.0 in (43.2 x 20.0 x 61.0 cm)
  • Page 30 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Technical Specifications the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
  • Page 31 QuickSpecs HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) HP ProLiant ML310 Generation 5 (G5) Technical Specifications Block Size Block Size Block Size Block Size 2,048 bytes 2,352 (Mode-0) 2352, 2340, 2336,...
  • Page 32 Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
