INSTALLATION INSTRUCTIONS

ANTIQUITY CADET ® 3 - 1.6 GPF ONE-PIECE TOILET, MODEL 2907
COMPACT CADET ® 3 - 1.6 GPF ONE-PIECE TOILET
COMPACT CADET ® 3 FloWise™ - 1.28 GPF ONE-PIECE TOILET
Model 2568 – Compact Elongated Right Height™ with Seat
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure
your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!

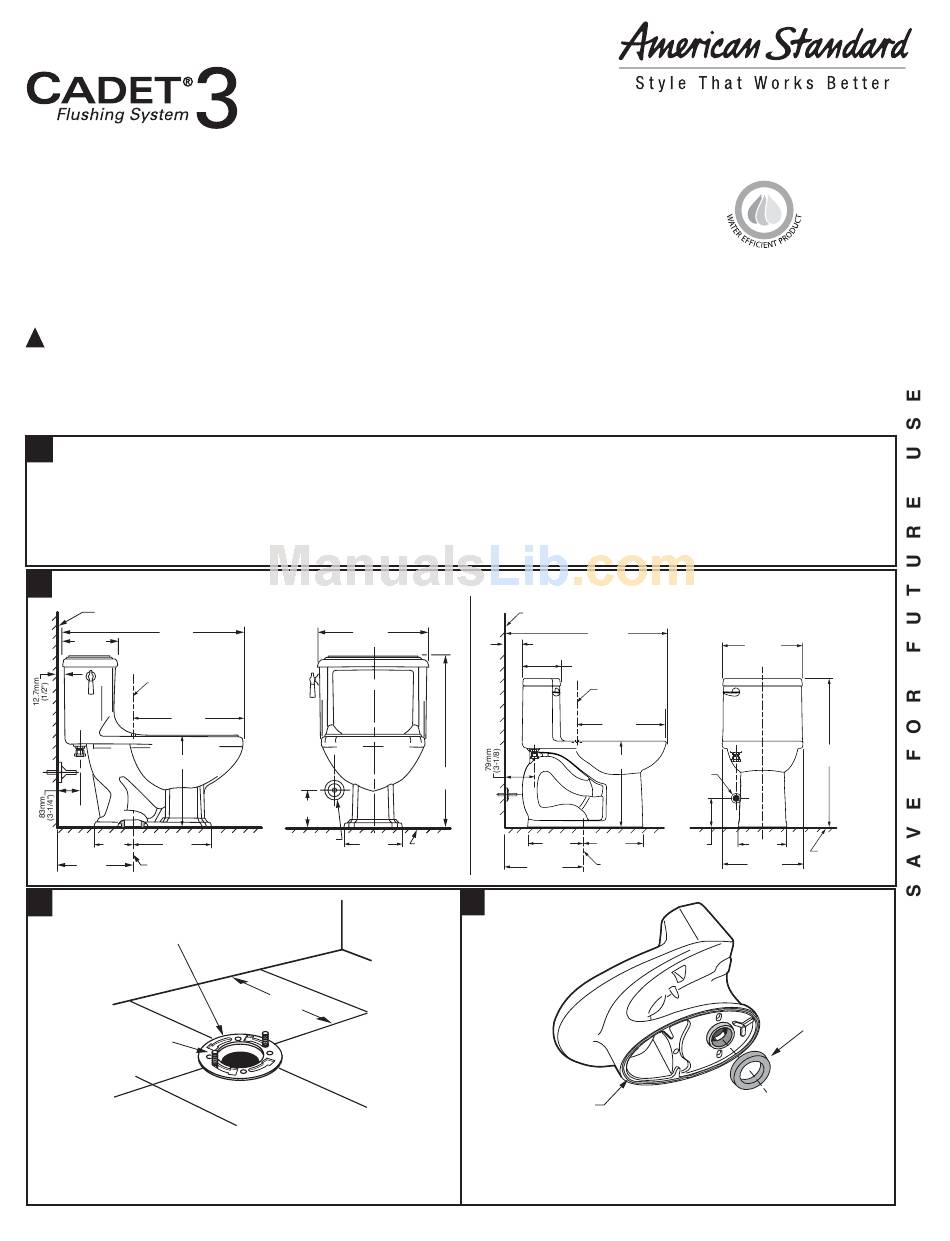

2 ROUGHING-IN DIMENSIONS NOTE: Distance from wall to closet flange centerline must be as listed below:
ANTIQUITY CADET 3
FINISHED WALL
737mm
225mm (29")
(8-7/8")
C/L OF SEAT POST
HOLES 140mm
(5-1/2) CENTERS
462mm
(18-3/16)
419mm
(16-1/2)
235mm 360mm
(9-1/4) (14-3/16)
305mm
C/L OF OUTLET
(12")
3
CLOSET FLANGE
CLOSET BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90 ° , and slide
into place 6" (152 mm) apart and parallel to wall.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 0 9
Adjustable Wrench
Flexible Supply Tube
457mm
(18")
C/L
714mm
(28-1/8")
127mm
(5 " )
C/L OF SUPPLY
276mm
FINISHED
AS REQUIRED
(10-7/8)
FLOOR
A
Sealant
Closet Bolts
COMPACT CADET 3
FINISHED WALL
724mm
(28-1/2)
16 ± 6mm
(5/8 ± 1/4)
159mm
(6-1/4)
C/L OF SEAT
POST HOLES
140mm (5-1/2)
CENTERS
422mm
(16-5/8)
419mm
(16-1/2)
292mm
267mm
(11-1/2)
(10-1/2)
C/L OF OUTLET
305mm
(12)
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and install wax
ring evenly around waste flange (horn), with tapered end of ring
facing toilet. Apply a thin bead of sealant around toilet base.
Tape Measure
Carpenters Level
381mm
(15)
724mm
(28-1/2)
SUPPLY
AS
REQ'D
140mm
* 241mm
FINISHED
(5-1/2)
(9-1/2)
FLOOR
394mm
(15-1/2)
WAX RING
