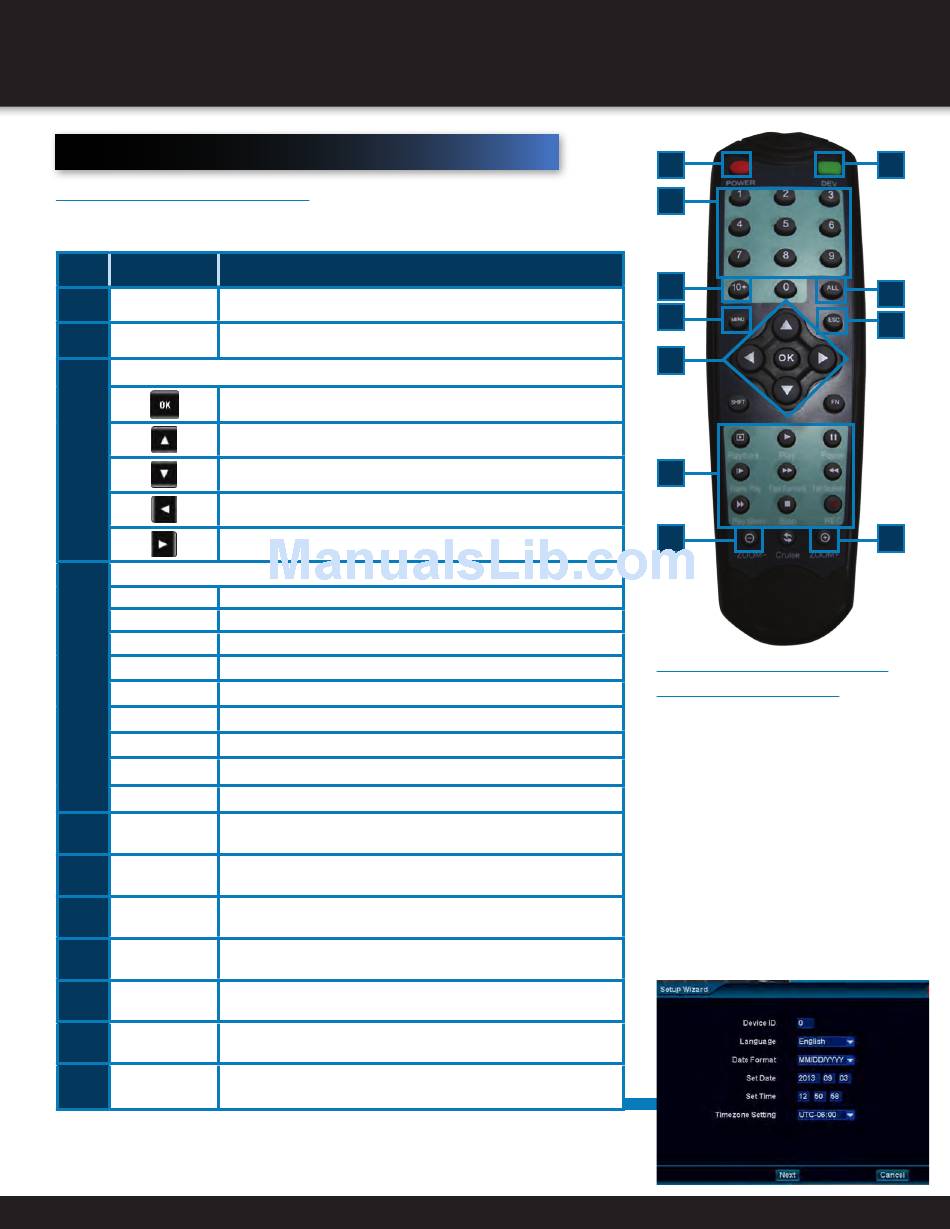

REMOTE CONTROL
Remote Control
Remote Control Operation
The remote control is the secondary input device for navigating the system's interface.
In device operation, the MENU key has the same function as "left click" of the mouse.
i
F
tem
unction
1
Power
Numeric
2
Buttons
NAVIGATION BUTTONS
3
PLAYBACK CONTROLS
Playback
Play
Pause
Frame
4
Fast Forward
Fast Backward
Play Slowly
Stop
Record
5
Zoom –
6
Zoom +
7
Menu
8
All
9
10+
10
ESC
DEV
11
(To use the remote for
more than one DVR)
Any button not identified is not used.
D
eScription
Click power for about 3-5 seconds to shut down the DVR.
Press to Select channel to view; use to input numerical information in
appropriate screens
Press to make selection
Press to cursor up; in PTZ mode, press to pan camera up
Press to move cursor down; in PTZ mode, press to pan camera down
Press to move cursor left; in PTZ mode, press to pan camera left
Press to move cursor right; in PTZ mode, press to pan camera right
Search Recordings
Play Recording (resumes after pause)
Pause Playback in recording mode
Playback by frame
Press to fast forward
Press to fast backward
Press to play video slowly
Press to stop playback
Press to record video (allows to select any or all cameras)
(For PTZ cameras only) Press to zoom out
(For PTZ cameras only) Press to zoom in
Quick access menu
Scroll through different view modes
Press for camera selection of channels 10-16
Exits Page/Command
Allows setting the remote default ID
Page 10
1
2
9
7
3
4
5
Directions for Installing/
Changing Batteries
1. Open battery compartment on back of
Remote and insert (2) Alkaline AAA batteries
(provided.)
2. Ensure all batteries are installed correctly
with regard to polarity (+ and -.)
3. Remove batteries from Remote if it is not to
be used for an extended period of time.
4. Remove used batteries promptly and
replace all batteries of a set at the same
time.
5. Always purchase the correct size and grade
of battery most suitable for intended use.
11
8
10
6
