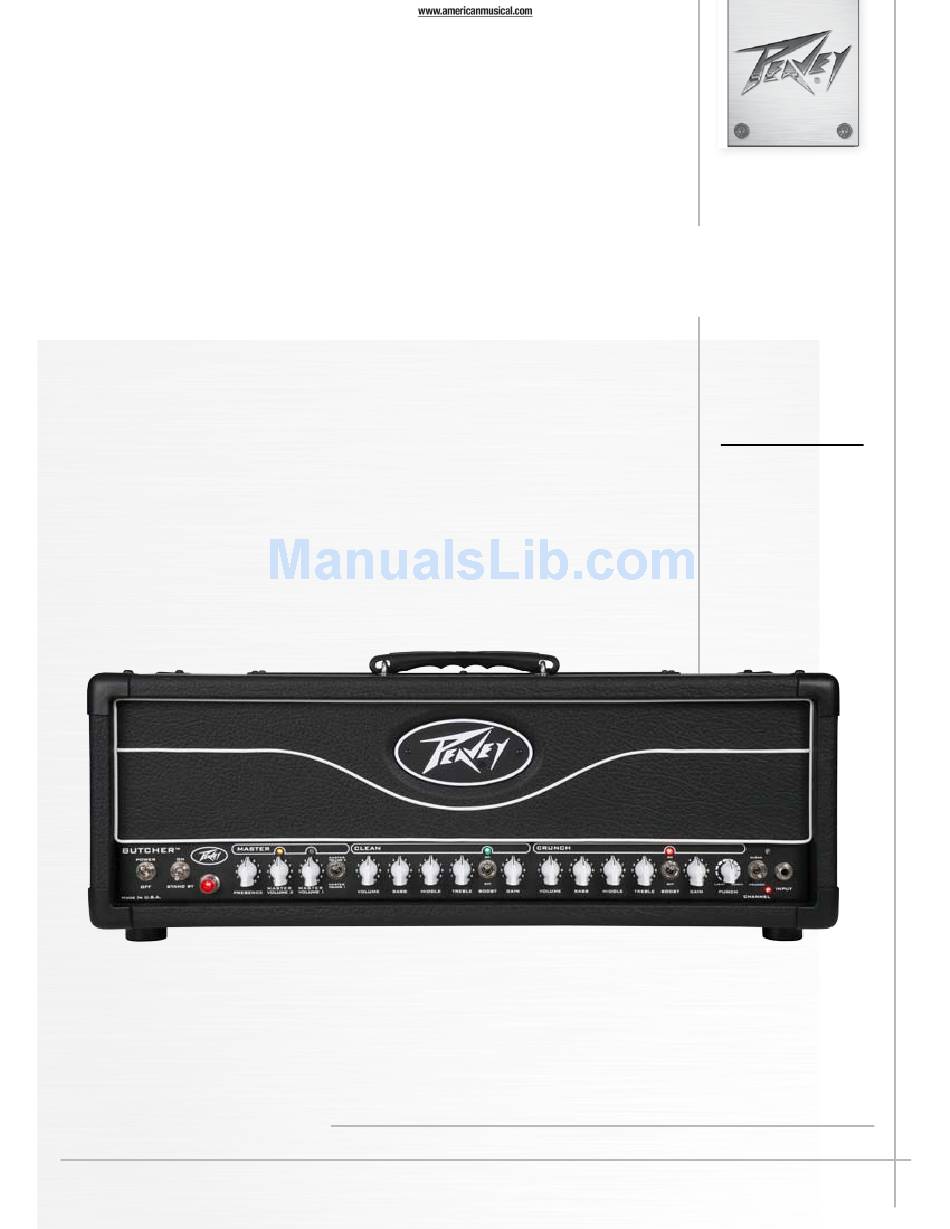

- Page 1 Butcher Guitar ™ Amplifier Operating Manual www.peavey.com...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. - Page 4 This newest Peavey guitar amplifier harkens back to the tones of classic rock while offering unique modern features. The Butcher is a two-channel amplifier with five 12AX7 preamp tubes and four EL34 power amp tubes. Both the Clean and Crunch channels feature independent three-band EQ, plus channel volume and preamp gain controls so guitarists can adjust the interplay between the preamp and power amp on each channel for an array of gain possibilities.
-
Page 5: Master Section
Front Panel POWER SWITCH This two-way toggle switch applies mains power to the unit. The power status lamp (3) will illuminate when this switch is in the ON position. STANDBY SWITCH This two-way toggle switch allows the amp to be placed in the STANDBY mode. In the STANDBY position, the tubes stay hot but the amplifier is not operational. - Page 6 TREBLE This control varies the high-frequency response of the Clean channel. CHANNEL BOOST This switch activates a preamp boost in the Clean channel for a pronounced overdrive. This feature is swit- chable via the footswitch or via MIDI. For a complete list of MIDI commands, please refer to page 12 of this owner's manual.
- Page 7 This eight-pin DIN connector is provided for the connection of the remote footswitch. You must use the in- cluded eight-pin cable, as it supplies power to the footswitch. The Butcher can also be controlled remotely via MIDI using a standard five-pin MIDI cable. For a complete description of the MIDI commands, please refer to page 12 of this owner's manual.
- Page 8 HALF POWER SWITCH The Butcher is equipped with a half-power switch that reduces the maximum output power from 100 watts to 50 watts. 50-watt amplifiers have a different character than 100 watt amplifiers, overdriving more quickly and at slightly lower volumes. This switch is available for you to determine your own personal preferences and can be a versatile tool in the studio as well.
- Page 9 Note: You must use the included eight-pin cable, as it supplies the footswitchwith power. When using an external MIDI source to control the amplifier, a five-pin MIDI cable can be used. Since the Butcher uses MIDI control, changes made to switches on the amplifier will be reflected by the LED's on the footswitch, and vice versa.
-
Page 10: Specifications
Specifications Power Amplifier Section: Rated Power and Load: 100W(rms) into 16, 8 or 4 ohms (selectable impedance) 50W(rms) into 16 or 8 ohms (half-power switch engaged) Hum and Noise: Greater than 90 dB below rated power Power Consumption: Domestic: 300W, 60 Hz, 120 VAC Export: 300W, 50/60 Hz, 220-240 VAC Preamp Section: The following specs are measured @ 1kHz with the controls preset as follows:... - Page 12 BUTCHER™ MIDI IMPLEMENTATION MIDI Channel Select Via System Exclusive: Hex: F0 00 00 1B 14 01 75 ch F7 ... where ch is 00‐0F (MIDI channel 1‐16) Via Butcher footswitch: Hold the last footswitch (Master) for 2 seconds to enter MIDI channel select mode. The LEDs on the first four footswitches will blink. You can then choose MIDI channel 1, 2, 3 or 4 by pressing one of those. You can also press Master again to cancel the operation. MIDI CC (Continuous Controller) Hex: Bn (CC) (DATA) (n=chan‐1) Data: any Clean Channel no other changes (same as preset 0) Crunch Channel no other changes (same as preset 1) Data: 00‐3F Data: 40‐7F (Decimal 0‐63) (Decimal 64‐127) Clean Channel Crunch Channel Boost OFF * Boost ON * * active channel Clean Boost OFF Clean Boost ON (won't change chan) Crunch Boost OFF Crunch Boost ON (won't change chan) Master 1 Master 2 Effects Loop OFF Effects Loop ON MIDI PROGRAM...
- Page 13 What Peavey Will Do We will repair or replace (at Peavey’s discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.
- Page 14 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005 The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005...
- Page 16 NOTES...
