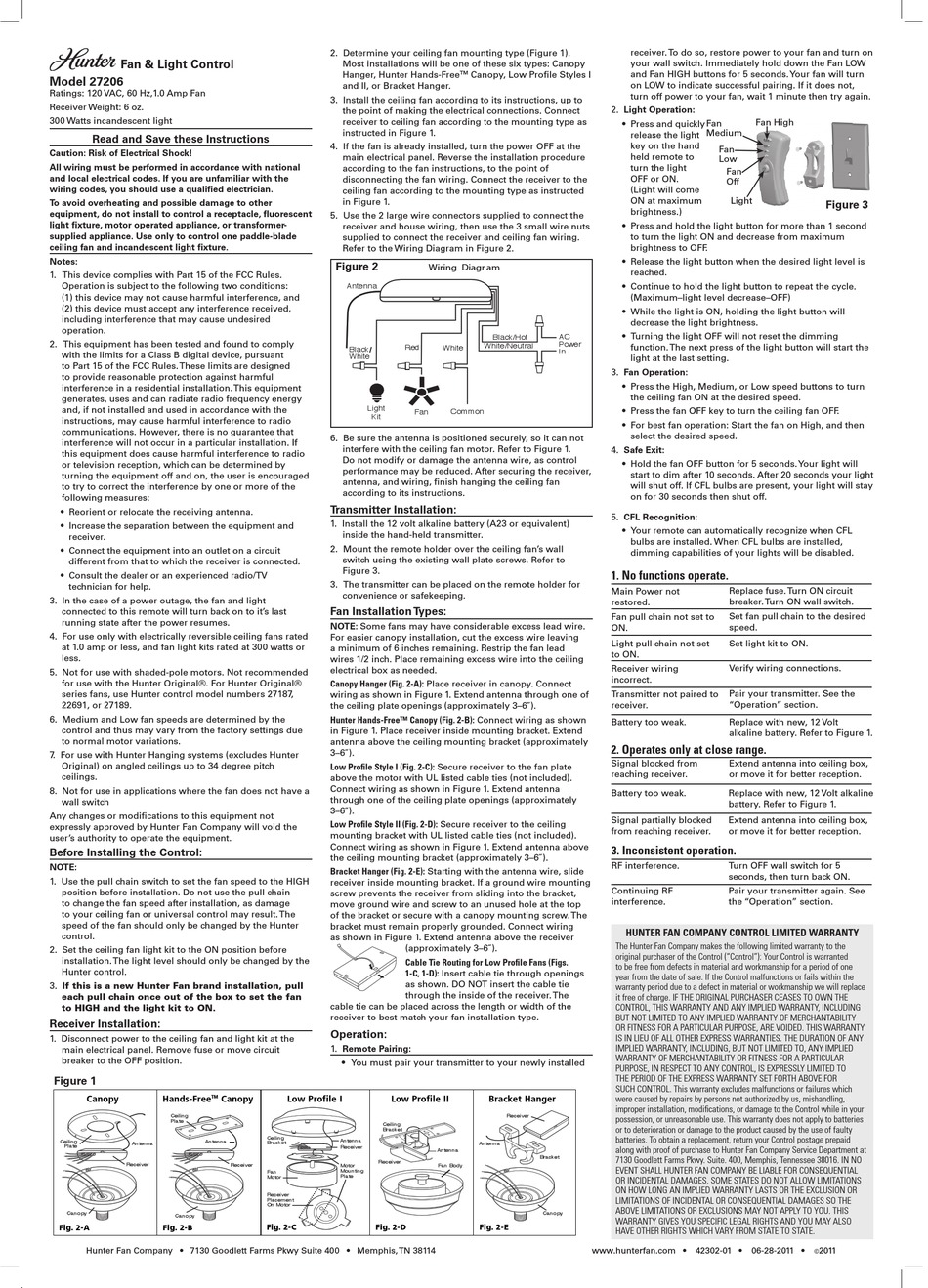

Hunter 27206 Instruction Manual

Fan & Light Control
Model 27206
Ratings: 120 VAC, 60 Hz,1.0 Amp Fan
Receiver Weight: 6 oz.
300 Watts incandescent light
Read and Save these Instructions
Caution: Risk of Electrical Shock!
All wiring must be performed in accordance with national
and local electrical codes. If you are unfamiliar with the
wiring codes, you should use a qualified electrician.
To avoid overheating and possible damage to other
equipment, do not install to control a receptacle, fluorescent
light fixture, motor operated appliance, or transformer-
supplied appliance. Use only to control one paddle-blade
ceiling fan and incandescent light fixture.
Notes:
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
2. This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
3. In the case of a power outage, the fan and light
connected to this remote will turn back on to it's last
running state after the power resumes.
4. For use only with electrically reversible ceiling fans rated
at 1.0 amp or less, and fan light kits rated at 300 watts or
less.
5. Not for use with shaded-pole motors. Not recommended
for use with the Hunter Original®. For Hunter Original®
series fans, use Hunter control model numbers 27187,
22691, or 27189.
6. Medium and Low fan speeds are determined by the
control and thus may vary from the factory settings due
to normal motor variations.
7. For use with Hunter Hanging systems (excludes Hunter
Original) on angled ceilings up to 34 degree pitch
ceilings.
8. Not for use in applications where the fan does not have a
wall switch
Any changes or modifications to this equipment not
expressly approved by Hunter Fan Company will void the
user's authority to operate the equipment.
Before Installing the Control:
NOTE:
1. Use the pull chain switch to set the fan speed to the HIGH
position before installation. Do not use the pull chain
to change the fan speed after installation, as damage
to your ceiling fan or universal control may result. The
speed of the fan should only be changed by the Hunter
control.
2. Set the ceiling fan light kit to the ON position before
installation. The light level should only be changed by the
Hunter control.
3. If this is a new Hunter Fan brand installation, pull
each pull chain once out of the box to set the fan
to HIGH and the light kit to ON.
Receiver Installation:
1. Disconnect power to the ceiling fan and light kit at the
main electrical panel. Remove fuse or move circuit
breaker to the OFF position.
Figure 1
Figure 2
Canopy Hands-Free Canopy
TM
Ceiling
Plate
Ceiling Antenna
Antenna
Plate
Receiver
Canopy
Canopy
Fig. 2-A Fig. 2-B
Hunter Fan Company • 7130 Goodlett Farms Pkwy Suite 400 • Memphis, T N 38114
2. Determine your ceiling fan mounting type (Figure 1).
Most installations will be one of these six types: Canopy
Hanger, Hunter Hands-Free
and II, or Bracket Hanger.
3. Install the ceiling fan according to its instructions, up to
the point of making the electrical connections. Connect
receiver to ceiling fan according to the mounting type as
instructed in Figure 1.
4. If the fan is already installed, turn the power OFF at the
main electrical panel. Reverse the installation procedure
according to the fan instructions, to the point of
disconnecting the fan wiring. Connect the receiver to the
ceiling fan according to the mounting type as instructed
in Figure 1.
5. Use the 2 large wire connectors supplied to connect the
receiver and house wiring, then use the 3 small wire nuts
supplied to connect the receiver and ceiling fan wiring.
Refer to the Wiring Diagram in Figure 2.
Figure 2
Figur e 3
Antenna
Black /
White
Light
Kit
6. Be sure the antenna is positioned securely, so it can not
interfere with the ceiling fan motor. Refer to Figure 1.
Do not modify or damage the antenna wire, as control
performance may be reduced. After securing the receiver,
antenna, and wiring, finish hanging the ceiling fan
according to its instructions.

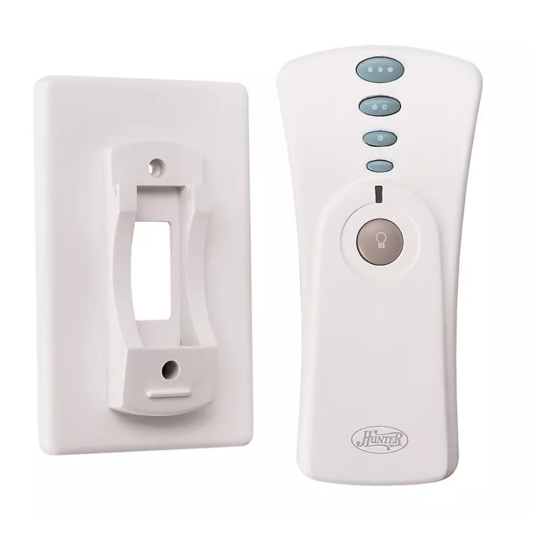

Transmitter Installation:
1. Install the 12 volt alkaline battery (A23 or equivalent)
inside the hand-held transmitter.
2. Mount the remote holder over the ceiling fan's wall
switch using the existing wall plate screws. Refer to
Figure 3.
3. The transmitter can be placed on the remote holder for
convenience or safekeeping.
Fan Installation Types:
NOTE: Some fans may have considerable excess lead wire.
For easier canopy installation, cut the excess wire leaving
a minimum of 6 inches remaining. Restrip the fan lead
wires 1/2 inch. Place remaining excess wire into the ceiling
electrical box as needed.
Canopy Hanger (Fig. 2-A): Place receiver in canopy. Connect
wiring as shown in Figure 1. Extend antenna through one of
the ceiling plate openings (approximately 3–6˝).
Hunter Hands-Free™ Canopy (Fig. 2-B): Connect wiring as shown
in Figure 1. Place receiver inside mounting bracket. Extend
antenna above the ceiling mounting bracket (approximately
3–6˝).
Low Profile Style I (Fig. 2-C): Secure receiver to the fan plate
above the motor with UL listed cable ties (not included).
Connect wiring as shown in Figure 1. Extend antenna
through one of the ceiling plate openings (approximately
3–6˝).
Low Profile Style II (Fig. 2-D): Secure receiver to the ceiling
mounting bracket with UL listed cable ties (not included).
Connect wiring as shown in Figure 1. Extend antenna above
the ceiling mounting bracket (approximately 3–6˝).
Bracket Hanger (Fig. 2-E): Starting with the antenna wire, slide
receiver inside mounting bracket. If a ground wire mounting
screw prevents the receiver from sliding into the bracket,
move ground wire and screw to an unused hole at the top
of the bracket or secure with a canopy mounting screw. The
bracket must remain properly grounded. Connect wiring
as shown in Figure 1. Extend antenna above the receiver
cable tie can be placed across the length or width of the
receiver to best match your fan installation type.
Operation:
1. Remote Pairing:
• You must pair your transmitter to your newly installed
Low Profile I Low Profile II
Ceiling
Bracket
Ceiling
Antenna
Bracket
Receiver
Receiver
Receiver
Motor
Mounting
Fan
Plate
Motor
Receiver
Placement
On Motor
Fig. 2-C Fig. 2-D
Canopy, Low Profile Styles I
TM
Wiring Diagr am
AC
Black/Hot
Power
White/Neutral
Red White
In
Common
Fan
(approximately 3–6˝).
Cable Tie Routing for Low Profile Fans (Figs.
1-C, 1-D): Insert cable tie through openings
as shown. DO NOT insert the cable tie
through the inside of the receiver. The
Bracket Hanger
Receiver
Antenna
Antenna
Bracket
Fan Body
Canopy
Fig. 2-E
receiver. To do so, restore power to your fan and turn on
your wall switch. Immediately hold down the Fan LOW
and Fan HIGH buttons for 5 seconds. Your fan will turn
on LOW to indicate successful pairing. If it does not,
turn off power to your fan, wait 1 minute then try again.
2. Light Operation:
Fan High
Fan
• Press and quickly
Medium
release the light
key on the hand
Fan
held remote to
Low
turn the light
Fan
OFF or ON.
Off
(Light will come
ON at maximum Light
brightness.)
• Press and hold the light button for more than 1 second
to turn the light ON and decrease from maximum
brightness to OFF .
• Release the light button when the desired light level is
reached.
• Continue to hold the light button to repeat the cycle.
(Maximum–light level decrease–OFF)
• While the light is ON, holding the light button will
decrease the light brightness.
• Turning the light OFF will not reset the dimming
function. The next press of the light button will start the
light at the last setting.
3. Fan Operation:
• Press the High, Medium, or Low speed buttons to turn
the ceiling fan ON at the desired speed.
• Press the fan OFF key to turn the ceiling fan OFF .
• For best fan operation: Start the fan on High, and then
select the desired speed.
4. Safe Exit:
• Hold the fan OFF button for 5 seconds. Your light will
start to dim after 10 seconds. After 20 seconds your light
will shut off. If CFL bulbs are present, your light will stay
on for 30 seconds then shut off.
5. CFL Recognition:
• Your remote can automatically recognize when CFL
bulbs are installed. When CFL bulbs are installed,
dimming capabilities of your lights will be disabled.
1. No functions operate.
Main Power not Replace fuse. Turn ON circuit
breaker. Turn ON wall switch.
restored.
Set fan pull chain to the desired
Fan pull chain not set to
ON. speed.
Set light kit to ON.
Light pull chain not set
to ON.
Receiver wiring Verify wiring connections.
incorrect.
Pair your transmitter. See the
Transmitter not paired to
"Operation" section.
receiver.
Battery too weak. Replace with new, 12 Volt
alkaline battery. Refer to Figure 1.
2. Operates only at close range.
Signal blocked from Extend antenna into ceiling box,
reaching receiver. or move it for better reception.
Battery too weak. Replace with new, 12 Volt alkaline
battery. Refer to Figure 1.
Signal partially blocked Extend antenna into ceiling box,
from reaching receiver. or move it for better reception.
3. Inconsistent operation.
RF interference. Turn OFF wall switch for 5
seconds, then turn back ON.
Continuing RF Pair your transmitter again. See
interference. the "Operation" section.
HUNTER FAN COMPANY CONTROL LIMITED WARRANTY
The Hunter Fan Company makes the following limited warranty to the
original purchaser of the Control ("Control"): Your Control is warranted
to be free from defects in material and workmanship for a period of one
year from the date of sale. If the Control malfunctions or fails within the
warranty period due to a defect in material or workmanship we will replace
it free of charge. IF THE ORIGINAL PURCHASER CEASES TO OWN THE
CONTROL, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY
IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY
IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IN RESPECT TO ANY CONTROL, IS EXPRESSLY LIMITED TO
THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR
SUCH CONTROL. This warranty excludes malfunctions or failures which
were caused by repairs by persons not authorized by us, mishandling,
improper installation, modifications, or damage to the Control while in your
possession, or unreasonable use. This warranty does not apply to batteries
or to deterioration or damage to the product caused by the use of faulty
batteries. To obtain a replacement, return your Control postage prepaid
along with proof of purchase to Hunter Fan Company Service Department at
7130 Goodlett Farms Pkwy. Suite. 400, Memphis, Tennessee 38016. IN NO
EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE
ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
www.hunterfan.com • 42302-01 • 06-28-2011 •
Figure 3
2011
©
