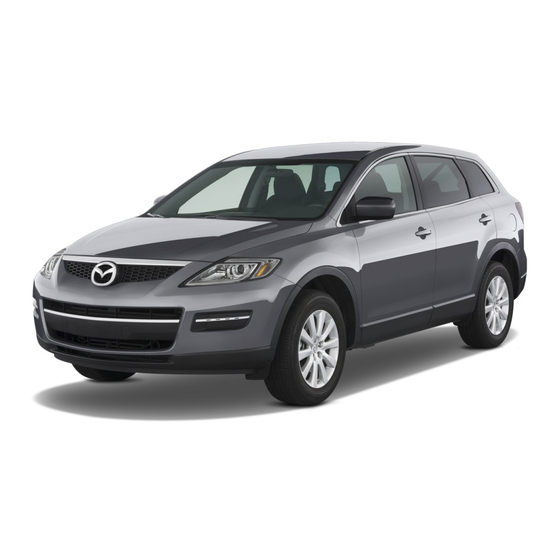

Mazda 2009 CX-9 Smart Start Manual

2009 mazda cx-9
Hide thumbs Also See for 2009 CX-9:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Optional equipment shown.
162131_09a_CX-9_SSG_081208.indd 1
8/12/08 11:51:28 AM

Advertisement

Table of Contents
loading

Related Manuals for Mazda 2009 CX-9

Summary of Contents for Mazda 2009 CX-9

  • Page 1 Optional equipment shown. 162131_09a_CX-9_SSG_081208.indd 1 8/12/08 11:51:28 AM...

  • Page 2: Advanced Keyless Entry System

    ADVANCED KEYLESS Advanced Key ENTRY SYSTEm • Advanced Keyless Entry allows you to Lock lock/unlock the doors and liftgate of Panic the vehicle, and even start the engine Alarm without ever taking the key out of Unlock your pocket. While carrying the Advanced Key you can… • U nlock the vehicle by pressing the driver’s door request switch. Auxiliary Key • U nlock all doors by pressing the driver’s door request switch twice OR by pressing the unlock button on the keyless entry transmitter twice OR...

  • Page 3: Power Liftgate Switch

    STARTING ThE ENGINE wITh ThE ADVANCED KEY While carrying the Advanced Key you can... • S tart the engine by pushing the Start knob all the way in. When the KEY indicator light illuminates green, turn the Start knob from the ACC position to the START position and hold until the engine starts. • S hut the engine OFF by turning the Start knob to the ACC position and then pressing in and turning to the LOCK position. • T he KEY indicator light will show green when the advanced key is detected. If the indicator light flashes green, the advanced key transmitter battery power is low. Note: Emergency Vehicle Entry/Engine Start If advanced key cannot be used due to a malfunction or dead advanced key battery, use the auxiliary key to lock/unlock doors and to start the engine. To start vehicle, remove start knob cover by pressing both side release buttons while pulling. Insert auxiliary key into key cylinder and turn to start engine.

  • Page 4: Fuel Door Release

    Seats FUEL DooR RELEASE (Located on floor inside driver’s side door) Pull up to open fuel door. ELECTRoNICALLY oPERATED DRIVER SEAT Recline Switch P ush forward or backward to adjust seatback angle. Slide/Tilt Switch Push forward or backward to slide the seat bottom. The seat can also be raised, lowered or tilted with this control. memory Seat Switch Lumbar Switch To increase the seat firmness, press and hold the front part of the switch to the desired position, then release it. Press the...
  • Page 5 SPLIT FoLDING ThIRD-Row SEAT To create a flat luggage compartment space, fold the seatbacks forward. 1 Open the liftgate. 2 L ower the headrests. 3 P ull the strap on the rear of the seat while pushing the seat forward to lay flat. To Return to the original Position P ull the strap to return the seatback to the original position. Third-Row Seat Access Pull the third-row seat access lever on the side of the second-row seatback to fold and slide the seat forward to access third-row seating. Return the second-row seat to the normal position Lever to fold by folding the back upright.

  • Page 6: Driver's View

    Driver’s View (shown with optional LIGhTING/ TURN SIGNAL BLIND SPoT moNIToRING (BSm) PowER LIFTGATE SwITCh hEADLIGhT LEVELING TRACTIoN CoNTRoL SYSTEm (TSC) hooD RELEASE BLUETooTh VoICE ® TILT STEERING hANDLE RECoGNITIoN/AUDIo whEEL LEVER 162131_09a_CX-9_SSG_081208.indd 6 8/12/08 11:52:25 AM...
  • Page 7 Navigation System) wIPER/ hAzARD INFoRmATIoN NAVIGATIoN/ wAShER wARNING DISPLAY AUDIo AUDIo SYSTEm wIThoUT NAVIGATIoN CRUISE CoNTRoL/ AUxILIARY CLImATE CoNTRoL NAVIGATIoN VoICE PowER PoINT RECoGNITIoN 162131_09a_CX-9_SSG_081208.indd 7 8/12/08 11:52:33 AM...

  • Page 8: Instrument Cluster

    Instrument Cluster INSTRUmENT CLUSTER FUEL GAUGE GEAR INDICAToR TAChomETER DImmER SELECT BUTToN GLoSSARY oF wARNING AND INDICAToR LIGhTS Please see Owner’s Manual for more details and explanations. Low Fuel Tire Pressure monitoring System (TPmS) KEY warning Light Advanced key not TCS oFF (RED) detected or transmitter battery (Traction Control System)
  • Page 9 oDomETER/ ENGINE CooLANT oDomETER/ SPEEDomETER TRIP mETER TEmPERATURE GAUGE TRIP mETER SELECToR Turn Signals/ hazard warning Flashing lamp indicates high temperature differential oil, illuminated lamp headlight high Beam indicates an abnormality with AWD system; dealer Automatic Transmission inspection required. TCS/DSC Seat Belts (Traction Control System/ Dynamic Stability Control) Cruise main Indicator Light /Cruise Set (AmBER)

  • Page 10: Feature Highlights

    Feature Highlights wINDShIELD wIPER/wAShER • M IST-Push lever up for a single swipe to clear mist. • A UTO-With the windshield wiper lever in the AUTO position, the rain sensor senses the amount of rainfall and turns the wiper on or off automatically. Rotate the ring away from you (clockwise) for less sensitivity and toward you (counterclockwise) for more sensitivity. • LO-Push down to second position. • HI-Push down to third position. • Pull the lever toward you will dispense washer fluid and the wipers will make several passes across windshield. Less sensitive more sensitive Rear window wiper/washer • Rotate the rear window wiper and washer control to the desired speed. oFF = OFF = Intermittent = Normal speed = Rear wash/wiper cycle, hold as desired. 162131_09a_CX-9_SSG_081208.indd 10 8/12/08 11:52:58 AM...
  • Page 11 TURN SIGNAL/LIGhTING CoNTRoL LEVER • R otate the outer knob up to the first position for AUTO. • R otate the outer knob up to the second position for tail, parking, and dashboard lights. • R otate the outer knob up to the third position for tail, parking, dashboard and headlights. • Rotate the inner ring for fog lamps. • P ush the lever away from you to turn the high beams on. • P ull the lever back one position to turn the high beams off. • P ull the lever all the way back and release to flash the high beams. outer Knob Inner Ring AUTo With the headlight switch in AUTO position and the ignition ON, the light sensor determines the surrounding lightness or darkness and automatically turns the headlights, other exterior lights and dashboard illumination on or off. SPoRT AT mANUAL ShIFT moDE The Sport AT Manual Shift Mode gives you the feel of driving a manual transmission by allowing you to manually shift to control engine rpm and...

  • Page 12: Auto-Dimming Mirror

    Feature Highlights Indicator Light Light Sensor Auto-Dimming on and off AUTo-DImmING mIRRoR • A uto-Dimming will automatically darken your rear view mirror to reduce headlight glare from vehicles behind you. • T he Auto-Dimming feature is active when the vehicle is started and cancels when the transmission in placed in Reverse. mP3 PLAYER INTEGRATIoN USING ThE AUx JACK Your vehicle is equipped with an AUX or auxiliary jack that will allow you to play your MP3 player through the vehicle’s audio system. 1 The jack is located inside the center console. 2 P lug your MP3 player in and turn it on. 3 T urn the audio system on. 4 P ress the AUX button on the audio face, or the Mode button on the steering wheel controls.
  • Page 13 BLIND SPoT moNIToRING SYSTEm (BSm) The Blind Spot Monitoring or BSM system is designed to assist the driver by monitoring the blind spots to the rear of the vehicle on both sides. • I f your vehicle speed is 20 mph (32 km/h) or more, the BSM will warn you of vehicles in the detection area by illuminating the BSM warning lights located on the left and right door mirrors. • I f you operate a turn signal in the direction of an illuminated BSM warning light, the system will also warn you with a beeping sound and warning light flash.

  • Page 14: Automatic Climate Control

    Automatic Climate Control Information Display Automatic Dual-zone Climate Control operation 1 Press AUTO to turn the front air conditioning on. 2 R otate A/C / MODE dial to the desired cabin air temperature setting (shown in the Information Display above). 3 R otate the DUAL/OUTSIDE dial (passenger’s temperature control) to the desired cabin air temperature setting (system will switch to dual climate control operation, the DUAL indicator will illuminate and passenger temperature setting will be displayed on the right-hand of the Information Display in this mode). 4 Press OFF to turn the climate control system off. Information Display Functions • D river’s Temperature • B luetooth Hands-Free ® • C limate Control • O utside/Passenger Temperature...
  • Page 15 Press to manually turn Press to defrost the REAR air conditioning ON or rear window. OFF while climate control Press to turn heated seats system is on. ON and OFF. Press to select the moDE Press to allow control from REAR desired airflow mode. CoNTRoL the rear controls. Press to turn climate oUTSIDE Rotate dial to turn the control system off. system ON and to select Press to display the desired fan speed. outside temperature. Press to allow separate DUAL Press to defrost driver/passenger FRoNT the windshield. temperature control. Rear Climate Control operation 1 Turn the front air conditioning on.

  • Page 16: Manual Tuning

    Audio Controls Without Navigation Audio System oN Tuning • P ush POWER/VOLUME to The radio has the following turn the radio on. tuning controls: • MANUAL media selection • TRACK/SEEK Press the appropriate button: • SCAN • FM/AM • PRESET CHANNEL • SAT (SIRIUS Satellite radio) • AUTO-M • CD manual tuning • A UX (to switch to AUX jack input or RSES—Rear Seat • T urning the TUNE dial will Entertainment System)

  • Page 17: Scan Tuning

    SETTING YoUR CLoCK 1. T urn the ignition switch to the ACC or ON position 2. P ress and hold the CLOCK button until displayed time flashes. 3. P ress and hold the H (hours) button to the correct hour. 4. P ress and hold the M (minutes) button to the correct minute. Scan tuning Info • P ress the SCAN button Press to display the trip computer in to automatically sample place of the clock. The trip computer strong stations.
  • Page 18 Audio Controls With Navigation manual tuning Audio System oN • P ress the POWER/VOLUME • T urn the TUNE/AUDIO dial button to turn the radio on. to change the frequency higher or lower. Source Press the appropriate button: Seek/Track tuning • FM/AM • P ress and hold the • DISC SEEK/TRACK buttons to • SAT (SIRIUS Satellite radio) automatically seek a higher or lower frequency or track, • A UX1/2 (to switch to AUX depending on media selected.
  • Page 19 SETTING YoUR CLoCK 1. Press the MENU button. 2. Select the Set Clock tab. 3. C hoose a 24-hour display or a 12-hour display. 4. U se the + hour and - hour tabs to enter the correct hour. 5. U se the +30 min (minutes) and -30 min to move minutes ahead or back by 30 minutes. 6. Press the OK tab to exit. 7. gPS automatically sets the clock, however, it may be necessary to adjust hours in different time zones or daylight saving time. Info • T o set a channel, first press the source button. Then select Press to display the trip computer in A M, FM1, FM2, SAT1, SAT2 place of the clock. The trip computer or SAT3. Tune to the can display:...

  • Page 20: Navigation System

    Navigation System (inserting disc/selecting destination) INSERTING ThE mAP DISC: Disc A Disc B DISC A DISC B Insert map disc into lower DVD slot Your navigation system operates using the map discs supplied. • D isc A covers most of the Midwest and Western states including Hawaii and Alaska. • D isc B covers some of the Midwest and all of the Eastern states including Puerto Rico. • Both discs cover all of Canada. Note: If the state your address is in is not displayed when entering a destination, you may have the wrong disc in the navigation system. 1 To insert a disc, place the ignition in the ACC or ON position.
  • Page 21 SELECTING A DESTINATIoN USING A STREET ADDRESS You can choose setting a destination using a street address, a point of interest, the nearest restaurants, ATMs, gas stations, hospitals and more. 1 Press “Menu” button on Navigation Face. 2 Select “Destination Entry”. 3 Select “Address”. 4 Select the “State” or “Province”. • Scroll down past the States to find Canadian Provinces. 5 Press “OK”. 6 Select “City”. 7 Select “Input City Name”. 8 Use the keyboard to enter the city name. 9 Select “Street”. 10 Use the keyboard to enter the street name. 11 Select “House No”. 12 U se the keyboard to enter the house number, then press “OK”. 13 W hen the map appears press “Destination”. 14 P ress “guide” or just start driving.
  • Page 22 Bluetooth ® without Navigation System (Refer to your Owner’s Manual for Bluetooth with Navigation operations) PAIRING YoUR BLUETooTh PhoNE ® Note: Before pairing your cell phone, it is recommended that you refer to your phone’s manual for steps to turn on Bluetooth and perform phone ® pairing. These steps will be required to perform steps 7-8 below. Press located on the steering wheel. 2 From the options and after the beep say, “Set-up”. 3 F rom the next prompt options after the beep, say, “Pairing options”. 4 T he prompt will give you some more options. After the beep, say, “Pair”. 5 T he prompt will ask you for a 4-digit pairing code. After the beep, say any 4-digit code you’d like to use. 6 T he prompt will repeat the number and ask if it is correct. After the beep, say, “Yes” if it is or “No” if it isn’t. If it’s not, the system will repeat the process.
  • Page 23 MyMazda.com—The Official Site for Mazda Owners Register today on MyMazda.com—the ultimate destination for Mazda Owners. Once registered, you’ll be able to take advantage of benefits exclusively for Mazda Owners: • I nsider access to exclusive events and promotions • Personalized maintenance schedules • Zoom-Zoom Owner Magazine • W arranty information and on-line Owner’s Manuals • Wallpaper, videos and other fun stuff...
  • Page 24 Customer Delivery Checklist VEhICLE PRESENTATIoN: Refer to the Smart Start Guide during presentation Keyless Entry ....... wiper / washer ......• K eyless Transmitter • A dvanced Key* • D oor Request Switches* • Liftgate Request Switch* • Power Door Locks AUx Input ........Blind Spot monitoring ....Starting The Engine ......

  • Page 25: Warranty Information

    Customer Delivery Checklist DEALERShIP DATE SALES CoNSULTANT CUSTomER’S NAmE E-mAIL PRESENTATIoN oF owNER’S mATERIALS: Review the following items with the customer Smart Start Guide mymazda.com • R emove this checklist from • O ffer to register customer on Smart Start guide MyMazda.com warranty Information owner’s manual • B asic Vehicle – 36 months/36,000 miles • Roadside assistance program SERVICE DEPARTmENT...
  • Page 26 GENUINE mAzDA SERVICE Because you and your Mazda deserve the best Your new Mazda deserves nothing less than the very best. To keep it running like new for years to come, trust the experts at your local authorized Mazda Dealer. Simply bring your vehicle in for your scheduled maintenance and any needed repairs.* At Mazda Full Circle Service Centers,** our technicians will automatically perform a complimentary Full Circle inspection on your vehicle and issue a detailed report card at every visit. This is designed to help you keep track of your Mazda’s critical operating condition. Our factory-trained technicians know your vehicle inside out and use genuine Mazda Parts, giving your vehicle the optimum care and maintenance it requires to run with flawless precision. Remember, to further enhance your driving experience, visit your local Mazda Service Center for your scheduled maintenance. It’s also the place where you can find a wide variety of tires, parts, and accessories that are just right for your vehicle. * See vehicle’s scheduled-maintenance program for details. ** Visit mymazda.com/fullcircle for a list of Full Circle Service Centers...
