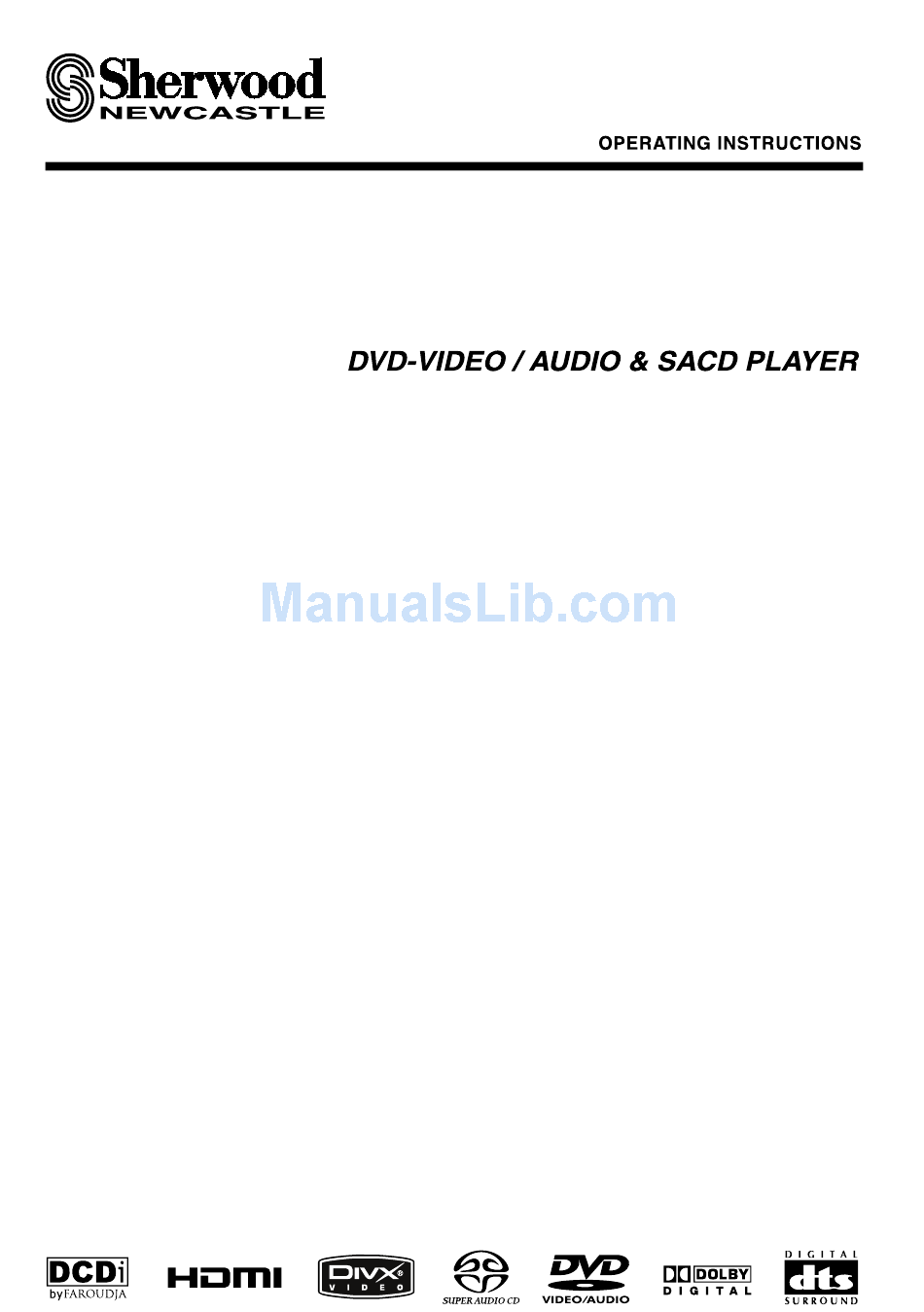

  • Page 1 SD-871...

  • Page 2: Read This Before Operating Your Unit

    Introduction READ THIS BEFORE OPERATING YOUR UNIT This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION : TO REDUCE THE RISK OF ELECTRIC This symbol is intended to alert the user to the...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should Figure 1 be read before the product is operated. Example of antenna grounding as per 2. Retain instructions - The safety and operating instructions should National Electrical Code, ANSI/NFPA 70 ANTENNA LEAD IN be retained for future reference.
  • Page 4 FOR YOUR SAFETY Units shipped to the U.S.A and Canada are designed for operation on 120 V AC only. Safety precaution with use of a polarized AC plug. However, some products may be supplied with a nonpolarized plug. U.S.A CAUTION : To prevent electric shock, match wide blade of plug to wide slot, fully 120 V insert.

  • Page 5: Table Of Contents

    CONTENTS • Introduction READ THIS BEFORE OPERATING YOUR UNIT • System Connections CONNECTING TO A/V AMPLIFIER OR RECEIVER CONNECTING TO TV WITH HDMI INPUT CONNECTOR CONNECTING TO TV WITH AUDIO AND VIDEO INS | 11 CONNECTING TO TV WITH SCART CONNECTOR(Regional Option) | 11 •...

  • Page 6: System Connections

    System Connections • Do not connect the AC input cord into the AC outlet when plugging and unplugging connection cords. • Since different components often have different terminal names, carefully read the operating instructions of the component connected. • Be sure to observe the color coding when connecting audio and video cords. •...
  • Page 7 1. Connecting 5.1CH AUDIO OUTPUTs 3. Connecting DIGITAL OUTPUTs • To fully enjoy the multi-channel audio of DVD Audio and • To enhance the sound quality, connect either the OPTICAL SACD as well as Dolby Digital and DTS soundtracks of or the COAXIAL DIGITAL OUTPUT jack to the DVD Video, etc., connect these jacks to the corresponding corresponding DIGITAL INPUT jack of your amplifier/...
  • Page 8 • Connect this jack to the (composite)VIDEO input jack of • Connect this jack to the DIGI LINK jack of the external your amplifier/receiver or TV. Sherwood component that uses the DIGI LINK II or III • The same signal is output from COMPOSITE VIDEO remote control system.

  • Page 9: Connecting To Tv With Hdmi Input Connector

    CONNECTING TO TV WITH HDMI INPUT CONNECTOR • If you have a HDMI INPUT connector equipped TV or projector, etc., connect it to the HDMI OUTPUT connector of this unit using a commercially available HDMI cord. The HDMI connection can carry uncompressed digital video and multi-channel digital audio signals. •...
  • Page 10 Audio output from the unit’s HDMI OUTPUT and 5.1CH / 2CH AUDIO OUTPUTs • Depending on the AUDIO OUT setting, the following table shows the audio signals to be output from the HDMI OUTPUT connector and 5.1CH / 2CH AUDIO OUTPUTs.(For details, refer to “When selecting the AUDIO OUT” on page 42.) AUDIO OUT setting Disc type Audio recording format...

  • Page 11: Connecting To Tv With Audio And Video Ins

    CONNECTING TO TV WITH AUDIO AND VIDEO INS • You can enjoy DVD Videos by simply connecting this unit to a TV. To hear improved audio sound quality, connect the 2CH AUDIO OUTPUTs to the AUDIO INs of DVD(, AUX, CD, etc.) of your amplifier/receiver. •...

  • Page 12: Front Panel & Remote Controls

    Front Panel & Remote Controls Front Panel Controls 1. POWER switch 2. STANDBY indicator 3. FORWARD/BACKWARD SKIP ) buttons 4. STOP( ) button 5. PAUSE/STEP( ) button 6. PLAY( ) button 7. OPEN/CLOSE( ) button 8. DISC TRAY 9. HDMI ON indicator 10.

  • Page 13: Remote Control Operation Range

    Fluorescent Display PLAY Indicator SOUND RECORDING SYSTEM PURE AUDIO indicators indicators DISC TYPE VIDEO FILE TYPE SOUND RECORDING SYSTEM indicators PROGRESSIVE indicator indicators indicators PAUSE indicator REMAIN indicator Group/title number, SOUND RECORDING Resolution indicators CHANNEL indicators SYSTEM indicator track/chapter number, MDHI indicator ANGLE indicator playing time, operating...

  • Page 14: Preliminary Knowledge About Discs

    Preliminary Knowledge About Discs PLAYABLE DISC TYPES REGION CODE This unit supports the following discs. • DVD players and DVD Videos have their own Region Code numbers which are assigned to each country or area as Disc Logo Format or file type shown below.

  • Page 15: Audio And Video Files

    AUDIO AND VIDEO FILES CARE AND HANDLING OF DISCS • Folder and file names are displayed up to 11 characters. • In handling a disc, hold it carefully • Characters except “A~Z”, “0~9”, “ - ” may be not displayed. with edges.

  • Page 16: Operations

    Operations Before starting playback • Make the initial settings to suit your usage conditions the very first time this unit is turned on.(For details, refer to “Initial Settings” on page 32) • For explanation purposes, this instructions explains the OSD(On-Screen Display) language displayed on TV in English. •...
  • Page 17 • When you load a MP3, WMA, JPEG, DivX disc or a DVD that contains a menu, the menu display may appear on the TV screen. In this case, see “To start playback from the menu of DVD” below or “To start playback from the menu of MP3, WMA, JPEG or DivX disc”...
  • Page 18 To start playback from the menu of MP3, WMA, JPEG or DivX disc In the stop mode, press the CURSOR buttons to select the folder and file menu. Press the CURSOR buttons to select the preferred folder or file then press the ENTER button. •...
  • Page 19 To stop playback • When playback of a DVD is stopped, the unit memorizes the point where the STOP( ) button was Main unit pressed(RESUME function: DVD only). (“RESUME” is displayed on the unit’s display when this function is activated.) •...
  • Page 20 To skip ahead or back during playback • To skip ahead • To skip back • Each time the button is pressed, a chapter/track/file is skipped. • In case of DVD, SACD and CD, when the BACKWARD SKIP button is pressed once midway through a Main unit Main unit chapter/track, playback returns to the beginning of that...
  • Page 21 Bonus group playback • Some DVD Audios contain an extra bonus group that requires a 4-digit password to access.(For details on 4-digit password, see the disc’s sleeve notes.) During playback, select the bonus group. • Then password input screen is displayed. •...

  • Page 22: Displaying Disc Information During Playback

    DISPLAYING DISC INFORMATION DURING PLAYBACK • The unit features the on-screen display function showing disc information. • Press the DISPLAY button. • Then the disc information is displayed on the TV screen. • Each time this button is pressed, the disc information is changed depending on the disc types as follows : : Elapsed time of TITLE 01/07 CHAPTER 001/012 TRACK ELAPSED...

  • Page 23: Playing The Desired Section Of Disc

    PLAYING THE DESIRED SECTION OF DISC During playback, press the SEARCH button. • Then the search mode is displayed on the TV screen. • Each time this button is pressed, the search mode is changed depending on the disc types as follows: TITLE 01/ 07 CHAPTER 001 / 012 : Title/chapter search mode : Time search mode...

  • Page 24: Playing A Specific Item

    PLAYING A SPECIFIC ITEM When using a title menu • If some DVDs which contain more than one title may have the menu like as a list of the titles, the TOP MENU button can be used to select the desired title. (The details of operation differ depending on the disc used.) During playback, press the TOP MENU button.

  • Page 25: Repeat Playback

    REPEAT PLAYBACK • You can play a current title, group, chapter, folder, track, file, disc or part repeatedly. Note : • Repeat playback may not work correctly with some discs. Repeating a chapter/track, title/group During playback of the desired chapter/track or title/group, press the REPEAT( ) button.

  • Page 26: Playing Tracks/Files In Random Order

    Continued Repeating the desired part During playback at the beginning of the part you want to repeat, press the REPEAT A/B button. • Then “A TO B SET A” is displayed on the TV screen. At the end of the part, press the REPEAT A/B button again. •...

  • Page 27: Playing Tracks In Desired Order

    PLAYING TRACKS IN DESIRED ORDER • Up to 25 tracks can be programmed to be played in any desired order. In the stop mode, press the PROGRAM button. • Then the program mode is displayed on the TV screen. PROGRAM P 00:00 •...

  • Page 28: Bookmark Playback

    BOOKMARK PLAYBACK • The bookmark function allows you to mark the desired scene/point that you can go to quickly. Up to 14 bookmarks can be stored in the memory. Storing a bookmark in the memory During playback, press the MARKER button. Mark mode •...

  • Page 29: Changing The Audio Language

    CHANGING THE AUDIO LANGUAGE • It is possible to change the audio language to a different language from the one selected at the initial settings. (For details, refer to “SETTING THE LANGUAGE SETUP” on page 44.) This operation works only with DVDs on which multiple audio languages are recorded. •...

  • Page 30: Changing The Camera Angle

    CHANGING THE CAMERA ANGLE • Some DVDs contain scenes which have been shot simultaneously from multiple camera angles. For these discs, the same scene can be viewed from each of these different angles. • The recorded angles differ depending on the disc used. •...

  • Page 31: Changing The Video Signal Format

    CHANGING THE VIDEO SIGNAL FORMAT • Depending on the countries, this unit conforms to either the NTSC color system for U.S.A, Canada, etc., or the PAL for Europe, Australia, China, etc. If the color system of this unit is different from that of your TV monitor and the discs to be played, the screen may be somewhat hard to see or the picture quality may be poor.

  • Page 32: Initial Settings

    Initial Settings The initial settings of the unit at the factory can be modified as desired later. Even after the power of the unit is switched to the standby mode, the initial settings are stored in memory until it is changed the next time.

  • Page 33: Setting The Video Setup

    SETTING THE VIDEO SETUP • HDMI OUTPUT : When outputting signals from the HDMI OUTPUT connector VIDEO SETUP or not. HDMI OUTPUT • HDMI FORMAT : When outputting either the component or the RGB video HDMI FORMAT signals from the HDMI OUTPUT connector. VIDEO OUTPUT •...
  • Page 34 Continued When selecting the VIDEO OUTPUT • You can select the resolution of video signals to be output from the HDMI OUTPUT connector depending on the TV connected to this unit.(For details on the resolution compatible with your TV, refer to the operating instructions of that.) •...
  • Page 35 Continued When selecting the TV SYSTEM • Depending on the countries, this unit conforms to either the NTSC color system for U.S.A, Canada, etc., or the PAL for Europe, Australia, China, etc. If the color system of this unit is different from that of your TV monitor and the discs to be played, the screen may be somewhat hard to see or the picture quality may be poor.
  • Page 36 Continued Press the CURSOR button to select the setting menu. • Each time the CURSOR button is pressed, the setting menu or the item menu is selected. Press the CURSOR buttons to select the preferred, then press the ENTER button. •...

  • Page 37: Setting The Audio Setup

    SETTING THE AUDIO SETUP • The speaker size, distance and level settings are valid the 5.1CH AUDIO OUTPUTs are connected to the multichannel audio inputs of your amplifier/receiver.(For details, refer to “Connecting 5.1CH AUDIO OUTPUTs” on page 7.) • To obtain the best possible surround sound, set the size of speakers you have connected and their distances from your listening position.
  • Page 38 Continued Press the CURSOR buttons to select the preferred setting, then press the ENTER button. • The selected setting is colored. About speaker size • Depending on your speaker type, you can select one of these following speaker types. * YES/NO : Select the desired depending on whether a subwoofer is connected or not. * LARGE : Select this when connecting speakers that can fully reproduce sounds below crossover frequency.
  • Page 39 Continued When selecting the DISTANCE SETUP Press the CURSOR buttons to select the DISTANCE SETUP, then press the ENTER button. DISTANCE SETUP UNIT METERS Setting menu FRONT L FEET CENTER FRONT R Item SURROUND R menu SURROUND L EXIT Press the CURSOR buttons to select the preferred item.
  • Page 40 Continued When selecting the LEVEL SETUP Press the CURSOR buttons to select the LEVEL SETUP, then press the ENTER button. LEVEL SETUP TEST TONE FRONT L CENTER FRONT R SURROUND R SURROUND L SUBWOOFER Item menu Setting menu Press the CURSOR buttons to select the TEST TONE, then press the CURSOR button to select its setting menu.
  • Page 41 Continued Press the CURSOR buttons to adjust the volume of the selected speaker as preferred until the sound level of each speaker is heard to be equally loud. • You can adjust the volume within the range of -10~0 dB. Press the CURSOR button to select the item menu.
  • Page 42 Continued When selecting the AUDIO OUTPUT Press the CURSOR buttons to select the AUDIO OUTPUT, then press the ENTER button. AUDIO OUTPUT AUDIO OUT HDMI AUTO Setting menu LATE NIGHT MULTI CH Item DVD AUDIO AREA STEREO menu SACD AREA Lt/Rt EXIT Press the CURSOR...
  • Page 43 Continued When selecting the LATE NIGHT • This function compresses the dynamic range of previously specified parts of the Dolby Digital sound track(with extremely high volume) to minimize the difference in volume between the specified and non-specified parts. This makes it easy to hear all of the sound track when watching movies at night at low levels. •...

  • Page 44: Setting The Language Setup

    Continued Set other setups to your preference. To return to the audio setup menu screen • Press the CURSOR button to select the item menu, press the CURSOR buttons to select “EXIT” and press the ENTER button. Then the audio setup menu screen will be displayed. •...
  • Page 45 Continued Press the CURSOR buttons to select the preferred language, then press the ENTER button. • The selected language is colored. • You can select one of languages listed in the language menu. • When you want to select a language other than languages listed in the language menu, select “OTHERS”.

  • Page 46: Setting The Other Setup

    SETTING THE OTHER SETUP • CAPTIONS : When turning on or off the display of the closed captions recorded OTHER SETUP on DVD. CAPTIONS • ANGLE MARK : When displaying the angle symbol on the TV screen during ANGLE MARK playback at the scene recorded from multiple camera angles.
  • Page 47 Continued When selecting the MOMENTARY OSD • When a SACD contains the information on track, album and artist, etc., the corresponding information will be displayed momentarily or not depending on the MOMENTARY OSD setting. • ON : When turning on the OSD(On-Screen Display) which shows MOMENTARY OSD operation status or disc information, etc.
  • Page 48 Continued When selecting the PARENTAL CONTROL Press the CURSOR buttons to select the PARENTAL CONTROL. • Level 1G : OTHER SETUP Select this to play only DVD Videos for children. CAPTIONS Adult and general audience DVD Videos cannot ANGLE MARK be played.
  • Page 49 Continued Set other setups to your preference. To return to the main menu screen • Press the CURSOR button to select the item menu, press the CURSOR buttons to select “EXIT” and press the ENTER button. Then the main menu screen will be displayed. •...
  • Page 50 Continued Set other setups to your preference. To return to the main menu screen • Press the CURSOR button to select the item menu, press the CURSOR button to select “EXIT” and press the ENTER button. Then the main menu screen will be displayed. •...
  • Page 51 Continued When selecting the RESTORE DEFAULT? Press the CURSOR buttons to select the RESTORE DEFAULT?. • YES : DIVX VOD When resetting all the settings in the setup RESTORE DEFAULT? menu except the rating level, the password and the registration code to the default settings.

  • Page 52: Setting The Advanced Video Setup

    SETTING THE ADVANCED VIDEO SETUP • You can select the desired of 5 presets (4 factory presets and your own preset) to obtain the picture quality you want. • CUSTOM VIDEO SETUP : When adjusting different elements of the picture to ADVANCED VIDEO SETUP your preference and storing them into USER's memory.
  • Page 53 Continued When selecting the CCS(Cross Color Suppression) • You can remove the color signal component for images in which the color signal component is mixed with the brightness signal. • Set the CCS to your preference: * OFF : When turning off the CCS function. * AUTO : When removing the color signal component automatically.
  • Page 54 Continued Set other items to your preference. To return to the ADVANCED VIDEO SETUP menu screen • Press the CURSOR button to select the item menu, press the CURSOR buttons to select “EXIT” and press the ENTER button. Then the advanced video setup menu screen will be displayed. •...
  • Page 55 Continued Press the CURSOR button to select the item menu. • Each time the CURSOR button is pressed, the item menu or the setting menu is selected. Set other setups to your preference. To return to the ADVANCED VIDEO SETUP menu screen •...

  • Page 56: Definition Of Terms

    Definition Of Terms DVD Video DVD Video structure The format for storing MPEG-2 video on DVD, with DVD Video discs typically contain one or more titles, which interactive menus, multiple soundtracks, subtitles, camera may be subdivided into chapters. angles, and so on. Title 1 Title 2 DVD Audio...
  • Page 57 HDMI Dolby Digital HDMI(High Definition Multimedia Interface) is a new Dolby Digital provides multichannel surround sound in connection format that supports both video and audio on a cinemas from 35 mm film and in the home from laser discs, single digital connection. DVDs, and digital broadcast television, cable, and satellite The HDMI connection carries uncompressed, standard or systems.

  • Page 58: Troubleshooting Guide

    Troubleshooting Guide If a fault occurs, run through the table below before taking your unit for repair. If the fault persists, attempt to solve it by switching the unit off and on again. If this fails to resolve the situation, consult your dealer.
  • Page 59 Continued HDMI troubleshooting • This unit has been designed to be compliant with HDMI(High Definition Multimedia Interface) version 1.0. Depending on the component you have connected, unreliable signal transfers may result. In addition, some functions of this unit may be limited. (For details, refer to the operating instructions of the connected TV, etc.) PROBLEM POSSIBLE CAUSE...

  • Page 60: Specifications

    Specifications • TYPE System | DVD Video / Audio & SACD player Laser | Semiconductor laser • AUDIO SECTION Frequency response Sampling frequency : 192 kHz, DVD Audio | 4 Hz ~ 88 kHz Sampling frequency : 96 kHz, DVD | 4 Hz ~ 44 kHz Sampling frequency : 48 kHz, DVD | 4 Hz ~ 22 kHz Sampling frequency : 44.1 kHz, Audio CD | 4 Hz ~ 20 kHz SACD | 2 Hz~100 kHz...

  • Page 61: Dvd Language Code List

    DVD Language Code List Code Language Code Language Code Language Code Language 1027 Afar 1186 Scots Gaelic 1350 Malayalam 1513 Siswati 1028 Abkhazian 1194 Galician 1352 Mongolian 1514 Sesotho 1032 Afrikaans 1196 Guarani 1353 Moldavian 1515 Sundanese 1039 Amharic 1203 Gujarati 1356 Marathi...
  • Page 62 SD-871 DVD-VIDEO / AUDIO & SACD PLAYER 5707-04736-012-0S...
