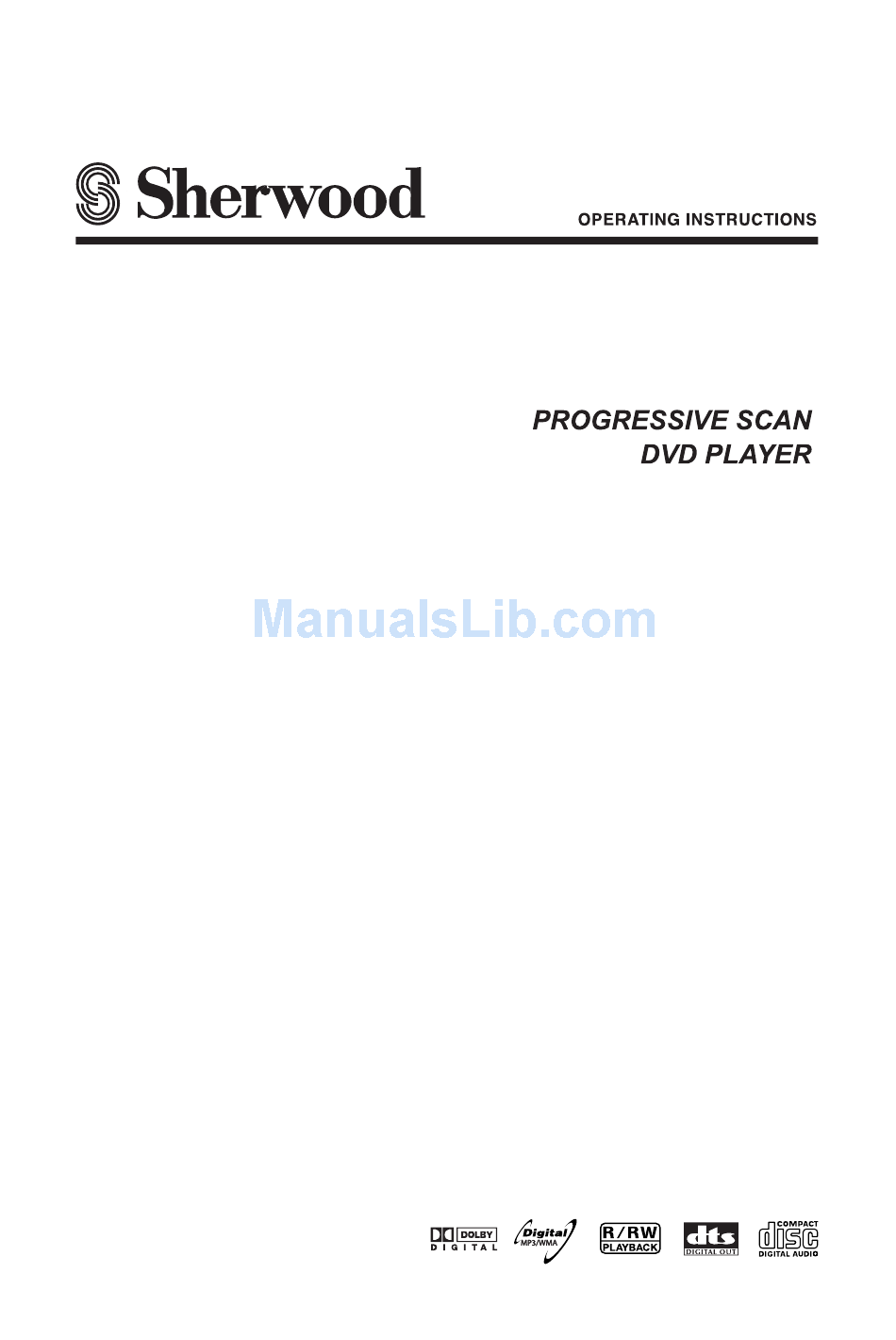

  • Page 1 VD-4502...
  • Page 2 Introduction UNPACKING AND INSTALLATION READ THIS BEFORE OPERATING YOUR UNIT This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT...
  • Page 3 Safety Introduction 1. Read Instructions – All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 4 Precautions FOR YOUR SAFETY Units shipped to the U.S.A and Canada are designed for operation on 120V AC only. Safety precaution with use of a polarized AC plug. U.S.A However, some products may be supplied with a nonpolarized plug. 120V CAUTION : To prevent electric shock, match wide blade of plug to wide slot, fully insert.

  • Page 5: Table Of Contents

    Contents Introduction / Safety Introduction / Precautions ..................... 2 Getting Started Notes on Discs ............................... 6 Playable Discs / Notes on DVD Videos / About Video CDs / MP3/WMA/JPEG/DivX Compatibility / Care and Handling Discs / Differences in Disc Composition / Notes on Copyright Facilities and Connections Control Position and Names .........................

  • Page 6: Notes On Discs

    Some audio CDs feature copy protection that doesn’t conform to the official CD standard. Since these are nonstandard discs, they may not play properly in the VD-4502. This unit can play CD-R and CD-RW discs recorded in CD Audio or MP3/WMA/JPEG in accordance with the Notes on DVD Videos ISO 9660 format.
  • Page 7 Notes on Discs About Video CDs • WMA files must have a “.wma” or “.WMA” file name extension. This DVD Player supports Video CDs equipped with the • It is recommended that you record your material at a bit PBC(Version 2.0) function (PBC is the abbreviation for rate of 64 kbps or higher.
  • Page 8 Notes on Discs Care and Handling of Discs Differences in Disc Composition I DVD • In handling a disc, hold it carefully with edges. All discs are divided up into smaller, more manageable sections so that you can find specific content more easily. DVDs are divided into one or more titles.

  • Page 9: Control Position And Names

    Control Position and Name Front Panel POWER button ®Ì Stop button Turns on the main power supply. Stops playing a disc. When disc is playing, if you press ®Ë STANDBY indicator Stop and Play , the disc will start resume play. Lights in the standby mode.
  • Page 10 Control Position and Name Display Disc indicators ®Ó Time indicator Indicates the type of disc currently loaded. Indicates playing time. ®Ë Play/Pause indicators ®Ô MEM. indicator Illuminates in play or pause mode. Illuminates during memory playback. ®È PROGRESSIVE indicator ® REPEAT indicator Illuminates when the DVD player is set to progressive Illuminates during repeat playback.
  • Page 11 Control Position and Name Remote Controller ®Û TITLE / PBC button If some DVD Videos which contain more than one title may have the menu like as a list of the titles, the TITLE button can be used to select the desires title. (The details of operation differ depending on the disc used.) When playing a Video CD equipped with PBC function, DVD Player will automatically enter the PBC on mode.

  • Page 12: Preparing The Remote Controller

    Preparing the Remote Controller Inserting the Batteries Using the Remote Controller Point the remote controller toward the remote control ®Á Remove the battery compartment cover by sensor. pressing the tab and lifting up the cover. ®Ë Insert the two batteries (size AAA/R3). Be sure to match the + and –...
  • Page 13 System Connections To accommodate a wide range of home entertainment systems, this player features numerous connection types for both audio and video. Please refer to the instructions on this and the following pages to determine the best possible type of connections for your system.
  • Page 14 System Connections I If yourTV has S-Video input connector Connecting to a TV Video connection This player has 3 kinds of video output jacks. Select one Using an S-video cable (sold separately), Connect the of the following connections. VIDEO OUTPUT S VIDEO jack to the corresponding •...
  • Page 15 DIGITAL OUTPUT OPTICAL or COAXIAL jack analog connection. on the DVD player. Note In the Digital Out setting, you can select whether the VD-4502 will output the PCM signal only or the PCM and other signals, or no digital signals at all.

  • Page 16: Turning On

    ON). When the power cord • Turning on the DVD Player may cause a momentary is plugged in for the first time, the VD-4502 will power surge, which might interfere with other electrical automatically enter the standby mode and the STANDBY equipment such as computers.

  • Page 17: Basic Playback

    Basic Playback Before playing Warning • Turn on the TV and set the TV to the DVD Player’s input. If the DVD Player is connected to the TV or • Turn on the audio system and set it to the DVD Player’s input, amplifier through the analog audio jacks, do if an audio system is connected to the DVD Player.
  • Page 18 Basic Playback Various Playback I To play in fast reverse ( ) or fast forward ( Press SEARCH during playback. SLOW Each press of the same button changes the playback speed. To resume normal playback, press PLAY Note The DVD Player mutes sounds and omits subtitles during PAUSE/STEP fast reverse and fast forward.
  • Page 19 Basic Playback The VD-4502 can play back MP3/WMA/JPEG files Various Play Modes recorded on CD-R or CD-RW. Playing Back MP3/WMA/JPEG During stop mode, press REPEAT on the remote controller to select the play mode. • A certain amount of time is required for the player to confirm the media on which MP3/WMA/JPEG files have been recorded before playback will commence.

  • Page 20: Other Operations

    Other Operations The following operations can be performed directly from the remote controller. Press the number buttons on the remote controller to enter the desired file number or folder number. Locating a Specific Title/Chapter/ Track/File by Entering the Numbers Press the number buttons to select the desired title No.
  • Page 21 Other Operations • The unit stops when the STOP I button is pressed. To restart program playback, press the PROGRAM CD Program Playback button, display the program screen, select the “PLAY” icon, and press the ENTER button. You can listen to the desired tracks of the current CD in I Insert track any desired order.
  • Page 22 Other Operations I Delete program , use L / M to move the cursors Press PLAY to the “INSERT” icon, and press ENTER. During stop mode, press the PROGRAM button on the The new track will be inserted after (below) the remote controller selected column.
  • Page 23 Other Operations Press STOP I and confirm the program. MP3/WMA/JPEG Program Playback You can listen to the desired files of the current MP3/WMA/JPEG disc in any desired order. I Program edit During stop mode, press PROGRAM. Press to select the file, then press ENTER.
  • Page 24 Other Operations Random Play Repeat Play The chapters or tracks of the disc are played in random order. Press RANDOM while stopped. RANDOM indicator lights up. I To cancel random play Desired disc or title can be played back repeatedly. Press RANDOM while stopped so that RANDOM indicator goes off.
  • Page 25 Other Operations Viewing Information A-B Repeat Play You can view information about a disc on the TV screen. Press DISPLAY during playback. The A-B repeat function lets you mark a segment to Each time you press DISPLAY, the on-screen display on repeat between the beginning “A”...
  • Page 26 Other Operations Zooming In/Out a Scene Bookmark Playback • In the Zoom-in mode only, you can select and view • The bookmark function allows you to mark the desired any part of the scene close-up.. scene/point that you can go to quickly. Up to 10 bookmarks can be stored in the memory.

  • Page 27: Dvd Settings

    DVD settings The following operations can be performed directly from the remote controller. • Selecting a Playback Audio Setting Changing the Subtitle Language • Changing the Subtitle Language • Changing the Camera Angle Press SUBTITLE on the remote controller repeatedly during playback to select the subtitle language.

  • Page 28: Customizing The Function Settings

    Customizing the Function Settings Progressive/HD Output Setting Setting Steps When component video connection is used to connect Press SETUP during stop mode. this player and TV is compatible with progressive, you can enjoy the progressive video image. Press PROGRESSIVE while stopped. The SETUP MENU appears.
  • Page 29 Customizing the Function Settings To return to the MAIN PAGE ANGLE MARK Press to select the main page, then press • ON ENTER or press RETURN. When a picture recorded in different angles is played back, is displayed on the screen. To clear the setting menu •...
  • Page 30 • NORMAL/PS (Pan Scan) Select when a 4:3 TV is connected. Displays pictures Selects whether the digital output of the VD-4502 will cropped to fill your TV screen. Either or both sides of output the PCM signal only, the PCM and other signals, the picture are cut off.
  • Page 31 Customizing the Function Settings I When selecting the SCART VIDEO SUBTITLE (Regional Option) Select the subtitle language. • For some countries like Europe, this unit incorporates • ENGLISH the A/V SCART OUTPUT connector which can deliver • FRENCH the composite(regular) or RGB video signals as well as •...
  • Page 32 Customizing the Function Settings I PASSWORD PARENTAL DVD videos equipped with the parental lock function are • CHANGE rated according to their content. The content allowed by a parental lock level and the way a DVD video can be The password for PARENTAL is changed. controlled may vary from disc to disc.

  • Page 33: Troubleshooting

    Troubleshooting...
  • Page 34 Troubleshooting...

  • Page 35: Specifications

    Specifications...

  • Page 36: Dvd Menu Language Code List

    DVD Menu Language Code List...
