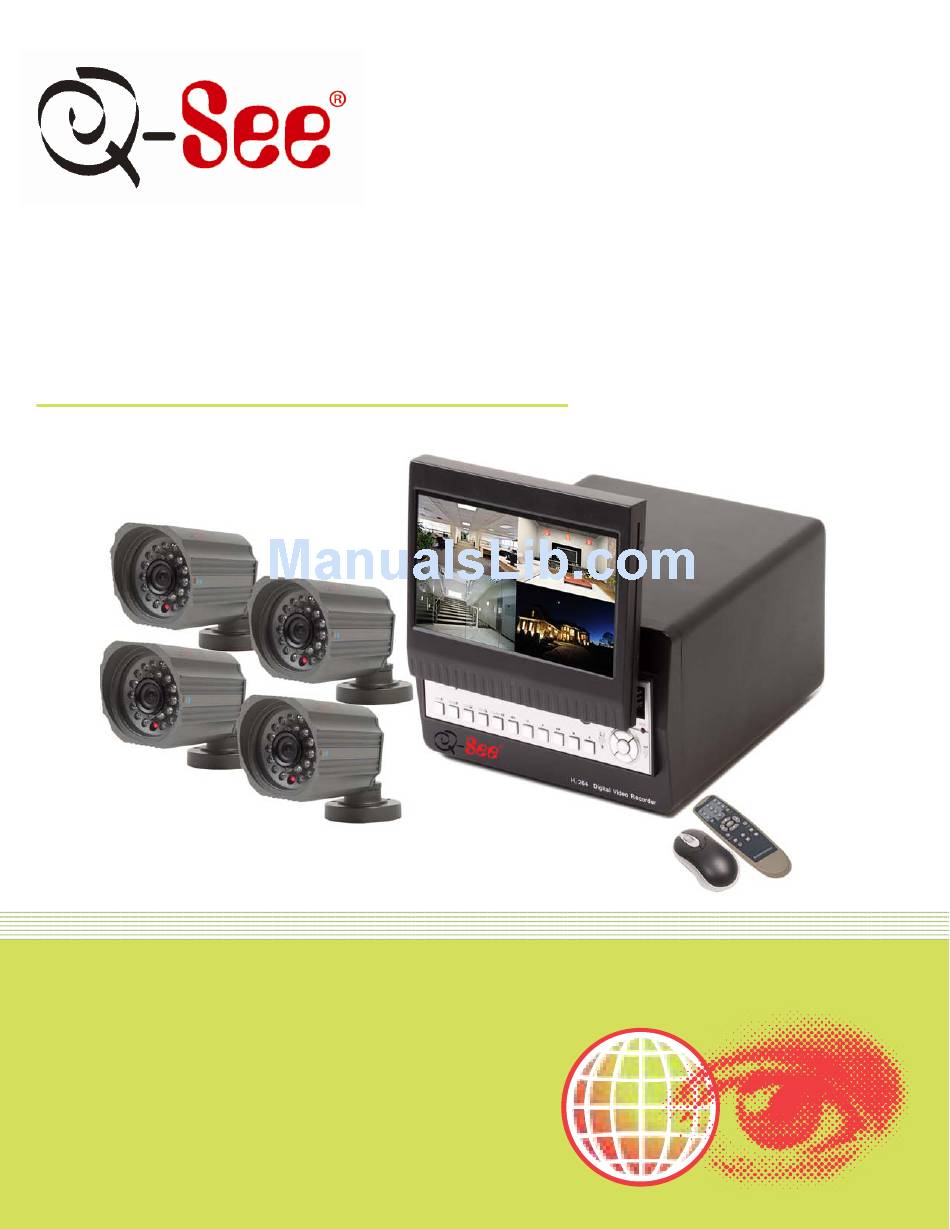

Page 1: Quick Installation Guide
Quick Installation Guide 4 Channel H.264 Compression DVR with Built-in Retractable 7” LCD Display Screen, (CIF) Real-Time Recording and 4 Color CCD Camera Kits... -
Page 2: Part 1 - Package Contents
Q-SEE QUICK INSTALLATION GUIDE PART 1 - PACKAGE CONTENTS: 4 Cameras with Stands QSDR74RTB DVR Pre-Installed User’s (2) QSDS0612D Cameras (6mm Lens) w/Built-in Retractable Hard Drive (2) QSDS3612D Cameras (3.6mm Lens) Manual 7” LCD Display Screen Power Supply & Power Supply Camera Cables BNC (M) –... - Page 3 Q-SEE QUICK INSTALLATION GUIDE PART 2 - DVR CAMERA AND POWER CONNECTIONS Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated. Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of 10 nanoseconds or less.
-
Page 4: Part 3 - Dvr Controls: Front Panel
Q-SEE QUICK INSTALLATION GUIDE PART 3 - DVR CONTROLS: FRONT PANEL Item Function Item Function Enter/Exit Menu Display Screen Pause/Auto Sequence Display Display Screen Play Show Menu Fast Forward Scroll Down in Menu Stop record Scroll Up in Menu Record... -
Page 5: Part 6 - To Start Recording
Q-SEE QUICK INSTALLATION GUIDE PART 5 - SETTING UP CAMERAS FOR VIEWING AND RECORDING From the Main menu, select CAMERA. Here you can setup the name display (up to 8 characters) and position of each channel (cameras). Select COLOR SETUP to adjust the image brightness, saturation, contrast and hue settings for each channel (camera). - Page 6 Q-SEE QUICK INSTALLATION GUIDE Manual Recording: From the Record Setup screen set the Rec Mode to “ALWAYS”. Your DVR will continuously record and separate files will be created with the Pack Time intervals you selected. Time Schedule Recording: From the Record Setup screen, set the Rec Mode to “TIME SCHEDULE RECORD” and click “SCHEDULE” in green.
- Page 7 Q-SEE QUICK INSTALLATION GUIDE The Motion detection Menu has three sections, including Channel Status, Sensitivity and Motion area. STATUS: This option allows you enable motion detection on any channel. SENSITIVITY: This option allows you to set sensitivity level of motion detection from 1 to 4, with 4 being the highest.
- Page 8 Q-SEE QUICK INSTALLATION GUIDE File List: On the Video search menu mode, click File list to display the sub-menu shown in the picture on the left. This option will allow you to view all of the available files by channel and type (all, normal, or alarm).
- Page 9 Q-SEE QUICK INSTALLATION GUIDE Questions or Comments? Contact Us: Mailing Address: Customer Service: DPS, Inc. Phone: 877-998-3440 x 538 8015 E. Crystal Dr. Email: cs@dpsi-usa.com Anaheim, CA 92807 Live Chat from our Website Website: Tech Support: http://www.q-see.com Phone: 877-998-3440 x 539 Fax: Email: ts@dpsi-usa.com...
