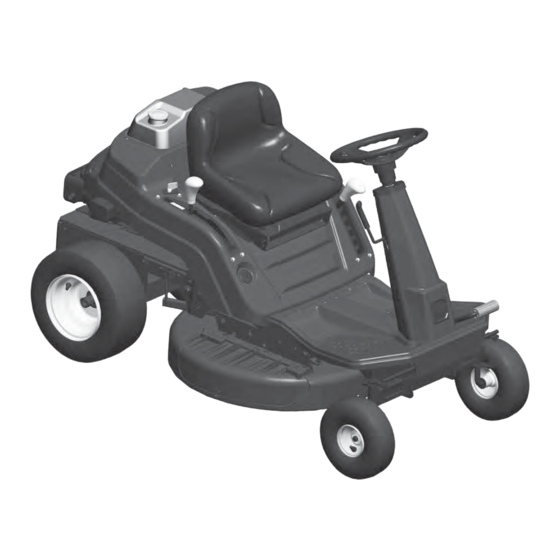

- Page 1 Operator’s Manual Rear Engine Riding Mower Model No. 7800918-00 7800920-00 7800921-00 7800932-00 7105921 Rev. -...
- Page 2 Thank You for purchasing this quality-built Snapper product. We’re pleased that you placed your confidence in the Snapper brand. When operated and maintained according to the instructions in this manual, your Snapper product will provide many years of dependable service. This manual contains safety information to make you aware of the hazards and risks associated with the machine and how to avoid them.
-
Page 3: Table Of Contents
Table of Contents Operator Safety ....................4 Features and Controls ...................13 Operation ......................14 Before Starting ...................14 How To Adjust The Operator Seat .............15 How To Start The Engine ................16 How To Engage The Mower Blade ............17 How To Engage The Transmission ............17 How To Stop The Engine, Transmission And Mower Blade ......18 How To Set The Parking Brake ..............19 How To Adjust The Cutting Height .............19... -
Page 4: Operator Safety
Operator Safety Operating Safety Operating Safety Power equipment is only as safe as the operator. If it is misused, or not Power equipment is only as safe as the operator. If it is misused, or properly maintained, it can be dangerous! Remember, you are responsible not properly maintained, it can be dangerous! Remember, you are for your safety and that of those around you. -
Page 5: Slope Operation
Operator Safety Slope Operation Slope Operation You could be seriously injured or even killed if you use this unit on too steep an incline. Using the unit on a slope that is too steep or where you don’t have You could be seriously injured or even killed if you use this unit on too adequate traction can cause you to lose control or roll over. - Page 6 Operator Safety WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious injury or death to the operator or other persons. The owner of the machine must understand these instructions and must allow only persons who understand these instructions to operate machine.
-
Page 7: Safe Handling Of Gasoline
Operator Safety Preparation 7. Remove gas-powered equipment from the vehicle or trailer and refuel it on the ground. If this is not possible, 1. Read, understand, and follow instructions and warnings then refuel equipment using a portable container, rather in this manual and on the machine, engine and attach- than a gasoline dispenser nozzle. - Page 8 Operator Safety Towing 1. Tow only with a machine that has a hitch designed for 6. Always provide adequate ventilation when running towing. DO NOT attach towed equipment except at the engine. Exhaust gases contain carbon monoxide, an hitch point. odorless and deadly poison.
- Page 9 Operator Safety...
-
Page 10: Safety And Instructional Decals
Operator Safety Safety and Instructional Decals All DANGER, WARNING, CAUTION and instructional If any of these decals are lost or damaged, replace them at messages on your rider and mower should be carefully once. See an authorized dealer for replacements. read and obeyed. - Page 11 Operator Safety Explanation of Safety Decals DANGER Amputation and thrown objects hazard Keep hands and feet away from deck. Do not operate mower unless discharge chute or entire grass catcher is in its proper place. 7101665 A. Read the operator’s manual before using the product. E.
- Page 12 Operator Safety D. Cutting Height. Shows position of cutting height adjust E. Forward Speed. Shows forward speed operation (manual lever. Refer to Operation section. drive models). Refer to Operation section. F. Reverse Speed. Shows reverse speed operation (manual G. Transmission Release. Shows operation of transmission drive models).
-
Page 13: Features And Controls
Features and Controls IMPORTANT The figures and illustrations in this manual are provided for reference only and may differ from your specific model. Contact your dealer if you have questions. Features and Controls J. Ignition Switch - starts engine K. Transmission Release Lever (hidden from view; A. -
Page 14: Operation
Operation Before Starting Make the following checks and perform the service required before each start-up: 1. Check the tire pressure; add or release air as need- ed. Refer to “How To Check Tire Pressure” in the Maintenance section. 2. Check guards, deflectors and covers to make sure all are in place and securely tightened. -
Page 15: How To Adjust The Operator Seat
Operation Fuel Recommendations Fuel must meet these requirements: • Clean, fresh, unleaded gasoline. • A minimum of 87 octane/87 AKI (91 RON). High altitude use, see below. • Gasoline with up to 10% ethanol (gasohol) is accept- able. NOTICE: Do not use unapproved gasolines, such as E15 and E85. -
Page 16: How To Start The Engine
Operation How To Start The Engine NOTE: If after 5 seconds of cranking the engine does not start, release the key, make sure the Clutch/Brake Pedal is fully depressed, and attempt starting again after waiting for WARNING approximately 20 seconds. POISONOUS GAS HAZARD. -
Page 17: How To Engage The Mower Blade
Operation How To Engage The Mower Blade NOTICE: If the transmission is moved into reverse while the mower blade is engaged, the engine will shut off. If mowing 1. Start the engine. in reverse is necessary, refer to “Reverse Mowing Option 2. -
Page 18: How To Stop The Engine, Transmission And Mower Blade
Operation WARNING DO NOT leave the machine with the engine running. STOP Blade. STOP engine. Shift to neutral and engage parking brake. Remove key. How To Stop The Engine, Transmission And Mower Blade Engine 1. Stop the engine by turning the ignition key (A, Figure 12) to the OFF position. -
Page 19: How To Set The Parking Brake
Operation How To Set The Parking Brake Reverse Mowing Option (RMO) 1. Fully depress the clutch/brake pedal (A, Figure 16). WARNING 2. Slide the parking brake (B) up and hold while releasing the clutch/brake pedal. The parking brake is now set. Mowing in reverse can be hazardous to bystanders. -
Page 20: How To Push The Unit By Hand
Operation How To Push The Unit By Hand WARNING Manual Drive Models: The mulching cover must remain on the machine at all 1. Make sure the unit is parked on a flat, even surface. times. Do not remove. 2. Make sure the transmission shift lever is in the Neutral (N) position. -
Page 21: Maintenance
Maintenance Emissions Control WARNING Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road DO NOT attempt any adjustments, maintenance, service or engine repair establishment or individual. However, to obtain repairs with the engine running. STOP engine. STOP blade. “no charge”... -
Page 22: Engine Maintenance
Maintenance How To Change The Oil Filter (if WARNING equipped) DO NOT attempt any adjustments, maintenance, service or Some models are equipped with oil filter. For replacement repairs with the engine running. STOP engine. STOP blade. intervals, see the Maintenance chart. Engage parking brake. - Page 23 Maintenance Flat Air Filter WARNING 1. Pull up on the cover handle (A, Figure 25). Rotate the cover handle toward the engine and then remove the DO NOT attempt any adjustments, maintenance, service or cover (B). repairs with the engine running. STOP engine. STOP blade. 2.
-
Page 24: Rider Maintenance
Maintenance How To Clean The Engine WARNING Use a brush or compressed air to remove loose debris on or around the engine. DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug How to Check Tire Pressure wire from spark plug and secure away from plug. - Page 25 Maintenance How To Service The Fuel Filter WARNING WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Allow the engine to fully cool down at least 5 minutes Engage parking brake. Remove key. Remove spark plug before attempting to service the fuel filter.
- Page 26 Maintenance Rear Axle Bearing (Manual Drive Models) WARNING 1. The grease fitting (A, Figure 31) on the left rear axle bearing requires three shots of general purpose grease DO NOT attempt any adjustments, maintenance, service or from grease gun. repairs with the engine running. STOP engine. STOP blade. 2.
-
Page 27: Battery Service
Maintenance How To Charge The Battery WARNING Charge the battery after each use, and if the battery has been stored for longer than 30 days. DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. WARNING Engage parking brake. -
Page 28: How To Charge The Battery
Maintenance How To Charge The Battery WARNING 1. Remove the battery. Refer to “How To Remove The Battery”. DO NOT attempt any adjustments, maintenance, service or 2. Place the battery in a well-ventilated area. repairs with the engine running. Stop engine. Stop blade. 3. -
Page 29: Storage
Maintenance WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. Avoid serious burns, allow all parts to cool before working on machine. -
Page 30: Repair
Maintenance How To Sharpen The Mower Blade WARNING 1. Raise the mower deck to the highest cutting position. Refer to “How To Adjust The Cutting Height”. DO NOT attempt any adjustments, maintenance, service or 2. Remove the bolts (B, Figure 35), washers (C) and nuts repairs with the engine running. - Page 31 Repair WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. Avoid serious burns, allow all parts to cool before working on machine.
- Page 32 Repair 3. If the measurement is less than 1/2” or greater than 3/4”, WARNING loosen the two jam-nuts (A, Figure 40). Hold the clutch/ brake cable (B) to the chain case bracket. DO NOT attempt any adjustments, maintenance, service or 4.
- Page 33 Repair 6. Recheck the mower blade stopping time. If still over 5 WARNING seconds, complete or repeat Step 5 as needed. 7. Once blade stopping time has been correctly adjusted, DO NOT attempt any adjustments, maintenance, service or replace the mower deck cover. repairs with the engine running.
-
Page 34: Troubleshooting
Troubleshooting PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine Will Not 1. Operator not in seat. 1. Sit in operator seat. Start 2. Ignition is in the OFF position. 2. Turn ignition switch to the START position. 3. Clutch/brake pedal not fully depressed. 3. - Page 35 Troubleshooting PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Rider Will Not 1. Drive disc worn or damaged. 1. Replace drive disc. Contact authorized dealer. Move Or Loss 2. Rubber drive disc is not tracking properly on 2. Adjust rubber drive disc. Contact authorized dealer. of Traction drive disc.
-
Page 36: Warranties
Warranties BRIGGS & STRATTON PRODUCTS WARRANTY POLICY April 2012 LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. - Page 37 Warranties California, U.S. EPA, and Briggs & Stratton Corporation Emissions Control Warranty Statement September 2012 Your Warranty Rights And Obligations The California Air Resources Board, U.S. EPA, and Briggs & Stratton (B&S) are pleased emissions-related part on your B&S engine/equipment is defective, the part will be to explain the emissions control system warranty on your Model Year 2012--2013 repaired or replaced by B&S.
- Page 38 Notes www.snapper.com...
- Page 39 Notes...
-
Page 40: Product Specifications
Rear Engine Riding Mower Product Specifications 7800918-00 7800920-00 7800932-00 7800921-00 Deck Size (in / cm) 28 / 71 28 / 71 33 / 84 33 / 84 Height of Cut (in / cm) 1.5 - 4.0 / 3,8 - 10,2 1.5 - 4.0 / 3,8 - 10,2 1.5 - 4.0 / 3,8 - 10,2 1.5 - 4.0 / 3,8 - 10,2...
