HP Compaq 6715s Quickspecs

HP Compaq 6715s Quickspecs

Notebook pc
Hide thumbs Also See for Compaq 6715s:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs

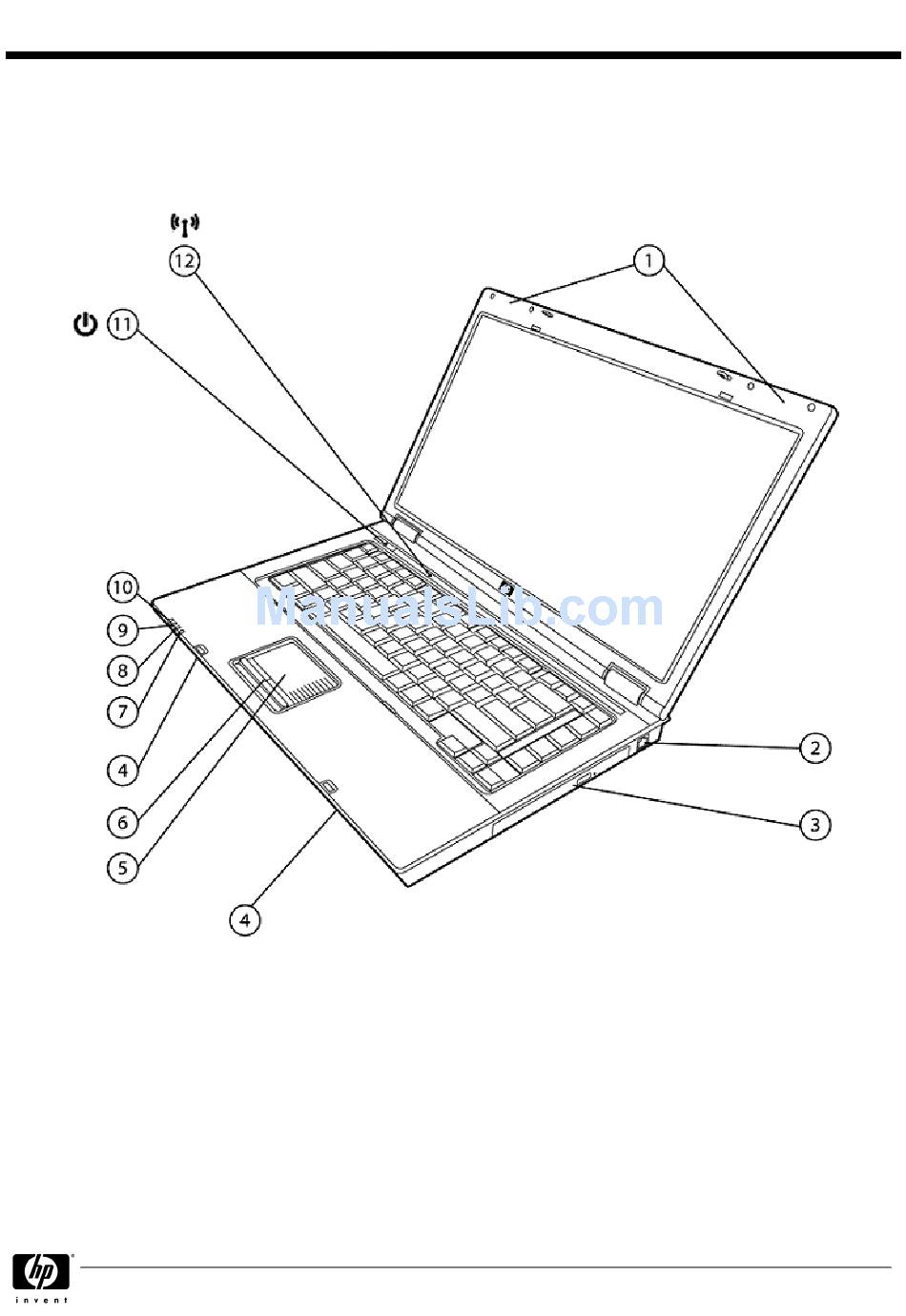

Overview
1.
WLAN Antennas (with WLAN option)
2.
RJ-11/modem Port
3.
Optical drive
4.
Integrated stereo speakers
5.
Touchpad with scroll zone
6.
Touchpad buttons
DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007
HP Compaq 6715s Notebook PC
HP recommends Windows Vista™
Business
7.
Hard drive activity LED
8.
Battery charging LED
9.
Power/standby LED
10.
Wireless on/off LED
11.
Power button with LED
12.
Wireless on/off Button with LED
Page 1

Advertisement

loading

Related Manuals for HP Compaq 6715s

Summary of Contents for HP Compaq 6715s

  • Page 1 Optical drive Integrated stereo speakers Touchpad with scroll zone Touchpad buttons DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC HP recommends Windows Vista™ Business Hard drive activity LED Battery charging LED Power/standby LED...
  • Page 2 AMD Turion™ 64 X2 Dual-Core Mobile Technology processors, or Mobile AMD Sempron™ processors Thin, lightweight design starting at 5.7 lb/2.59 kg and 1.37 in/34.9 mm thin at front Security features including HP ProtectTools Security Manager and Device Access Manager for HP ProtectTools Integrated optical drive, including optional DVD+/-RW SuperMulti DL LightScribe Drive...

  • Page 3: Standard Features

    Microsoft DirectX 9 capable Display Internal External DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC Genuine Windows Vista Business 32/64* Genuine Windows Vista Home Basic 32* FreeDOS Genuine Windows XP Professional SuSE Linux Enterprise Desktop 10 15.4-inch diagonal WXGA anti-glare (1280 x 800 resolution and 16M...
  • Page 4 Maximum Dual-channel NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Communications Integrated Broadcom NetLink Fast Ethernet Controller (10/100 NIC) 56K V.92 modem*...
  • Page 5 Windows Vista * Download available from DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 80/120/160-GB 5400 rpm SMART SATA The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive.
  • Page 6 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.
  • Page 7 Standby ACPI compliance Service and Support HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
  • Page 8 HP Deluxe Nylon Backpack HP Universal Messenger Bag HP Deluxe Roller Case Security HP PC Card Smart Card Reader with Java Card HP ProtectTools Java Card – 10 units HP/Kensington MicroSaver Security Lock Input/Output Devices HP PS/2 Keyboard & Mouse Bundle HP USB Keyboard &...
  • Page 9 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 10 Drive Bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay Quantity Supported Drive Bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay HP Compaq 6715s Notebook PC Page 10...

  • Page 11: Technical Specifications

    Industry Standard Certifications DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 1.37 in (at front) x 14.05 in x 10.43 in 34.9 mm (at front) x 357.0 mm x 265.0 mm Starting from 5.7 lb (2.59 kg) Nominal Operating 18.5 V...
  • Page 12 Battery Re-Charge Time Fuel Gauge DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm) 0.86 lb (390 g) 100 to 240 VAC...
  • Page 13 Cells/Type Energy Temperature Battery Re-Charge Time DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 1.00 lb (0.455 kg) 8-cell Lithium-Ion Watt-hour Capacity 52Wh Operating (Charging) 32° to 113° F (0° to 45° C) Operating (Discharging) 14°...
  • Page 14 Pixel Resolution Backlight Viewing Angle Hard Drives DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 13.0 x 8.1 in (33.1 x 20.7 cm) 15.4 in (39.1 cm) Anti-glare Up to 16M 300:1 (typical)
  • Page 15 Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 0.22 lb (101 g) 160 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 16 Supported Media (write)CD-R, CD-RW Max Media Capacity (read) Max Media Capacity (write) Transport DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC Random <116 ms CD <125 ms DVD 3,600 KB/s 8X-DVD 10,800 KB/s...
  • Page 17 Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC Random <175 ms CD <230 ms DVD...
  • Page 18 Rate(s) Integrated Stereo Power Rating Speakers Impedance Communications DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 8.5 GB 8.5 GB Tray Loading ADI1981HD High Definition CODEC Volume up, volume down, and mute Stereo Stereo 20 Hz –...
  • Page 19 Certifications Data Mode Capabilities V.92 data DA - 12688 Worldwide QuickSpecs — Version 4 — 5.4.2007 HP Compaq 6715s Notebook PC 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13- 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses...
  • Page 20 Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) ACPI compliant power management 802.11 compliant power saving mode 54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm HP Compaq 6715s Notebook PC Page 20...
  • Page 21 Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager LED Off – Radio OFF; Solid LED On – Radio ON HP Compaq 6715s Notebook PC Page 21...
  • Page 22 Non-operating Operating Non-operating Operating Non-operating HP Compaq 6715s Notebook PC 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 32° to 176° F (0° to 80° C) –40°...
  • Page 23 Full support of Bluetooth Security Provisions Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff All necessary regulatory approvals for supported countries, including: HP Compaq 6715s Notebook PC Page 23...
  • Page 24 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
