Aluratek ADMPF315F Instructional Manual

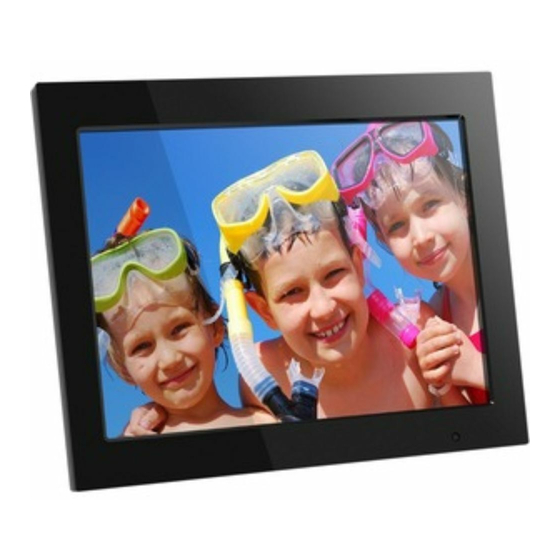

15” digital photo frame
Hide thumbs
Also See for ADMPF315F:
- Instructional manual (52 pages) ,
- Instructional manual (24 pages) ,
- Instructional manual (24 pages)
Related Manuals for Aluratek ADMPF315F
Summary of Contents for Aluratek ADMPF315F
- Page 1 15” Digital Photo Frame Instructional Manual ADMPF315F aluratek.com mnl M10054 Copyright © 2010 Aluratek, Inc. All Rights Reserved.
-
Page 3: Table Of Contents
Table of Contents Introduction .............................. Features ..............................Package Contents ........................... Product Highlights ........................... Remote Control Close-up ........................Getting Started ............................Operations ............................... Set-Up ..............................Selecting Which Media to Use ......................Viewing Photos ........................... Adjust Speed of Slideshow ......................... Adjust Slide Transition Effect ......................Listen to Music ........................... -
Page 4: Introduction
Browse and listen to all of your favorite music files. With Aluratek’s new (DLD) share all your digital pictures, videos, and music files. Whether it is at work or at home, let the fun begin! In addition to making sure only quality materials are used for manufacturing, Aluratek®... -
Page 5: Features
Features • Easy operation as most file formats are automatically recognized • High quality wooden frame • High quality built-in speakers • Memory included • 15” TFT true color LCD • Supports most memory card formats such as: CF / SD / SDHC •... -
Page 6: Package Contents
Features cont. USB Host / Device Functions Any MP3 or USB mass storage device (formatted in FAT32) can be inserted into Type A USB port on the digital picture frame. It will be shown as “USB-C” on the digital picture frame. You can access all files on the device just like any other memory cards. -
Page 7: Product Highlights
15” Digital Photo Frame Highlights 15” viewing area Quality wood frame Built-in speakers Menu selection buttons Power on/off switch USB 2 port (mini-B) USB 1 port Power adapter port Memory card slots Frame stand Wall mount holes... -
Page 8: Remote Control Close-Up
Remote Control Close-Up 1. Power On/Off 2. Volume + / Volume - 3. Mode - Select between photo, music and video modes 4. Menu - Returns to the previous menu 5. Setup - Takes you to the setup menu settings 6. -
Page 9: Getting Started
Getting Started Step 1: Remove the protective film covering the LCD. Step 2: Remove the plastic insulator from the battery on the remote control. Operations Set-Up STEP 1: Plug the power adapter in then turn the power switch on. STEP 2: Please insert your memory card (SD, MMC, CF, MS) at this time. -
Page 10: Selecting Which Media To Use
Operations cont. STEP 3, optional: With the built-in memory feature, you may also transfer pictures, movies and/or music files directly from your computer to your digital photo frame by attaching the included USB cable to your com- puters USB port. Once you connect the USB cable to the computer, you will see “PC Connected” on your photo frame. -
Page 11: Viewing Photos
Operations cont. Viewing Photos 1. Select the “Photo” icon on the screen. 2. Select the photo you desire by using the up and down keys on your remote control. 3. Once you have selected your photo press “Enter”. 4. You may zoom in on your photos by pressing the “Zoom” button on the remote. You may also reposition the photo using the up, down, left and right buttons on the remote once you zoom in for detailed viewing. -
Page 12: Adjust Speed Of Slideshow
Operations cont. Adjust Speed of Slideshow 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Slideshow Time”. 3. Use the left or right key to select the time interval from 3sec to 1hour then press “Enter”. 4. -
Page 13: Adjust Slide Transition Effect
Operations cont. Adjust the Slide Transition Effect 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Slideshow Mode”. 3. Use the left or right key to select your desired slide transition effect then press “Enter”. 4. -
Page 14: Listen To Music
Operations cont. Listen to Music 1. Select the “Music” icon on the screen. 2. A list of MP3 files stored on your media will appear on the screen. Use the up and down keys on the remote control to select the desired song then press “Enter”. You can press the “ ”... -
Page 15: Music Play Mode
Operations cont. Music Play Mode 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Music Repeat Mode”. 3. Use the left or right key to select “Repeat One”, “Repeat All” or “Repeat Off” then press “Enter”. 4. -
Page 16: View Videos
Operations cont. View Videos 1. Select the “Movie” icon on the screen. 2. A list of video files stored on your media will appear on the screen. Use the up and down keys on the remote control to select the desired video then press “Enter”. You can press the “ ”... -
Page 17: Video Play Mode
Operations cont. Video Play Mode 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Movie Repeat Mode”. 3. Use the left or right key to select “Repeat One”, “Repeat All” or “Repeat Off” then press “Enter”. 4. -
Page 18: Copy Files Between Memory Cards / Internal Memory
Operations cont. Copy Files Between Memory Cards / Internal Memory 1. Select the “File” icon on the screen. 2. Select the photo you want to copy using the up and down keys on your remote control and press the “ ”... -
Page 19: Delete Files Between Memory Cards / Internal Memory
Operations cont. Delete Files From Memory Cards / Internal Memory 1. Select the “File” icon on the screen. 2. Select the photo you want to delete using the up and down keys on your remote control and press the “ ”... -
Page 20: Change The Display Language
Operations cont. Change the Display Language 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Language”. 3. Use the left or right key to select the desired language then press “Enter”. 4. -
Page 21: Set The Date And Time
Operations cont. Set the Date and Time 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Time”. 3. Use the left or right key to select what you want to change and use the up or down key to change to the correct value then press “Enter”. -
Page 22: Set The Alarm
Operations cont. Set the Alarm 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Alarm”. 3. Use the left or right key to select what you want to change and use the up or down key to change to the correct value then press “Enter”. -
Page 23: Technical Support
Technical Support If you need further assistance, please contact Aluratek support department prior to returning this device. E-mail: support@aluratek.com Web: www.aluratek.com/support Local (Irvine, CA): 949-419-6504 Toll free: 1-866-580-1978... -
Page 24: Radio And Tv Interference Statement
Radio and TV Interference Statement WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. -
Page 25: Warranty
Warranty Aluratek warrants this product against defect in material or workmanship for 120 Days from the date of purchase. This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product. - Page 28 Aluratek, Inc. 12A Mauchly Irvine, CA 92618 sales@aluratek.com 949.419.6504 • office 949.419.6477 • fax...
