Summary of Contents for Zanussi ZTL75

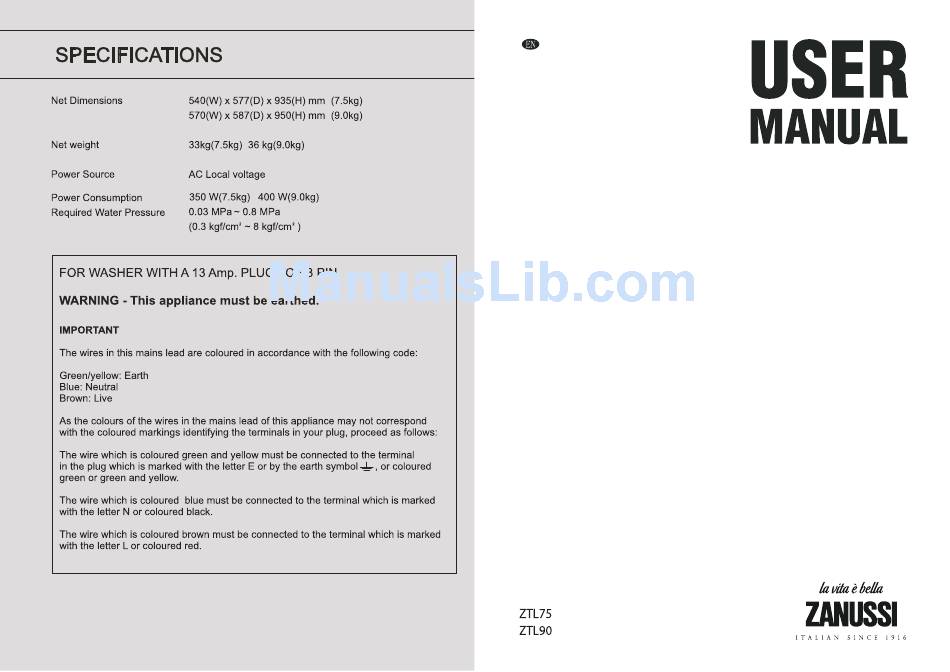

- Page 1 User manual Automatic Washing Machine Top Ioad 7.5Kg...
-
Page 2: Table Of Contents
CONTENTS WARNINGS CARE AND MAINTENANCE ACCESSORIES NAME OF PARTS INSTALLATION INSTRUCTIONS THE PREPARATION OF LAUNDRY BEFORE WASHING NAMES AND FUNCTIONS OF CONTROL PANEL NORMAL USAGE HOW TO USE THE CUSTOMIZED PROGRAM 1 0 1 1 VARIOUS FUNCTIONS PRESET BLANKET REMEMBER FUNCTION TWO CLEAN STEPS FUNCTION Hydrosonic WATER LEVEL SETTING... -
Page 3: Warnings
WARNINGS ACCESSORIES Never put your hand(s) into the Wash/SpinTub while the Be sure to connect Power Plug and Power washer is operating. Cord properly. ·The laundry in swirling water may twist around your ·Be sure to plug the Power Cord into a proper socket-outlet for the washer. -
Page 4: Installation Instructions 4
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Installing the Bottom Cover Bottom 1.Unplug the Power Cord of the washer. Cover 2.Gently lay down the front side of washer on a soft mat or Front Back cushion.(Becareful not to dent the Frame.) 3.Insert the attached Bottom Cover into the hooks of Leg by straightly pushing until it reaches into the front hooks. -
Page 5: The Preparation Of Laundry Before Washing
INSTALLATION INSTRUCTIONS NAMES AND FUNCTIONS OF CONTROL PANEL Hydrosonic 1.TIMER And PRESET Indicators ● This indicator shows remained time during washing. (E.g.) Remaining time is 20 minutes ● When setting COURSE, the digital display indicates time or times. (E.g.) Two times Rinse ●... -
Page 6: Normal Usage
NORMAL USAGE HOW TO USE THE CUSTOMIZED PROGRAM 1. Preparation: Fit the Drain hose, turn the water supply faucet on, 1. Preparation plug the Power Cord into a socket, put clothes inside. 1) Make sure to fit the Drain hose. 2. -
Page 7: Remember Function
VARIOUS FUNCTIONS VARIOUS FUNCTIONS PRESET TWO CLEAN STEPS FUNCTION 1. Press POWER ON/OFF button and make sure to fit the Drain Hose. The washer will start washing when water to the level below 2 levels as set. By this, 2. Turn the faucet on and load the laundry into the washer. the washer starts working with more density of detergent. -
Page 8: Trouble Shooting Guide 1
TROUBLE SHOOTING GUIDE Trouble Indication When the following problems occur, the microcomputer will detect the abnormal condition and an electronic buzzer sounds for approximately 10 seconds and the indicators flash as shown below. At the same time, the washer stops operation. NOTE: The trouble indicators can be released by pressing the START/PAUSE button once if you want to release the emergency stop.
