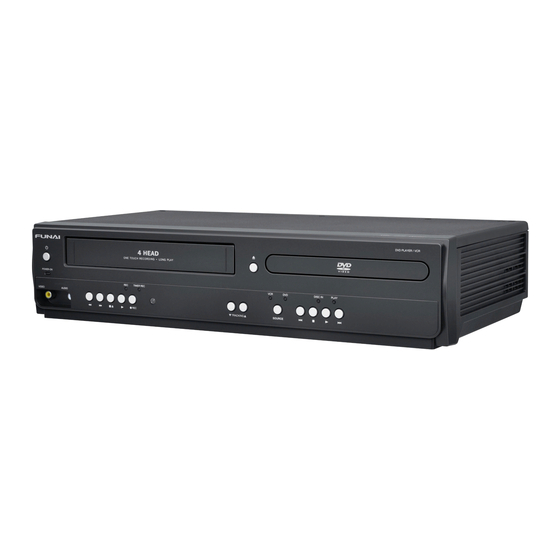

- Page 1 DV220FX4 DV220FX4 A DVD Player/VCR with Line-in Recording Owner’s Manual © 2013 Funai Electric Co., Ltd.
-
Page 2: Precautions
PRECAUTIONS PRECAUTIONS Safety Instructions The model and serial numbers of this unit may be found on the cabinet. Model No.: You should record and retain those numbers for future reference. Serial No.: WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. - Page 3 PRECAUTIONS CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire, or the like. LASER SAFETY This apparatus is classified as a CLASS 1 LASER PRODUCT.
-
Page 4: Table Of Contents
LIMITED WARRANTY· · · · · · · · · · · · · · · · · · · · · back cover Supplied Accessories FUNAI is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent RCA audio/video cables of Funai. -
Page 5: About Cassette Tapes And Discs
PREPARATION About Cassette Tapes and Discs Playable Media Cassette Media Type DVD-VIDEO DVD-RW DVD-R CD-DA CD-RW CD-R Tape Logo Symbols used Audio Audio CD Audio Audio CD DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Audio CD in this manual Recorded analog digital video (MPEG2) digital audio Signal video... -
Page 6: Function Overview
PREPARATION Function Overview Remote Control Button names described in this Owner’s Manual The instructions in this manual rest primarily on the premise that you will operate using the remote control (Please be informed that some operations can only be made on the front panel of the unit). 5. - Page 7 PREPARATION 26. G (DVD) p.15 12. TITLE (DVD) p.16 • Press to call up the top menu on disc. (DVD) • Press to skip chapters / titles. (DVD) Pulse para visualizar el menú principal del disco. (DVD) Pulse para saltar capítulos o títulos. (DVD) •...
-
Page 8: Front Panel
PREPARATION Front Panel 9 10 POWER ON TIMER REC DISC IN PLAY VIDEO AUDIO TRACKING SOURCE 13 14 15 17 18 24 25 L2 input jacks 1. y y p.14 16. C A (VCR) p.14 • Press to turn On the unit, or to turn the unit into the Standby mode. -
Page 9: Rear Panel
PREPARATION Rear Panel DVD/VCR COMPONENT DIGITAL AUDIO S-VIDEO AUDIO OUT VIDEO OUT AUDIO OUT AUDIO IN COAXIAL VIDEO OUT VIDEO IN 6 7 8 1. DVD/VCR AUDIO OUT jack p.10 7. DVD/VCR VIDEO OUT jack p.10 • Connect an RCA audio cable from here to the •... -
Page 10: Connections
To audio L To audio R To video (White) input jack input jack input jack PREPARATION (White) (Red) (Yellow) (Red) (Red) Connections (Yellow) (Yellow) Connection to a TV If Your TV Has an Antenna In Jack Only y y If Your TV Has an Antenna In Jack Only Before connecting, make sure the Power on the devices are turned Off. - Page 11 Listed below are inputs for common brand name TV’s. Admiral: KENWOOD: Samsung: TV/VIDEO Curtis Mathis: LINE1, LINE2, LXI-Series: SANYO: VIDEO 00, 90, 91, 92, 93 Funai: AUX CHANNEL SHARP: INPUT, TV/VCR, 00, 90, 91, Panasonic: TV/VIDEO SONY: VIDEO1, VIDEO2, VIDEO3 92, 93 RCA:...
-
Page 12: Connection To An Audio System
PREPARATION Connection to an Audio System Playing Analog Audio Playing Analog Audio this unit analog audio stereo system DVD/VCR input jacks DIGITAL AUDIO S-VIDEO COMPONENT AUDIO OUT VIDEO OUT AUDIO OUT AUDIO IN AUDIO IN COAXIAL To audio L VIDEO OUT VIDEO IN output jack DVD/VCR... -
Page 13: Initial Setups
PREPARATION Initial Setups Turning On Unit for the First Time Clock Setting Press first. Press first. Please note: most instructions in this manual refer to remote control use. SETUP Be sure your TV’s input is set to VIDEO. (Name may Press and use to select “CLOCK SET”. -
Page 14: Basic Operations
BASIC OPERATIONS BASIC OPERATIONS ASIC PLAYBACK Before: Turn on the TV. For VCR Playback For Disc Playback Inser sert a cassette tape so that the sert ert a cassette tape so that the a ca te ta e tape so that tape so tha tape so th ape so... -
Page 15: Hint For Disc Playback
BASIC OPERATIONS Hint for Disc Playback Slow Forward Playback The contents of DVD are generally divided into “titles”. DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Press first. Titles may be further subdivided into “chapters”. Press [PAUSE F] during playback, then press [g] The audio CD contains “tracks”. -
Page 16: Advanced Playback
ADVANCED PLAYBACK ADVANCED PLAYBACK Disc Menu Camera Angles Some DVD may contain scenes which have been shot DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Press first. simultaneously from the various angles. You can change Some discs contain menus which allow you to customize the camera angle if appears on the TV screen. -
Page 17: Index Search
ADVANCED PLAYBACK Index Search Repeat Playback Repeat function is available only during playback. Press first. 1) Press [SEARCH] once. DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Audio Audio CD Audio Audio CD Audio CD Press first. 2) Use [K] or [L] to select a desired index number. 1) During playback, press [REPEAT]. -
Page 18: Programmed Playback
ADVANCED PLAYBACK Note: • Up to 20 chapters or tracks can be ordered. Programmed Playback • To erase all the programs at once, select “ALL You can change the playback order of chapters / tracks. CLEAR’’ and press [OK] or press [CLEAR] in program input. -
Page 19: Subtitle Language And Audio Language
ADVANCED PLAYBACK On-Screen Display Subtitle Language and Audio Language You can refer to the various information on the screen You can refer to t This unit allows you to select a subtitle (if available) or an an when you press [DISPLAY] audio language (if multiple languages are available for Press first. -
Page 20: Recording
RECORDING RECORDING Before: Turn on the TV. This unit has no t no tu o tuner system so it can o tu tuner system so it ca em m so i m so it cannot receive TV broadcasts without external tuner or such devices. m m so i m so annot receive TV broadcasts... -
Page 21: Timer Recording
RECORDING To Check, Correct or Cancel a Timer Prog g g To Check, Correct or Cancel a Timer Program To Check, Correct or Cancel a Timer Program gram Timer Recording 1) Press [TIMER SET], and then press [VCR ] on the Press first. -
Page 22: Satellite Link
RECORDING Note: • Recording picture will be distorted if the copy Satellite Link protection signal is being detected during satellite link. You can set the unit to start recording whenever it detects • When the timer recording and the satellite link a video signal from the external tuner. -
Page 23: Optional Settings
OPTIONAL SETTINGS OPTIONAL SETTINGS Changing the DVD Settings (in the setup menu) In the setup menu, you can customize the various kinds of settings as you prefer. Refer to the following instructions to navigate through the setup menus. 1) Press [SETUP]. 2) Use [s / B] to select a setup item. -
Page 24: Parental Setting
OPTIONAL SETTINGS Press first. CONTROL LEVELS • Level 8: DVD software of any grades (adult/ Press [C] if you are playing back a disc. general/children) can be played back. • Levels 7 to 2: only DVD software intended for general use and for children. -
Page 25: Initialize
OPTIONAL SETTINGS INITIALIZE Reset the settings to factory default. SETUP Press to call up the setup menu. to select , then press Press to select “YES”, then press INITIALIZE_INITIALIZE INITIALIZE Press to select the desired language. SELECT MENU LANGUAGE ENGLISH FRANÇAIS ESPAÑOL The next time you operate, the player menu language... -
Page 26: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Troubleshooting Guide If this unit does not perform properly when operated as instructed in this manual. Refer to the following: Symptom Remedy No power. • Make sure the power plug is connected to an AC outlet. • Make sure the power is turned on. This unit does not respond to the •... -
Page 27: Information
INFORMATION INFORMATION Maintenance Servicing g g Servicing Auto Head Cleaning g g Auto Head Cleaning • Please refer to relevant topics on the “Troubleshooting • Automatically cleans video heads as you insert or Guide” on page 26 before returning the product. remove a cassette tape, so you can see a clear picture. -
Page 28: Limited Warranty
