Free Standing Appliance
条形码
DA68-02439C-16

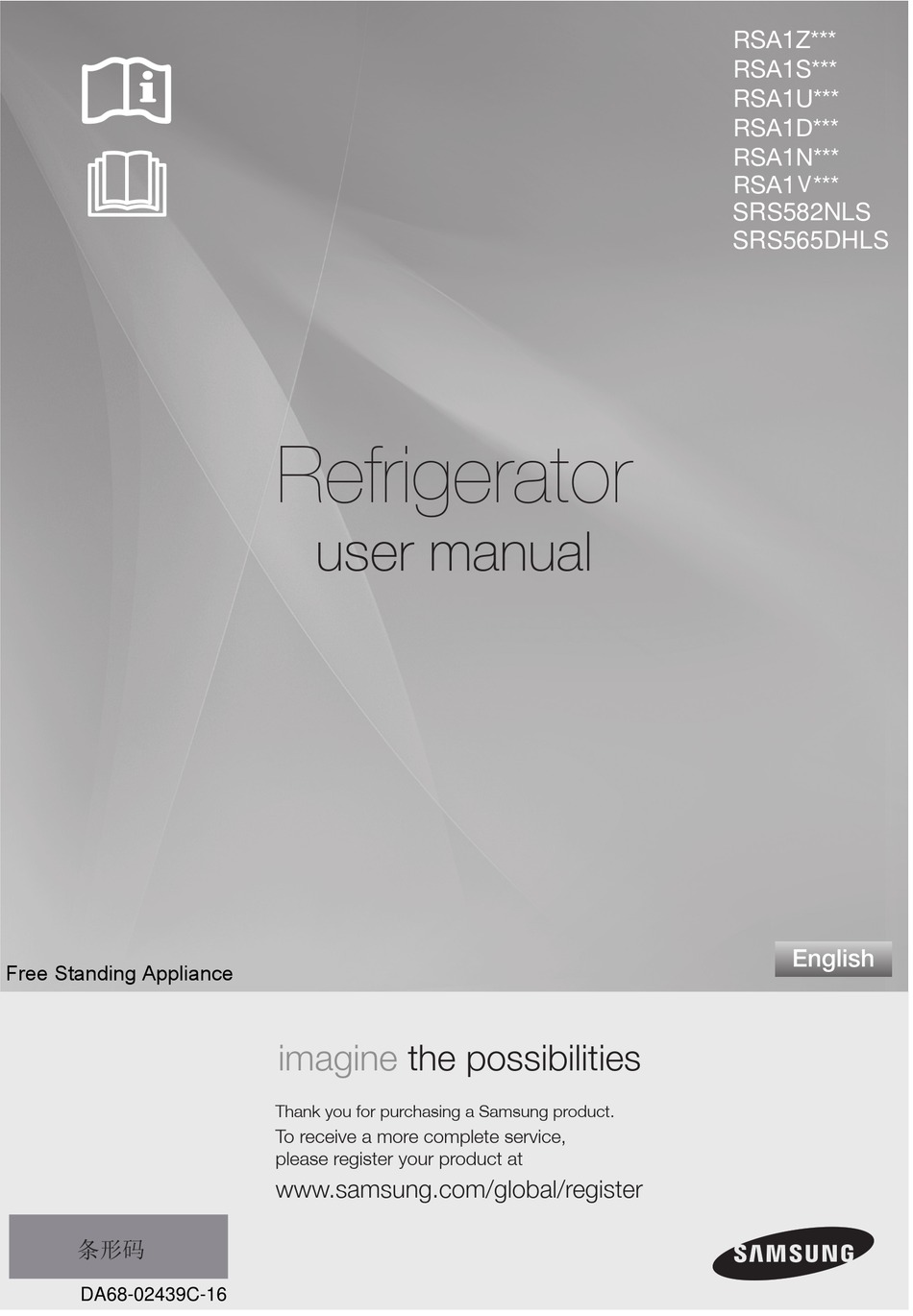

Refrigerator
user manual
imagine
the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
RSA1Z***
RSA1S***
RSA1U***
RSA1D***
RSA1N***
RSA1 ***
V
SRS582NLS
SRS565DHLS
English
Advertisement
Table of Contents
Related Manuals for Samsung RSA1V Series
Summary of Contents for Samsung RSA1V Series
-
Page 1: User Manual
RSA1Z*** RSA1S*** RSA1U*** RSA1D*** RSA1N*** RSA1 *** SRS582NLS SRS565DHLS Refrigerator user manual English Free Standing Appliance imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register 条形码 DA68-02439C-16... -
Page 2: Key Features Of Refrigerator
KEy fEaturEs of your nEw rEfrigErator Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and energy-efficient features. • HiDDEn HingEs & Door s/w Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view. -
Page 3: Safety Information
safety information SAFETY INFORMATION • Before operating the appliance, please read this WARNING manual thoroughly and retain it for your reference. • Because these following operating instructions WARNING cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual. CAUTION/WARNING SYMBOLS USED Indicates that a danger of death or serious injury exists. WARNING Indicates that a risk of personal injury or material damage exists. CAUTION OTHER SYMBOLS USED Represents something you must NOT do. Represents something you must NOT disassemble. Represents something you must NOT touch. Represents something you must follow. Indicates that you must disconnect the power plug from the socket. Represents a ground is needed to prevent electric shock. It is recommended that this symbol be handled by service man. These warning signs are here to prevent injury to you and others. - Page 4 safety information • This refrigerator must be properly installed and located in accordance with the manual before it is used. • Use this appliance only for its intended purpose as described in this instruction manual. • We strongly recommend that any servicing be performed by a qualified individual. • R600a or R134a can be used as a refrigerant. Check the compressor label on the rear of the appliance and the rating label inside the fridge to see which refrigerant is used for the refrigerator. • In case of R600a refrigerant, this gas is natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. • Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. • In order to avoid the creation of a flammable gas-air WARNING mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. • Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. • The room must be 1m in size for every 8g of R600a refrigerant inside the appliance.
- Page 5 safety information shown on the identification plate inside the appliance. • Please dispose of the packaging material for this product in an environmentally friendly manner. • Pull the power plug out of the socket before changing the interior light of the refrigerator. - Otherwise, there is a risk of electric shock. SEVERE WARNING SIGNS • Do not install the refrigerator in a damp place or place WARNING where it may come in contact with water. - Deteriorated insulation of electrical parts may cause an electric shock or fire. • Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or other appliance. • Allow sufficient space to install the refrigerator on a flat surface. - If your refrigerator is not level, the internal cooling system may not work correctly. • Do not plug several appliances into the same multiple power board. The refrigerator should always be plugged into its own individual electrical which has a voltage rating that matched the rating plate. - This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires. • Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
- Page 6 safety information and/or electric shock. • Make sure that the power plug is not squashed or damaged by the back of the refrigerator. • Do not bend the power cord excessively or place heavy articles on it. - This constitutes a fire hazard. • Have the power cord repaired or replaced immediately by the manufacturer or its service agent if power cord has become frayed or damaged. • Do not use a cord that shows cracks or abrasion damage along its length or at either end. • If the power cord is damaged, have it replaced immediately by the manufacturer or its service agent. • When moving the refrigerator, be careful not to roll over or damage the power cord. • Do not insert the power plug with wet hands. • Unplug the refrigerator before cleaning and making repairs. • Do not use a wet or damp cloth when cleaning the plug. • Remove any foreign matter or dust from the power plug pins. - Otherwise there is a risk of fire. • If the refrigerator is disconnected from the power supply, you should you should wait for at least ten minutes before plugging it back.
- Page 7 • The refrigerator must be grounded. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. • Never use gas pipes, telephone lines or other potential lightening rods as ground. - Improper use of the ground plug can result in electric shock. • Do not dissemble or repair the refrigerator by yourself. - You run risk of causing a fire, malfunction and/or personal injury. • If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung electronics service center. • Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction. • Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not damage the refrigerant circuit. • Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer. • The appliance is not intended for use by persons (including children) with reduced physical, sensory safety information _7...
- Page 8 safety information or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Do not let children hang on the door. If not, a serious injury may occur. • Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite. • If the refrigerator is not to be used for a long period of time, pull out the power plug. - Deterioration in the insulation may cause fire. • Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage. • It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation or Licence for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers. (For...
- Page 9 safety information Australia only) CAUTION SIGNS • This product is intended only for the storage of food in a domestic environment. CAUTION • Manufacturer’s recommended storage times should be adhered to. Refer to relevant instructions • Bottle should be stored tightly together so that they do not fall out. • Do not place carbonated or fizzy drinks in the freezer compartment • Do not overfill the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage. • Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury. • Do not spray inflammable gas near the refrigerator. - There is a risk of explosion or fire. • Do not directly spray water inside or outside the refrigerator. - There is a risk of fire or electric shock. • Do not store volatile or flammable substances in the refrigerator. - The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
- Page 10 safety information • Do not re-freeze frozen foods that have thawed completely. • Do not store pharmaceuticals products, scientific materials or temperature-sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator. • Do not put a container filled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock. • Do not apply strong shock or excessive force onto the surface of glass. - Broken glass may result in a personal injury and/or property damage. CAUTION SIGNS FOR CLEANING • Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury. • Never put fingers or other objects into the dispenser hole and ice chute.
- Page 11 safety information WARNING SIGNS FOR DISPOSAL • When disposing of this or other refrigerator/s, remove the door/door seals, door latch so that small children or animals cannot become trapped inside. • Leave the shelves in place so that children may not easily climb inside. • R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. When this product contains flammable gas(Refrigerant R600a) contact your local authority in regard to safe disposal of this product. • Cyclopentane is used as a insulation blowing gas. The gases in insulation material require special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. The pipes shall be broke in the open space. In the event of a power failure, call the local office of CAUTION your Electricity Company and ask how long it is going to last. Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door safety information _11...
- Page 12 safety information openings while the power is off.But should the power failure last more than 24hours, remove all frozen food. For doors or lids with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.
- Page 13 safety information • There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. But, remove all the food if you are going away for the three weeks or more. Unplug the refrigerator and clean it, rinse and dry. • Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more than 24hours, remove all frozen food. • If the key is provided with refrigerator, the keys should be kept out of the reach of children and not in the vicinity of the appliance. • The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed. • Do not store food which goes bad easily at low temperature, such as bananas, melons. • Place the ice tray at the originally provided posistion by manufacturer in order to achieve optimal ice- freezing. • Your appliance is frost free, which means there is no need to manually defrost your appliance, as this will be carried out automatically. • Temperature rising during the defrost can comply safety information _13...
- Page 14 safety information with ISO requirement. But If you want to prevent an undue rise in the temperature of the frozen food while defrosting the appliance, please wrap the frozen food in several layers of paper such as newspaper. • Any increase in temperature of frozen food during defrosting can shorten its storage life. SAVING ENERGY TIPS • Install the appliance in a cool, dry room with adequate ventilation. • Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example). • Never block any vents or grilles on the appliance. • Allow warm food to cool down before placing it in the appliance. • Put frozen food in the refrigerator to thaw.You can then use the low temperatures of the frozen products to cool food in the refrigerator. • Do not keep the door of the appliance open for too long when putting food in or taking food out. • The shorter time for which the door is open, the less ice will form in the freezer. • Clean the rear of the refrigerator regularly. Dust increases energy consumption. • Do not set temperature colder than necessary. • Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not 14_ safety information...
- Page 15 safety information cover air vent openings. • Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower. safety information _15...
-
Page 16: Table Of Contents
Leveling the refrigerator seTTING UP yOUR sIde-by-sIde Making minor adjustments to the doors RefRIGeRATOR Checking the water dispenser line(optional) Installing the water dispenser line OPeRATING The sAMsUNG Setting up the refrigerator sIde-by-sIde RefRIGeRATOR Operating the refrigerator Using the digital display Controlling the temperature Using the ice and cold water dispenser... -
Page 17: Setting Up Your Side-By-Side Refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and efficiencies that this new appliance has to offer. Selecting the best location for the refrigerator •... -
Page 18: Removing The Refrigerator Doors
REMOVING THE REFRIGERATOR DOORS If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors. 1. Removing the Front Leg Cover First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the three screws counter-clockwise. -
Page 19: Setting Up Your Side-By-Side Refrigerator
setting up your side-by-side refrigerator 2. Removing the freezer door A few things to mention first. • Make sure that you lift the door straight up so the hinges are not bent or broken. • Be careful not to pinch the water tubing and wire harness on the door. • Place doors on a protected surface to prevent scratching or damage. -
Page 20: Removing The Fridge Door
Removing the Fridge Door 1. With the door closed, remove the upper hinge cover using a screwdriver. . Remove hinge screws and the ground screw by turning counter-clockwise, and take off the upper hinge . Be careful that the door does not fall on you as you are removing it. . Remove the door from the lower hinge by lifting the door straight up 0_ setting up... -
Page 21: Reattaching The Refrigerator Doors
setting up your side-by-side refrigerator rEattaCHing tHE rEfrigErator Doors Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on. Reattaching the Freezer Door 1. Insert the upper hinge shaft into the hole on the corner of the freezer door . -
Page 22: Reattaching The Fridge Door
Reattaching the Fridge Door 1. Fit the hole in the corner of the fridge door over the lower hinge . Insert the upper hinge shaft into the hole on the hinge . Make sure the hinge is level between the upper hinge hole and the hole on the top of the cabinet . - Page 23 setting up your side-by-side refrigerator Reattaching the Water Supply Line 1. Insert the water line into the coupler 2.The Water Line must be fully Inserted to the center of transparent coupler to prevent water leakage from the dispenser. 3.Insert the clip in the install pack and check that it holds the line fi rmly. Center of transparent coupler clip A (1/4”)
-
Page 24: Leveling The Refrigerator
LEVELing tHE rEfrigErator Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can then make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even. -
Page 25: Making Minor Adjustments To The Doors
setting up your side-by-side refrigerator MaKing Minor aDjustMEnts to tHE Doors Remember, a leveling refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. When the door of the freezer is higher than the fridge adjustment part In the case of the process to correct the imbalance is the same. Open the doors and adjust them, one at a time, as follows: 1. Unscrew the nut from the lower hinge until it reaches the upper end of the bolt... -
Page 26: Checking The Water Dispenser Line(Optional
CHECKing tHE watEr DisPEnsEr LinE (oPtionaL) A water dispenser is just one of the helpful features on your new Samsung refrigerator. To help promote better health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. - Page 27 setting up your side-by-side refrigerator LINE OUTLET select the location where the filter is to install. (Model with the filter) - If you wish to reassemble the water inlet and out- 90 degree SIDE OF let sides of the filter during filter installation, FILTER see the reference illustration.
-
Page 28: Connect The Water Line To The Refrigerator
Connect the water line to the refrigerator. WATER LINE CONNECTION NUT - Remove the compressor cover of the refrigerator. - Connect the water line to the valve, as shown in the figure. - When connected, check if there is any leakage. If any, repeat the connection. - Page 29 setting up your side-by-side refrigerator Removing any residual matter inside the water supply line after installing filter. 1. Turn ON the main water supply & turn OFF the valve to the water supply line. 2. Run water through the dispenser until the water runs Water clear (approx.
-
Page 30: Operating The Samsung
If you have any further questions, contact your Samsung Electronics service center. 1. Place the refrigerator in an appropriate location with reasonable clearance between the wall and the refrigerator. -
Page 31: Operating The Refrigerator
OPERATING THE REFRIGERATOR Using the Control Panel RSA1Z/U/D, SRS565DHLS RSA1S/N/V, SRS582NLS Speeds up the time needed to freeze products in the freezer. This can POWER FREEZE be helpful if you need to quickly freeze items that spoil easily or if the BUTTON temperature in the freezer has warmed dramatically (For example, if the door was left open). -
Page 32: Side-By-Side Refrigerator
SAMSUNG side-by-side refrigerator USING THE DIGITAL DISPLAY “88” segment on Freezer part indicates the current Freezer temperature. “88” segment on Fridge part indicates the current Fridge temperature. RSA1Z/U/D, SRS565DHLS RSA1S/N/V, SRS582NLS Power Freeze This icon will light up when you activate the “Power Freeze” feature. “Power Freeze” is great for times when you need a lot of ice. -
Page 33: Controlling The Temperature
Filter Indicator When the filter indicator light is on, it is time to change the filter. Typically this happens about every 6 months. After removing the old water filter and installing a new one (see page 26 for instructions on how to do this), reset the indicator status light by pressing the Ice Type button for about 3 seconds. -
Page 34: Using The Ice And Cold Water Dispenser
SAMSUNG side-by-side refrigerator using tHE iCE anD CoLD watEr DisPEnsEr Press the Ice Type button to select the type of ice you want No Ice Select this if you want to turn off the icemaker Ice is made in cubes. When you select “Crushed”, the icemaker grinds the ice cubes into crushed ice. -
Page 35: Shelves And Bins
sHELVEs anD Bins Freezer Ice Maker Bo Ice Maker Bucket (Optional) (Optional) Lamp Cover Ice Chute (Optional) Glass Shelves Door Bins Drawers (Optional) Front Leg Cover Fridge Lamp Cover Dairy Bin Glass Shelf Tray Utility Beverage Station (Optional) Door Bins Vegetable &Fruit Drawers (Optional) -
Page 36: Storing Food
Storing Food in the Freezer The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum spacesaving features and functions. Here are some of the customized compartments we have created to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored food should be wrapped securely and as airtight as possible. -
Page 37: Coolselect Duo (Optional)
Storing Food in the Freezer Do not put your fingers, hands or any other objects in the ice ICe ChUTe chute or the ice maker bucket. This may result in personal injury WARNING or material damage. Can be used to store all types of frozen shelVes food. - Page 38 SAMSUNG side-by-side refrigerator using tHE Coolselect Duo (oPtionaL) The CoolSelect Duo is designed to make your busy life just a little bit easler. Meat When MEat is selected, the temperature of the CoolSelect Duo is suitable for storing meat or ham by entering chill of freezer to it.
-
Page 39: Removing The Freezer Accessories
REMOVING THE FREEZER ACCESSORIES Cleaning and rearranging the interior of the freezer is a snap. 1. Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and remove it. In case it does not have hooks itself in the back Block Hook side for not being tilted,a shelf should be placed... -
Page 40: Removing The Fridge Accessories
side-by-side refrigerator REMOVING THE FRIDGE ACCESSORIES 1. Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and gently remove it. In case it does not have hooks itself in the back Block Hook side for not being tilted,a shelf should be placed... -
Page 41: Cleaning The Refrigerator
SAMSUNG side-by-side refrigerator CLEaning tHE rEfrigErator Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor and germ-free. Cleaning the Interior Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. -
Page 42: Changing The Interior Lights
SAMSUNG side-by-side refrigerator CHANGING THE INTERIOR LIGHTS Do not replace LED lamp privately and please contact the specialized repair staff if necessary. WARNING And make it sure that the new LED lamp is the same as the old one. -
Page 43: Using The Doors
using tHE Doors The refrigerator doors are equipped with a door opening and closing feature that ensures that the doors close all the way and are securely sealed. After opening beyond a certain point, the door will “catch” and remain open. When the door is ajar ahead of the catch that allows it to stay open, it will close automatically. - Page 44 troubleshooting PRObleM sOlUTION the refrigerator does not • Check that the power plug is properly connected. work at all or it does not • Is the temperature control on the display panel set to the correct chill sufficiently. temperature? Try setting it to a lower temperature. • Is the refrigerator in direct sunlight or located too near a heat source? • Is the back of the refrigerator too close to the wall and therefore keeping air from circulating?
- Page 45 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) English This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
- Page 46 MEMO...
- Page 47 MEMO...
- Page 48 (852) 3698 4698 www.samsung.com/hk_en (English) 1800 3000 8282 INDIA www.samsung.com/in 1800 266 8282 MALAYSIA 1800-88-9999 www.samsung.com/my NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz www.samsung.com/latin (Spanish) PANAMA 800-7267 www.samsung.com/latin_en (English) 1-800-10-7267864 [PLDT] PHILIPPINES 1-800-8-7267864 [Globe landline and Mobile] www.samsung.com/ph 02-4222111 [Other landline]...
