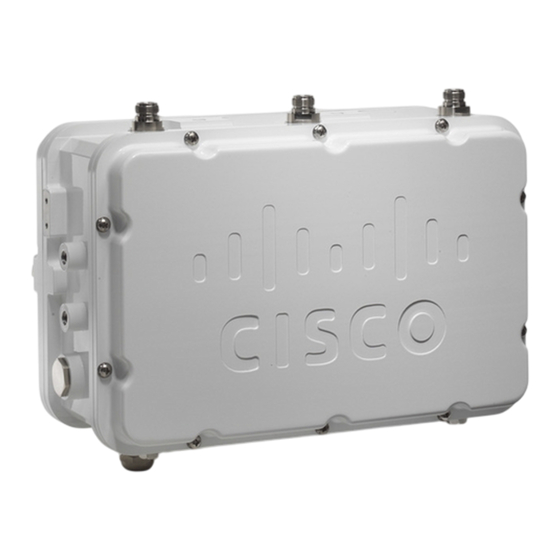

Cisco Aironet 1520 Series Getting Started Manual

Outdoor mesh access point
Hide thumbs Also See for Aironet 1520 Series:
Table of Contents

Advertisement

Quick Links

G
S
ETTING
TARTED
Cisco Aironet 1520 Series Outdoor Mesh Access Points
INCLUDING LICENSE AND WARRANTY
1
About this Guide
2
Introduction to the Access Point
3
Unpacking the Access Point
4
Becoming Familiar With the Access Point
5
Network Deployment Examples
6
Preparing the Access Point
7
Deploying the Access Point
8
In Case of Difficulty
9
Cisco 90-Day Limited Hardware Warranty Terms
G
UIDE

Advertisement

Table of Contents
loading

Related Manuals for Cisco Aironet 1520 Series

Summary of Contents for Cisco Aironet 1520 Series

  • Page 1 ETTING TARTED UIDE Cisco Aironet 1520 Series Outdoor Mesh Access Points INCLUDING LICENSE AND WARRANTY About this Guide Introduction to the Access Point Unpacking the Access Point Becoming Familiar With the Access Point Network Deployment Examples Preparing the Access Point...

  • Page 2: About This Guide

    Click Wireless under View Information by Product Type. The Select Your Product or Technology page appears. Enter Cisco Aironet 1520 Series in the Search for a Specific Product field and click Go. The Step 4 Cisco Aironet 1520 Series Introduction page appears.

  • Page 3: Declaration Of Conformity With Regard To The Eu Directive 1999/5/Ec (R&Tte Directive)

    Translated versions of the safety warnings in this guide are provided in the Safety Warnings for Cisco Aironet 1520 Series Outdoor Mesh Access Points document that accompanies this guide. The translated warnings are also in Appendix A of the Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide, which is available at cisco.com.

  • Page 4: Introduction To The Access Point

    Statement 1040 Introduction to the Access Point The Cisco Aironet 1520 Series Outdoor Mesh Access Point (hereafter called the access point) is a modularized outdoor access point designed for service in mesh networks. The access point can be configured for one or two radio operation. Its 802.11b/g radio is used primarily for local access and its 802.11a radio is used to provide wireless backhaul in the mesh.

  • Page 5: Unpacking The Access Point

    Step 2 Ensure that all items listed in the “Package Contents” section are included in the shipment. Step 3 Check each item for damage. If any item is damaged or missing, notify your authorized Cisco sales representative. Package Contents Each access point package contains the following items: •...

  • Page 6: Optional Equipment

    • Cisco Aironet 1520 Series Outdoor Mesh Access Point Mounting Instructions • Translated Safety Warnings for Cisco Aironet 1520 Series Outdoor Mesh Access Points • This guide Optional Equipment Depending on what you ordered, the following optional equipment may be part of your shipment: •...
  • Page 7 Figure 1 shows the access point bottom connectors. Figure 1 Access Point Bottom Connectors AC power connector Power-over-Ethernet (PoE) Out Ethernet connector Reserved for future use LEDs Antenna port 6 Antenna port 4 Fiber optic connector PoE-In Ethernet connector Antenna port 5 is not shown in this illustration. The port is reserved for future use and will Note be located midway between antenna ports 4 and 6.
  • Page 8 Figure 2 shows the access point left side and top connectors. Figure 2 Access Point Left Side and Top Connectors Fiber connector Antenna port 2 Cable Power over Cable (PoC) connector Antenna port 3 Antenna port 1...

  • Page 9: Radio Operation

    Figure 3 shows the access point right side connections. Figure 3 Access Point Right Side Connections Ground screw holes DC power connector Radio Operation The 2.4-GHz radio supports three antennas for multi-input, single output (MISO) operation. The radio uses three receivers to support maximum ratio combining (MRC) to enhance receiver performance.

  • Page 10: External Antennas

    4, 5, and 6) on the bottom of the unit for external antennas as shown in Figure 2. When using the optional Cisco compact omnidirectional antennas, the 2.4- and 5-GHz antennas connect directly to the access point. The Cisco omnidirectional antennas use vertical polarization.

  • Page 11: Antenna Configurations

    To reduce potential radio interference to other users, the antenna type and its gain should be Note chosen so that the equivalent subtropical radiated power (EIRP) is not more than required for successful communication. Table 1 lists the supported external 2.4- and 5-GHz antennas. Table 1 External 2.4- and 5-GHz Antennas Part Number...
  • Page 12 Table 2 Antenna Ports and Configurations (continued) Product Configuration Antenna Port Cable Strand Mount Pole Mount (Two Antenna Receive MRC Access and (Three Antenna Receive MRC Access and One Backhaul) One Backhaul) No connection 2.4-GHz receive only No connection No connection No connection 2.4-GHz transmit and receive Power...
  • Page 13 Warning Connect the unit only to DC power source that complies with the Safety Extra-Low Voltage (SELV) requirements in IEC 60950 based safety standards Statement 1033 • Internal 6 ampere-hour battery The access point can be connected to more than one power source. The access point detects available input sources and switches to the preferred power source using the following prioritization: •...

  • Page 14: Ethernet (Poe) Ports

    When the access point is installed outdoors or in a wet or damp location, the AC branch Caution circuit that is powering the access point should be provided with ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC). Three AC power cord options are available: •...

  • Page 15: Cable Option

    For detailed installation information about the fiber option, see the Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide. Configuration information can be found in the controller configuration guide of the controller you are using.

  • Page 16: Wireless Backhaul

    RAPs, each one parenting the same or different wireless networks. There can be more than one RAP for the same mesh network for redundancy. RAPs and MAPs can support wireless clients on the 2.4-GHz band. When the access point does not have a wired Ethernet connection to the controller (through a switch), the radio role is called a MAP.

  • Page 17: Point-To-Multipoint Bridging

    Figure 5 Point-to-Point Bridging Example Point-to-Multipoint Bridging The access points can be used as a RAP to connect multiple remote MAPs with their associated wired networks. By default this capability is turned-off for all access points. To support Ethernet bridging, you must enable bridging on the controller for each access point.

  • Page 18: Mesh Network

    Mesh Network The access point is typically deployed in a mesh network configuration. In a typical mesh deployment, one or more RAPs have a wired network connection through a switch to a controller. Other remote MAPs without wired network connections use the backhaul feature to optimally link to a RAP that is connected to the wired network.

  • Page 19: Layer 3 Network Operation

    The access points support Layer 3 network operation. Access points and controllers in Layer 3 configurations use IP addresses and UDP packets, which can be routed through large networks. Layer 3 operation is scalable and recommended by Cisco. Figure 8 illustrates a typical Layer-3 wireless network configuration containing access points and a controller.

  • Page 20: Site Surveys

    Site Surveys Cisco recommends that you perform a site survey before installing the equipment. A site survey reveals problems that can be resolved before the network is operational. Because 802.11a is unlicensed, there may be sources of interference from other 802.11a wireless devices (especially in multi-tenant buildings) that could degrade your 802.11 signals.
  • Page 21 To avoid receiver damage and PER degradation, you can use one of the following techniques: • Separate the omnidirectional antennas by at least 2 ft (0.6 m) to avoid receiver damage or by at least 25 ft (7.6 m) to avoid PER degradation. These distances assume free space path loss and are conservative estimates.

  • Page 22: Before You Begin

    For additional installation, mounting and safety information for the outdoor mesh access Note point, see the Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide, which is available on Cisco.com, and Safety Warnings for Cisco Aironet 1520 Series Outdoor Mesh Access Points , which accompanies this guide.
  • Page 23 Verifying the Wireless LAN Controller Mode Follow these steps to verify that the wireless LAN controller mode is set to Layer 3: Open your web-browser and enter the IP address of your wireless LAN controller. Be sure to Step 1 precede the IP address with https://.

  • Page 24: Verifying Controller Association

    Under AAA in the left frame, click MAC Filtering. The Security MAC Filtering page appears. Step 3 Click New. The MAC Filters New page appears. Step 4 Enter the MAC address of the access point in the MAC Address field. You can also use the Step 5 config macfilter add command to add a MAC filter entry to the controller.

  • Page 25: Deployment Notes

    Additional information about Microsoft DHCP Option 43 is available at cisco.com at the following URL: http://www.cisco.com/en/US/products/hw/wireless/ps430/prod_technical_reference09186a00804fc3d c.html#wp125304 DHCP Option 43 server implementation information for Cisco IOS is available at cisco.com at the following URL: http://www.cisco.com/en/US/docs/wireless/technology/controller/deployment/guide/dep.html#wp106 8287 In DHCP Option 43, you should use the IP address of the controller management interface.
  • Page 26 Cisco AP.OAP1500 , Cisco AP.LAP1510 , or Cisco AP.LAP1505 Airespace.AP1200 Cisco Aironet 1520 Series Cisco AP c1520 1. For controller release 4.1 or later. 2. For controller release 4.0, the VCI depends on the model. 3. For controller release 3.2.
  • Page 27 To configure DHCP Option 43 for Cisco 1000 and 1500 (1505 and 1510) series lightweight access points in the embedded Cisco IOS DHCP server, follow these steps: Enter configuration mode at the Cisco IOS command line interface. Step 1 Create the DHCP pool, including the necessary parameters such as default router and name...
  • Page 28 To configure DHCP Option 43 for Cisco Aironet 1100, 1130, 1200, 1240, 1250, 1300, and 1520 series lightweight access points in the embedded Cisco IOS DHCP server, follow these steps: Step 1 Enter configuration mode at the Cisco IOS CLI.

  • Page 29: In Case Of Difficulty

    • The Troubleshooting section of this guide • The troubleshooting section of the Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide • The Troubleshooting a Mesh Network troubleshooting guide found on cisco.com at http://www.cisco.com/en/US/products/ps8368/prod_troubleshooting_guides_list.html...

  • Page 30: Guidelines For Using The Access Point

    IP packets. Layer 3 operation is scalable and is recommended by Cisco. Unless it has a static IP address, a Layer 3 access point on a different subnet than the controller requires a DHCP server on the access point subnet and a route to the controller.
  • Page 31 Figure 9 LEDs Status LED— Displays the current status of Radio 1 Status LED—Displays the status of the access point and power. the 802.11b/g radio. Uplink Status LED—Displays the status of all Radio 2 Status LED—Displays the status of uplink connections (Ethernet, fiber, and the 802.11a radio.

  • Page 32: Misconfigured Access Point Ip Address

    1. All LEDs dark indicates no power is applied. All LEDs amber indicates the access point power supply is on. See the Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide for a detailed description of the LEDs and additional troubleshooting tips.

  • Page 33: Controller Cli

    Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.
  • Page 34 Ninety (90) Days Replacement, Repair, or Refund Policy for Hardware Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.
  • Page 36 Cisco Website at www.cisco.com/go/offices. CCVP, the Cisco logo, and the Cisco Square Bridge logo are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn is a service mark of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, Cisco,...
