An example of a program using GROB
The following program produces the graph of the sine function including a
frame – drawn with the function BOX – and a GROB to label the graph.
is the listing of the program:
«
RAD
131 R B 64 R B PDIM
-6.28 6.28 XRNG –2. 2. YRNG
FUNCTION
'SIN(X)' STEQ
ERASE DRAX LABEL DRAW
(-6.28,-2.) (6.28,2.) BOX
PICT RCL
"SINE FUNCTION"
1 GROB
(-6., 1.5) SWAP
GOR
PICT STO
{ } PVIEW
»

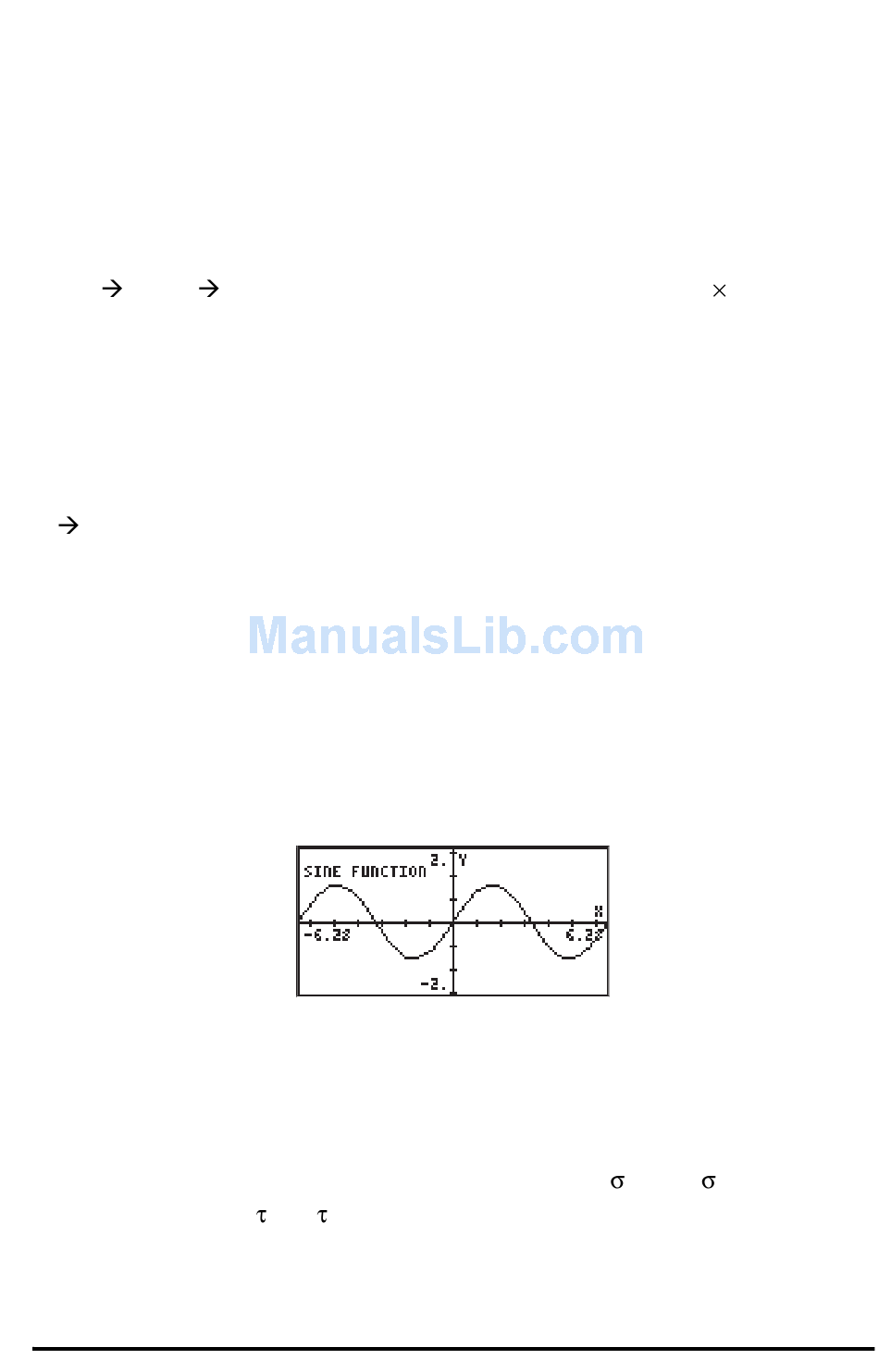

Save the program under the name GRPR (GROB PRogram). Press @GRPR to run
the program. The output will look like this:

A program with plotting and drawing functions

In this section we develop a program to produce, draw and label Mohr's circle
for a given condition of two-dimensional stress. The left-hand side figure below
shows the given state of stress in two-dimensions, with
normal stresses, and = being shear stresses. The right-hand side figure
xy yx
Begin program
Set angle units to radians
Set PICT screen to 131 64 pixels
Set x- and y-ranges
Select FUNCTION type for graphs
Store the function sine into EQ
Clear, draw axes, labels, graph
Draw a frame around the graph
Place contents of PICT on stack
Place graph label string in stack
Convert string into a small GROB
Coordinates to place label GROB
Combine PICT with the label GROB
Save combined GROB into PICT
Bring PICT to the stack
End program
xx
Here
and being
yy
