QuickSpecs

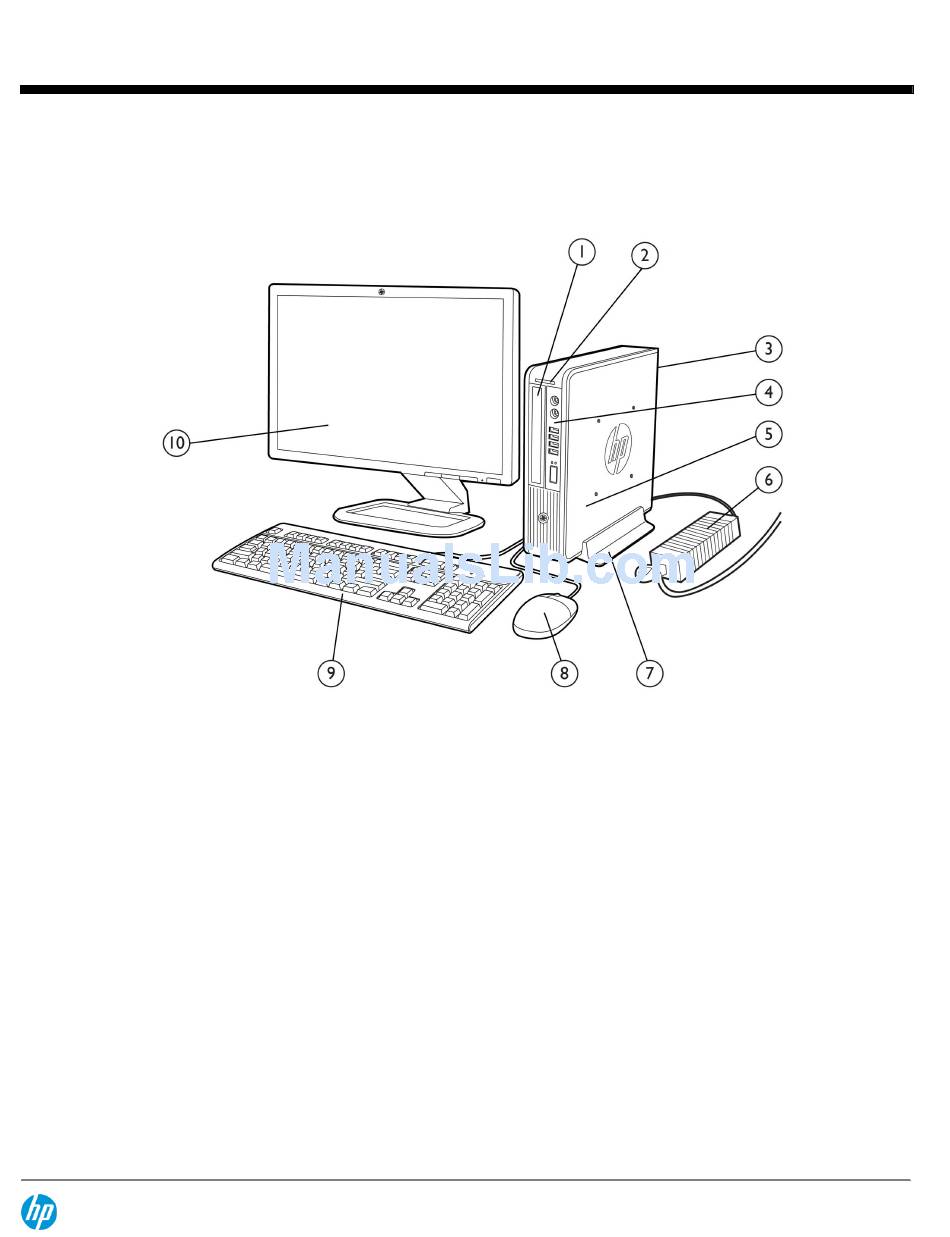

Overview

Optical Disc Drive

Secure Digital (SD) Card Reader (optional)

Rear I/O includes (6) USB 2.0 ports, DisplayPort v1.1a and VGA video interfaces, PS/2 mouse and keyboard ports, RJ-45

network interface, 3.5mm audio in/out jacks

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

2.5" internal hard disk drive bay

135W 87% efficient external Power Adapter or

180W 87% efficient external Power Adapter (when configured with discrete graphics)

HP USDT Tower Stand (optional)

HP Mouse

HP Keyboard

HP Monitor (sold separately)

HP Compaq 8200 Elite Ultra Slim Desktop Business PC

DA - 13879 Worldwide — Version 34 — November 26, 2012

HP Compaq 8200 Elite Series

Page 1

Table of Contents

Summary of Contents for HP Compaq 8200 Elite Series

Page 1 QuickSpecs HP Compaq 8200 Elite Series Overview HP Compaq 8200 Elite Ultra Slim Desktop Business PC Optical Disc Drive Secure Digital (SD) Card Reader (optional) Rear I/O includes (6) USB 2.0 ports, DisplayPort v1.1a and VGA video interfaces, PS/2 mouse and keyboard ports, RJ-45 network interface, 3.5mm audio in/out jacks...

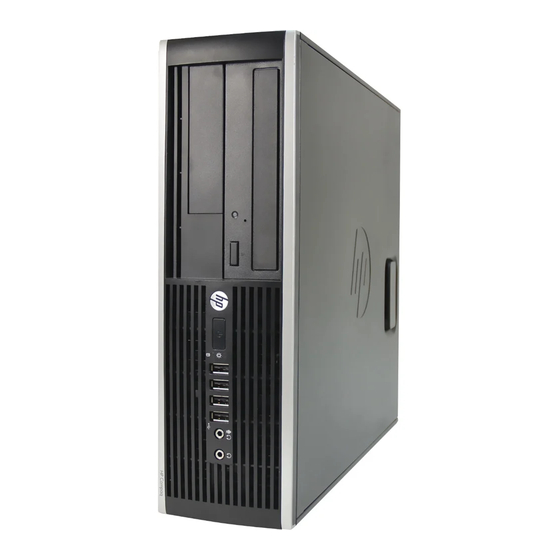

Page 2 HP Compaq 8200 Elite Series Overview HP Compaq 8200 Elite Small Form Factor Business PC Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a and VGA video interfaces, and 3.5mm audio in/out jacks Low profile expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack...
Page 3 RAID configurations 320W standard or 90% high efficiency Power Supply 3.5” external drive bay supporting the HP Media Card Reader Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a and VGA video interfaces, and 3.5mm audio in/out jacks...
Page 4 Overview HP Compaq 8200 Elite Convertible Minitower Business PC (3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader 320W standard or 90% high efficiency Power Supply Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a and VGA video interfaces, and 3.5mm audio in/out jacks...
Page 5 (http://h10019.www1.hp.com/business-site/index.html) Tailored HP Factory Express deployment and lifecycle services available (http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx) Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply) Tool-less serviceability features for easier upgrades and repairs DA - 13879 Worldwide —...
Page 6: Operating Systems
Intel Gigabit CT Desktop NIC Broadcom NetXtreme Gigabit Ethernet Plus HP 22-in-1 Media Card Reader HP ProtectTools HP Blu-ray Writer playback of commercial movies DisplayPort video interface HP 2nd serial port adapter Power Management features Systems configured with Linux do not qualify for ENERGY STAR ††...
Page 7: Hp Client Management Solutions
HP Client Catalog for Microsoft SMS HP SoftPaq Download Manager HP Systems Software Manager Available from your HP Sales Representative or HP Channel Partner HP Business PC Services and Features HP Stable Platform Program Factory Express Deployment and Lifecycle Services...
Page 8 Terms and conditions may vary by country. Certain restrictions and exclusions apply On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country Technical telephone support applies only to HP configured, HP and HP qualified third party hardware and software.
Page 9 Generation Core vPro Processors All HP Compaq 8200 Elite Series models featuring this technology include processors that are part of the Intel 2011 Stable Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq 8200 Elite Series Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today.
Page 10: System Memory Support
Include a preinstalled operating system that is mirrored mode out of the box. Please refer to the HP White Paper titled “Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks (RAID) on HP Compaq 8200 Elite Series PCs” at: http://www.hp.com...
Page 11: Memory Configurations
QuickSpecs HP Compaq 8200 Elite Series Standard Features and Configurable Components (availability may vary by country) Single-channel and dual-channel memory organization modes Data burst length of eight for all memory organization modes DDR3 memory data transfer rates of 1066 MT/s (PC3-8500) and 1333 MT/s (PC3-10600) 64-bit wide channels DDR3 I/O voltage of 1.5V...
Page 12 Data Storage Drives USDT SFF/MT/CMT 160-GB Hard Disk Drives HP 160GB 7.2K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive HP 160GB 10K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive Includes 3.5” adapter 250-GB Hard Disk Drives HP 250-GB 7.2K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive HP 250-GB 7.2K rpm SATA 6.0Gb/s 3.5”...
Page 13 HP 160-GB SATA 3.0Gb/s Solid State Drive Includes 3.5” adapter when installed in SFF, MT or CMT NOTE: Use of HP System Software Recovery Disks (SSRD) is not supported on 80GB or 128GB SSD models due to minimum image size requirements (>=140GB) for the SSRD.
Page 14: Network Interface Connections
IPT, used in conjunction with participating web sites, provides double identity authentication by adding a hardware component in addition to the usual user name and password. IPT is initialized through an HP ProtectTools module...
Page 15 QuickSpecs HP Compaq 8200 Elite Series Standard Features and Configurable Components (availability may vary by country) Graphics USDT SFF/MT/CMT Intel HD Graphics 2000/3000 (integrated) ATI Radeon HD 5450 Graphics (MXM) AMD FirePro 2270 Graphics (PCIe x16) AMD Radeon HD 6350 Graphics (PCIe x16)
Page 16: Input/Output Devices
USDT SFF/MT/CMT HP FireWire IEEE 1394 PCIe x1 Card HP SuperSpeed USB 3.0 PCIe x1 Card HP Serial Port Adapter (RS-232 compatible); provides 2nd Serial Port HP Parallel Port Adapter HP eSATA Port Adapter HP USDT Tower Stand HP SFF Tower Stand...
Page 17: Graphics Solutions
HP 180-GB SATA 3.0Gb/s Solid State Drive C1N42AA NOTE: Use of HP System Software Recovery Disks (SSRD) is not supported on 128GB SSD models due to minimum image size requirements (>=140GB) for the SSRD. DA - 13879 Worldwide — Version 34 — November 26, 2012...
Page 18: Input Devices
QuickSpecs HP Compaq 8200 Elite Series After-Market Options (availability may vary by region) HP eSATA Adapter FH966AA HP Removable SATA Hard Drive Enclosure (frame & carrier) RY102AA HP Removable SATA Hard Drive Enclosure (carrier only) RY103AA Input Devices USDT SFF/MT/CMT...
Page 19: Multimedia Devices
HP Keyed Lock Cable BV411AA HP Client Automation Software USDT SFF/MT/CMT Part Number HP Client Automation – Standard Edition (single seat) T3488AA HP Client Automation – Standard Edition (10 seats) TA599AA HP Client Automation – Standard Edition (100 seats) TA600AA HP Client Automation –...
Page 20 VN568AA HP SFF Tower Stand SFF only VN569AA HP Serial Port Adapter (RS-232 compatible) PA716A HP 5.25” Blank Bezel Kit (50 pack) DC177B HP FireWire IEEE 1394 Card PA997A HP SuperSpeed USB 3.0 Card BM867AA DA - 13879 Worldwide — Version 34 — November 26, 2012...
Page 21: Technical Specifications
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications Weights & Dimensions USDT (configured with 1 HDD & 1 ODD) Chassis 2.6 x 9.9 x 10 in 4.0 x 13.3 x 14.9 in 14.9 x 7.0 x 17.0 in 17.6 x 7.00 x 18.0 in...
Page 22 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications Conventional PCI 1 each 1 each 3 each Revision 2.3 2.5” low profile 4.2” full height 4.2” full height 5-volt 6.6” length 6.6” length 6.6” length 25W max. power 25W max. power 25W max.
Page 23: Power Supply
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications Unit Environment and Operating Conditions General Unit Operating Guidelines Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
Page 24: Rom Bios Information
PXE, remote configuration, remote control, and F10 Setup support for 12 languages. Select models feature either Intel Standard Manageability or Intel Core vPro Processor Technology. Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification.
Page 25: Serviceability Features
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications Other Features Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode. Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state without affecting other elements of the system.
Page 26: Additional Features
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications Additional Features Description Computrace Computrace agent support standard Towerable Orientation Product can be oriented as either a desktop or a tower DPS Access through F10 Setup during Boot A diagnostic hard drive self test. It scans critical physical components and every sector of...
Page 27 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Audio High Definition Audio Type Integrated HD Stereo Codec Realtek 2-channel ALC261 codec Audio I/O Ports Front microphone-In (150-K ohm Input Impedance) Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio...
Page 28 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Audio SRS Premium Sound Technology SRS Premium Sound™ is a state-of-the-art solution suite which optimizes the audio experience for all business applications including VoIP, computer based training, business presentations and digital content creation for any speaker configuration (notebook / desktop speakers or headphones).
Page 29: Technical Specifications - Communications
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Communications Intel 82579LM GbE Network Connection (integrated) Connector RJ-45 System Interface Integrated on PCA Controller Intel 82579LM GbE platform LAN connect networking controller Memory 24 KB FIFO packet buffer memory Data rates supported 10/100/1000 Mbps 802.1P...
Page 30 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Communications Intel Gigabit CT Desktop Network Interface Controller Connector RJ-45 System Interface PCI Express x1 Controller Intel WG82574L Gigabit Ethernet Controller Memory Integrated Dual 48K configurable transmit receive FIFO Buffers Data rates supported...
Page 31 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Communications Platform/WLAN Mode Power Consumption Maximum Power Consumption: 10 Watts Transmit Only 4 Watts maximum averaged power over 1 second 1000 mA peak current for 100 microseconds or Transmit Packet or Active Scanning...
Page 32 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Communications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n...
Page 33 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Communications Microsoft Windows XP Microsoft Windows Vista and Win 7 Configuration Utility Microsoft Windows XP Wireless Network Microsoft Windows Vista Wireless Network Connection Manager Connection Manager Intel PROSet for Microsoft Windows XP...
Page 34: Technical Specifications - Graphics
Graphics/Video API Support OpenGL 3.0 support in hardware Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rates (Hz) Analog...
Page 35 * Only supported when using a DisplayPort connection NOTE: other resolutions may be available but are not recommended as the may not have been tested and qualified by HP NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections AMD FirePro 2270 Graphics Card PCI Express x16 (generation 2.0)
Page 36 DirectX 11 support in hardware. OpenGL 4.0 support in hardware. Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rate (Hz)
Page 37 Supported Graphics APIs DirectX 11 support in hardware. Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rate (Hz) Analog...
Page 38 DirectX 11 support in hardware. OpenGL 4.0 support in hardware Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rate (Hz)
Page 39 Supported Graphics APIs DirectX 10.0 support in hardware Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rate (Hz) Analog...
Page 40 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Graphics 1920 x 1080 60-R 1920 x 1200 60-R 1920 x 1440 2048 x 1536 NOTE: 60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.
Page 41 Max. Power 19.5 W Display Resolutions and Refresh Rates Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rates (Hz) by Connection DisplayPort to VGA...
Page 42: Technical Specifications - Hard Disk Data Storage
HP Drive Lock HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software access to user data on the drive until one or two user-defined passwords are provided.
Page 43 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications – Hard Disk Data Storage HP 160-GB 7.2K SATA 3.0Gb/s 2.5" Hard Disk Drive Capacity 160,041,885,696 bytes Rotational Speed 7,200 rpm Interface Serial ATA 2.0 (3.0 Gb/s) Buffer Size 16 MB Logical Blocks 312,581,808 Single Track: 2.0 ms...
Page 44 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications – Hard Disk Data Storage HP 250-GB 7.2K SATA 3.0Gb/s 2.5" Hard Disk Drive Capacity 250,059,350,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 2.0 (3.0 Gb/s) Buffer Size 8 MB Logical Blocks 488,397,168 Single Track: 2.0 ms...
Page 45 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications – Hard Disk Data Storage HP 300-GB 10K rpm SATA 3.0Gb/s 2.5" Hard Disk Drive Capacity 300,069,052,416 bytes Rotational Speed 10,000 rpm Interface Serial ATA 2.0 (3.0 Gb/s) Buffer Size 16 MB...
Page 46 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications – Hard Disk Data Storage HP 320-GB 7.2K rpm SATA 3.0Gb/s 2.5" Self-Encrypting Hard Disk Drive Capacity 320,072,933,376 bytes Rotational Speed 7,200 rpm Interface Serial ATA 2.0 (3.0 Gb/s) Buffer Size 16 MB...
Page 47 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications – Hard Disk Data Storage HP 750-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive Capacity 750,107,862,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 3.0 (6.0 Gb/s) Buffer Size 16 MB...
Page 48 Actual capacity varies by content and will be less than 15.8GB. NOTE: Use of HP System Software Recovery Disks (SSRD) is not supported on 80GB or 128GB SSD models due to minimum image size requirements (>=140GB) for the SSRD.
Page 49 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Solid State Data Storage HP 120-GB Solid State Drive Unformatted Capacity 120 GB Architecture Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller Interface Serial ATA 2.0 (3.0 Gb/s) Dimensions (W x H x D) 2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm...
Page 50 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Solid State Data Storage Operating Temperature: 32° to 158° F (0° to 70° C) Relative Humidity: 5% to 95% Environmental Maximum Wet Bulb (all conditions, non-condensing) 84° F (29° C) Temperature (operating): Shock: 1,500 G/0.5-ms...
Page 51: Technical Specifications - Input/Output Devices
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices HP USB Standard Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions Physical characteristics 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Page 52 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Approvals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS Keyboard Installation Guide Kit contents Warranty Card...
Page 53 HP ProtectTools Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with the HP ProtectTools Security Manager and enables the user to setup, use, and manage the smart card. This allows strengthened security with HP patented technology.
Page 54 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Form factor USB basic smart card keyboard Physical Characteristics Colors Carbonite/Silver Dimensions 18.2 x 6.3 x 1.3 in 46.3 x 16.1 x 3.3 cm (H x W x D) Weight 2 lb (0.9 kg) minimum...
Page 55 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Power USB Port Short circuit detection (protects smart card and reader) Power supply compliant with ISO7816 and EMV (5V, 60 mA) Supports 3-V and 5-V cards SmartCard Function Power consumption...
Page 56 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Microsoft PC 99 - 2001 Mechanically compliant Acoustics 43-dBA maximum sound pressure level Operating temperature 50° to 122° F (10° to 50° C) Non-operating temperature -4° to 149° F (-20° to 65° C)
Page 57 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Operating voltage 5 VDC ± 10% Power consumption 100mA System consumption PS/2 mini-din connector Electrical CE level 4, 15 kV air discharge EMI-RFI Conforms to FCC rules for a Class B computing device...
Page 58 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices HP USB Optical Mouse Dimensions 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm) (H x L x W) Weight 0.27 lb (0.12 kg) Cable length 72.8 in (185 cm)
Page 59 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Input/Output Devices Mechanical Resolution 800dpi Tracking Speed 25 cm/sec Acceleration 0.5mm Switch Actuation 0.6N (60gf) Switch Life Button - 3,000,000 Wheel - 1,000,000 times Tilt switch - 500,000 times Cable Length...
Page 60 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage HP Blu-ray Writer Drive AMO Part Number AR482AA Height 5.25-inch, half-height, tray-load Orientation Either horizontal or vertical Interface type SATA Disc capacity 50 GB DL or 25 GB standard Dimensions 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 19.0 cm)
Page 61: Technical Specifications - Removable Storage
QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage DVD-RW up to 10X DVD+R DL up to 8X DVD-R DL up to 8X DVD-ROM up to 16X Maximum Data Transfer Rates DVD-ROM DL up to 8X DVD+R up to 12X...
Page 62 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage CD-ROM, CD-R Read Up to 6000 KB/s (40X) CD-RW Read Up to 4800 KB/s (32X) Digital/Analog Up to 2400 KB/s (16X) Audio Playback CD Media Read Transfer Digital Audio Extraction...
Page 63 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage CD-RW DVD-ROM DVD-ROM DL Media Compatibility DVD-RAM DVD+R DVD+R DL DVD+RW DVD-R DVD-RW DVD-R DL Source SATA DC power receptacle 5 VDC ± 5% 100 mV ripple p-p DC Power Requirement 12 VDC ±...
Page 64 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage Random < 130 ms typical DVD Media Read Access Full Stroke < 240 ms typical CD-ROM, CD-R Read Up to 6000 KB/s (40X) CD-RW Read Up to 4800 KB/s (32X)
Page 65 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage 1200 mA (typical) DC Current 12 VDC 2000 mA (max.) Total Drive Power < 2.5W (Standby Mode) SATA Power Connector, 15-pin Rear Panel SATA Data Connector, 7-pin Markings to identify each connector Temperature 41°...
Page 66 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage DVD-R DL, DVD+R DL Up to 6X Read speeds DVD+R, DVD-R Up to 8X DVD-ROM DL, DVD-ROM Up to 8X CD-ROM, CD-R Up to 24X CD-RW Up to 24X Random DVD: <...
Page 67 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage HP Slim DVD-ROM Drive AMO Part Number VP033AA Height 12.7mm Orientation Either horizontal or vertical Interface type SATA/ATAPI Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm) Weight (max) 0.42 lb (190 g)
Page 68 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage USB 2.0 High-speed interface USB Interface NOTE: Requires the USB cable to be connected to the internal USB 2.0 port or a USB 2.0 PCI card. Supports hardware ECC (Error Correction Code) function...
Page 69 QuickSpecs HP Compaq 8200 Elite Series Technical Specifications - Removable Storage MagicGate Memory Stick (MG) MagicGate Memory Stick Duo xD-Picture Card Supported media type with Memory Stick Micro (M2) card adapter MMC Micro DA - 13879 Worldwide — Version 34 — November 26, 2012...
Page 70: Ultra Slim Desktop
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers.
Page 71: Small Form Factor
This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver where HP registers commercial desktop products. See http://www.epeat.net for registration status in your country.
Page 72 This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level where HP registers commercial desktop products. See http://www.epeat.net...
Page 73 NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers.
Page 74 NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers.
Page 75: All Models
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
Page 76 Recycling nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers.
Page 77 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
