Summary of Contents for Asus VN289QL Series
-

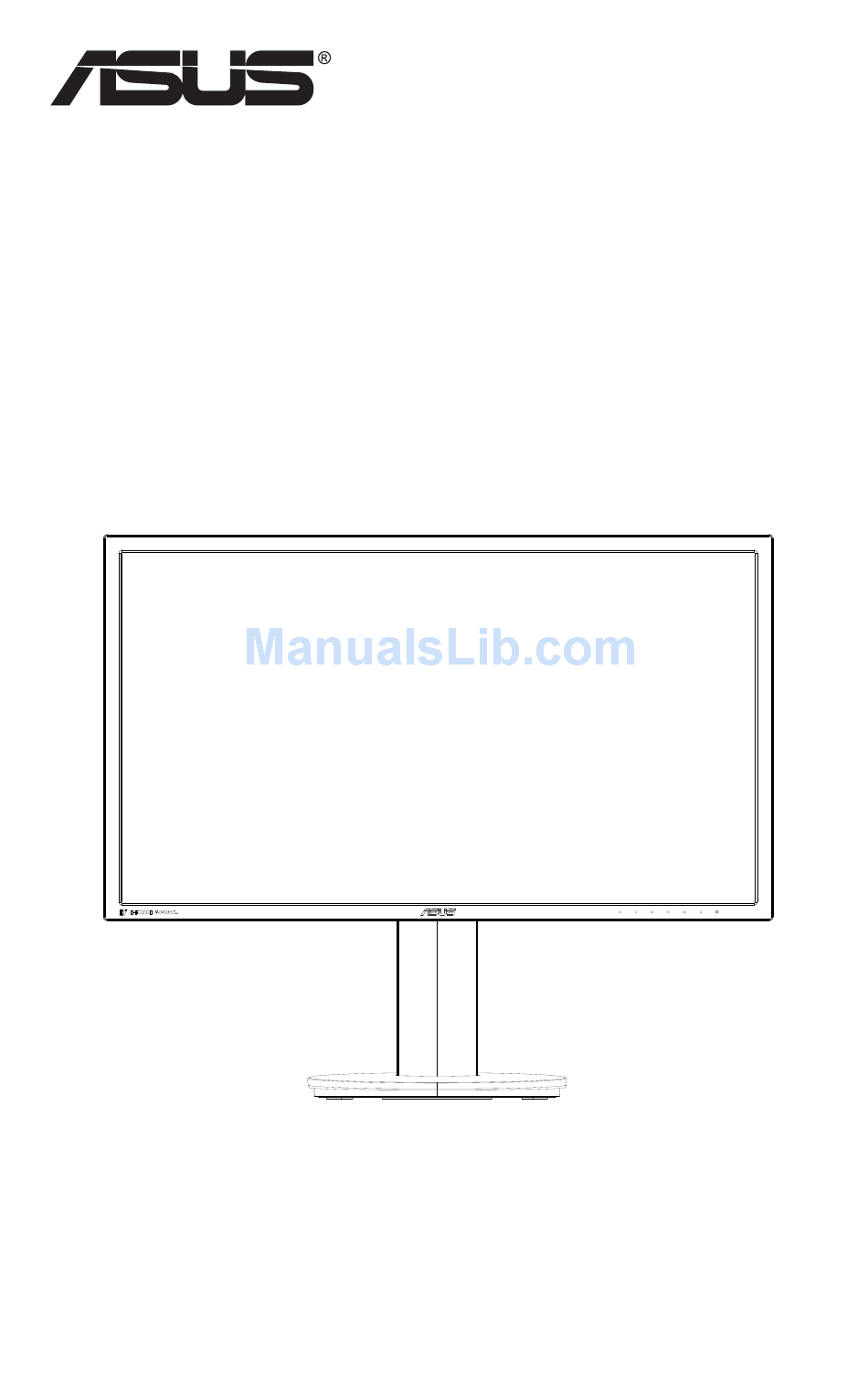

Page 1: User Guide
VN289QL Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 6 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 7: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 8: Assembling The Monitor Base
Assembling the monitor base Attach the base to the arm. Beware to align the latch to the notch on the base. The end of the arm will slightly protrude from the base. No need to push it in. Screw the base to the arm tightly. •... -
Page 9: Rear Of The Lcd Monitor
10. Control buttons • Flip upward the IO port cover to connect cables. After connected cables, replace the cover and carefully push it upward to its original position with both thumbs at both sides of the cover. ASUS LCD Monitor VN289 Series... -
Page 10: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Standard Mode VGA 1920x1080@60Hz Menu QuickFit Input Select Close Brightness Splendid Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. - Page 11 Close Button • Exit the OSD menu. Shortcut key1 • This is a Shortcut key. The default setting is Brightness. Shortcut key2 • This is a Shortcut key. The default setting is Splendid. ASUS LCD Monitor VN289 Series...
-
Page 12: Quickfit Function
1.5.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid Paper size: Provides users to view their documents in real size on the screen. -
Page 13: Detaching The Arm/Stand (For Vesa Wall Mount)
Hold the stand while removing the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VN289 Series... -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. -
Page 15: Osd (On-Screen Display) Menu
or buttons, according to the indicators on the menu, to make your changes. Select the to return to previous menu or to accept and return to previous menu. ASUS LCD Monitor VN289 Series... -
Page 16: Osd Function Introduction
3.1.2 OSD Function Introduction Splendid This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. VN289 Standard Mode VGA 1920x1080@60Hz Splendid Scenery mode Color... - Page 17 • Skin Tone: Contains three color modes including Reddish, Natural, and Yellowish. • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. ASUS LCD Monitor VN289 Series...
-
Page 18: Image
0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”, “1:1”, “Overscan”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. - Page 19 PIP/PBP Setting Aspect Control Swap Input Select System Setup Shortcut By activating this function, this monitor displays two pictures from two different video sources. • PIP/PBP Mode: Selects PIP or PBP function, or turn it off. ASUS LCD Monitor VN289 Series...
-
Page 20: Input Select
• PIP/PBP Source: Selects the video input source among “VGA”, “DVI”, “HDMI/MHL”, or “DisplayPort”. • Size: Adjust the PIP size to “Small”, “Middle”, or “Large”. • Position: Adjusts the position of PIP sub-window to “Right-Top”, “Left- Top”, “Right-Bottom”, or “Left-Bottom”. • Aspect Control: Adjusts the PIP aspect ratio and automatically adjust the PIP window size. -
Page 21: System Setup
• Select ON to enter the GamePlus main menu. • Press to select between Aimpoint and Timer function. • Press to confirm the function you choose. Press to go back. Press to go off, and exit. GamePlus main menu GamePlus-Aimpoint ASUS LCD Monitor VN289 Series... - Page 22 GamePlus Aimpoint Timer (Practice Mode) GamePlus main-Timer GamePlus main-Timer-Position Position • ECO Mode: Activate the ecology mode for power saving. • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese, Simplified Chinese, Japanese, Persian, Thai, Indonesian, Poland, Turkey, Portugal, Czech, Croatia, Hungary, Romania, and Korean.
- Page 23 “GamePlus” and set as shortcut key. The default setting is Brightness. • Shortcut 2: User can select from “Splendid”, “Brightness”, “AUTO Adjust.”, “Contrast”, “PIP/PBP Setting”, “Color Temp.”, “Volume”, “GamePlus” and set as shortcut key. The default setting is Splendid. ASUS LCD Monitor VN289 Series...
-
Page 24: Specifications
3.2 Specifications Model VN289QL Panel Size 28” W (71.12 cm) Max. Resolution 1920 x 1080 Brightness (Typ.) 300cd/m Intrisinc Contrast Ratio (Typ.) 3000:1 Viewing Angle (CR≤10) 178°(V); 178°(H) Display Colors 16.7 M Response Time (Typ.) ≤5 ms (Gray to Gray) D-Sub input DVI Input DP Input HDMI / MHL input Yes (MHL2.0) -
Page 25: Troubleshooting (Faq)
• Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Make sure the audio source is correct on the OSD. ASUS LCD Monitor VN289 Series 3-11... -
Page 26: Supported Timing List
Supported Timing List VESA / IBM Modes Support Timing Resolution Refresh Rate Horizontal Frequency 640 x 350 70Hz 31.469KHz 640 x 480 60Hz 31.469KHz 640 x 480 67Hz 35KHz 640 x 480 75Hz 37.5KHz 720 x 400 70Hz 31.469KHz 800 x 600 56Hz 35.156KHz 800 x 600...
