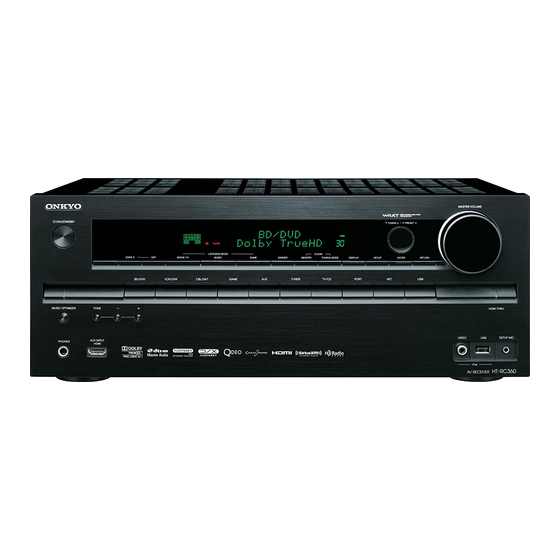

Onkyo HT-RC360 Specifications

2011 NEW PRODUCT RELEASE
HT-RC360
Hitting the Home Theater Sweet Spot
Onkyo has forged an iron-clad reputation for making high-quality home theater more affordable. Case in point: the HT-RC360, a versatile
networking A/V receiver with a savvy selection of today's most vital technologies.This receiver does more than just handle all your favorite
disc-based movies, games, and music.Thanks to its network function, the HT-RC360 also lets you bring to your living room a range of audio
content from the internet or your PC. Six HDMI
3D video; ultra-high resolution 4K video upscaling via Qdeo
from Audyssey DSX ™ and Dolby ®
on-screen display for easy adjustment of settings. Driving it all is a clean and powerful amplifier design based on Onkyo's proprietary WRAT.
ADVANCED FEATURES
• HDMI ® Support for 3D, Audio Return Channel,
DeepColor ™ , x.v.Color ™ , LipSync, Dolby ® TrueHD,
DTS-HD Master Audio ™ , DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• HDMI Video Upscaling to 4K with Qdeo ™
Technology by Marvell
• WRAT (Wide Range Amplifier Technology)
• Direct Digital Connection of iPod ® /iPhone
Front-Panel USB Port
• Supports Onkyo Remote App for Control of A/V
Receiver via iPod/iPhone* 1
• Audyssey DSX ™ and Dolby ® Pro Logic ® IIz for
Expanded Surround Channels
• Overlaid Graphical On-Screen Display (OSD) and
GUI Navigation via HDMI
• Playback of Audio Files Through Local Network
(MP3,WMA,WMA Lossless, FLAC,WAV, Ogg Vorbis,
AAC, LPCM)
• Internet Radio and Music Streaming Service
Connectivity (vTuner, SIRIUS XM Internet Radio
Mediafly, Pandora ® , Slacker ™ , Napster, Rhapsody
• Certified with Windows 7 and DLNA Version 1.5
®
• 2 Parallel Subwoofer Pre Outs
• Illuminated Volume Knob (White)
*1 Compatible iPod/iPhone models: iPod touch 3rd generation or later;
iPhone 3GS or later. (All models require iOS 4.2 or later.) *2 Availability of
services depends on region.
AMPLIFIER FEATURES
• 100 Watts per Channel at 8 Ohms, 20 Hz–20 kHz,
0.08%, 2 Channels Driven, FTC;
7.2-CHANNEL NETWORK A/V RECEIVER
® inputs—including one on the front panel—let you enjoy all the latest A/V formats: immersive
technology; lossless audio from Dolby and DTS; and expanded surround sound
™
Pro Logic ® IIz. Further exploiting the versatility of HDMI, the HT-RC360 includes a new user-friendly GUI and
130 Watts per Channel at 6 Ohms, 1 kHz, 0.1%,
2 Channels Driven, FTC
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
® via
• Dolby ® TrueHD and DTS-HD Master Audio
Decoding
• TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690)
for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Mass Storage Class USB Memory Playback Capability
• Theater-Dimensional Virtual Surround Function
,
® • CinemaFILTER ™
® )* 2
• Direct Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 6 HDMI Inputs (1 Front/5 Rear) and 1 Output
• Universal Port for Onkyo Peripheral Devices Such
as UP-A1 Dock for iPod/iPhone or UP-HT1 HD
Radio ™ Tuner
• HDTV-Capable (720p/1080i) Component Video
Switching (2 Inputs and 1 Output)
• 5 Composite Video Inputs (1 Front/4 Rear) and
2 Outputs
• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 5 Analog Audio Inputs and 1 Output
• Powered Zone 2 and Zone 2 Line-Out for
Distributed Audio Playback in Another Room
• Color-Coded, Banana Plug-Compatible Speaker
™
Posts (Except Zone 2)
• Headphone Jack
OTHER FEATURES
• Audyssey 2EQ ® for Room Acoustic Correction
• Audyssey Dynamic EQ ® for Loudness Correction
• Audyssey Dynamic Volume to Maintain Optimal
®
Listening Level and Dynamic Range
• Independent Crossover Adjustment for Each
Channel (40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Light Dimming (Display: Normal/Dim/Dimmer;
Volume Knob LED: On/Off)*
• 40 FM/AM Random Presets
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive over HDMI) for System
Control
• Preprogrammed RI (Remote Interactive) Remote
Control
* Note: Volume knob LED is always off when display is dimmed.
BLACK
Microphone for
Audyssey
