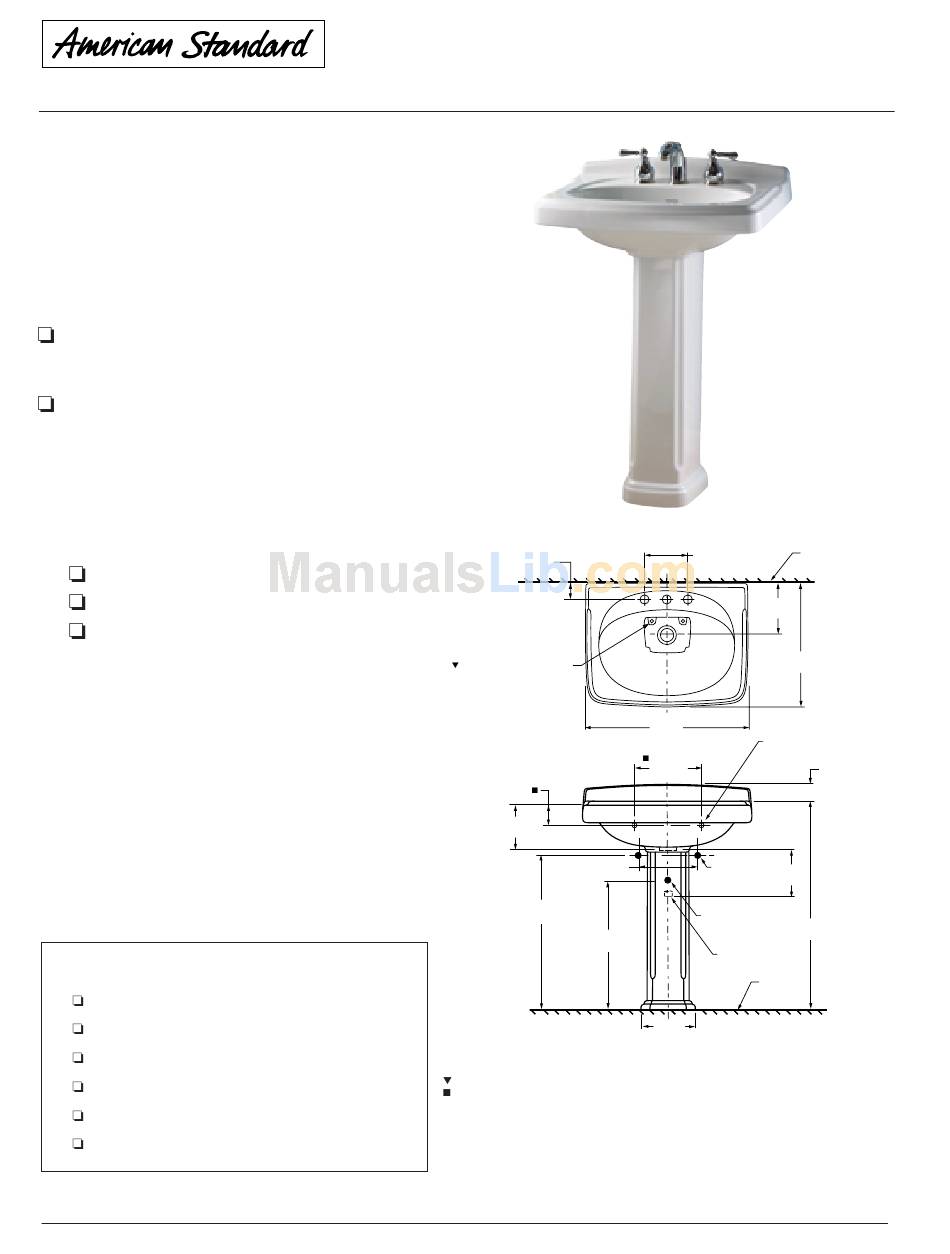

WILLIAMSBURG LAVATORY WITH PEDESTAL
• Vitreous china
• Turn-of-the-century detailing on lavatory and
pedestal
• Front overflow
• Supplied with mounting kit
• Faucet ledge with large deck area
(faucet not included)
0555.800 (Illustrated)
Faucet holes on 203mm (8") centers
0555.400
Faucet holes on 102mm (4") centers
Nominal Dimensions:
619 x 495 x 900mm
(24-3/8" x 19-1/2" x 35-7/16")
0555.008 Lavatory slab-203mm (8") centers
0555.004 Lavatory slab-102mm (4") centers
734906-400 Pedestal only
Bowl sizes:
489mm (19-1/4") wide,
289mm (11-3/8") front to back,
146mm (5-3/4") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures
To Be Specified
Color: White
Faucet*:
Faucet Finish:
Supplies:
1-1/4" Trap:
Nipple:
* See faucet section for additional models available
89mm
(3-1/2)
PEDESTAL ANCHORING
SCREW HOLES
8mm (5/16) DIA.
203mm
(8)
*
578mm
(22-3/4)
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE SUGGESTED.
PEDESTAL ANCHORING SCREWS NOT INCLUDED.
SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST BE TAKEN FROM
FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances
established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use
of superseded or voided pages.
SPS 0555
© 2004 American Standard Inc.
WILLIAMSBURG™
PEDESTAL LAVATORY
VITREOUS CHINA
203mm
(8)
212mm
(8-1/2)
619mm
13mm
(24-3/8)
(1/2) DIA.
HOLES FOR
ANCHOR BOLTS
260mm
(10-1/4)
REF.
203mm
SUPPLIES AS
(8)
REQUIRED
1-1/4 O.D.
WASTE
*
521mm
(20-1/2)
1-1/4 O.D.
TAILPIECE
FINISHED
FLOOR
229mm
(9)
FINISHED
WALL
495mm
(19-1/2)
51mm
(2)
178mm
(7)
900mm
(35-7/16)
