QuickSpecs
Overview
Introduction
Introduction
Introduction
Introduction
The HP t5630 Thin Client delivers great value with a familiar Windows experience at the right performance level. Microsoft Windows
XP Embedded SP2 operating system combined with a full-featured browser, Enhanced Write Filter, Symantec Endpoint Protection,
terminal emulations, native dual monitor and widescreen support make the t5630 the optimum choice for business environments
requiring a cost-effective thin client with flexibility and power.

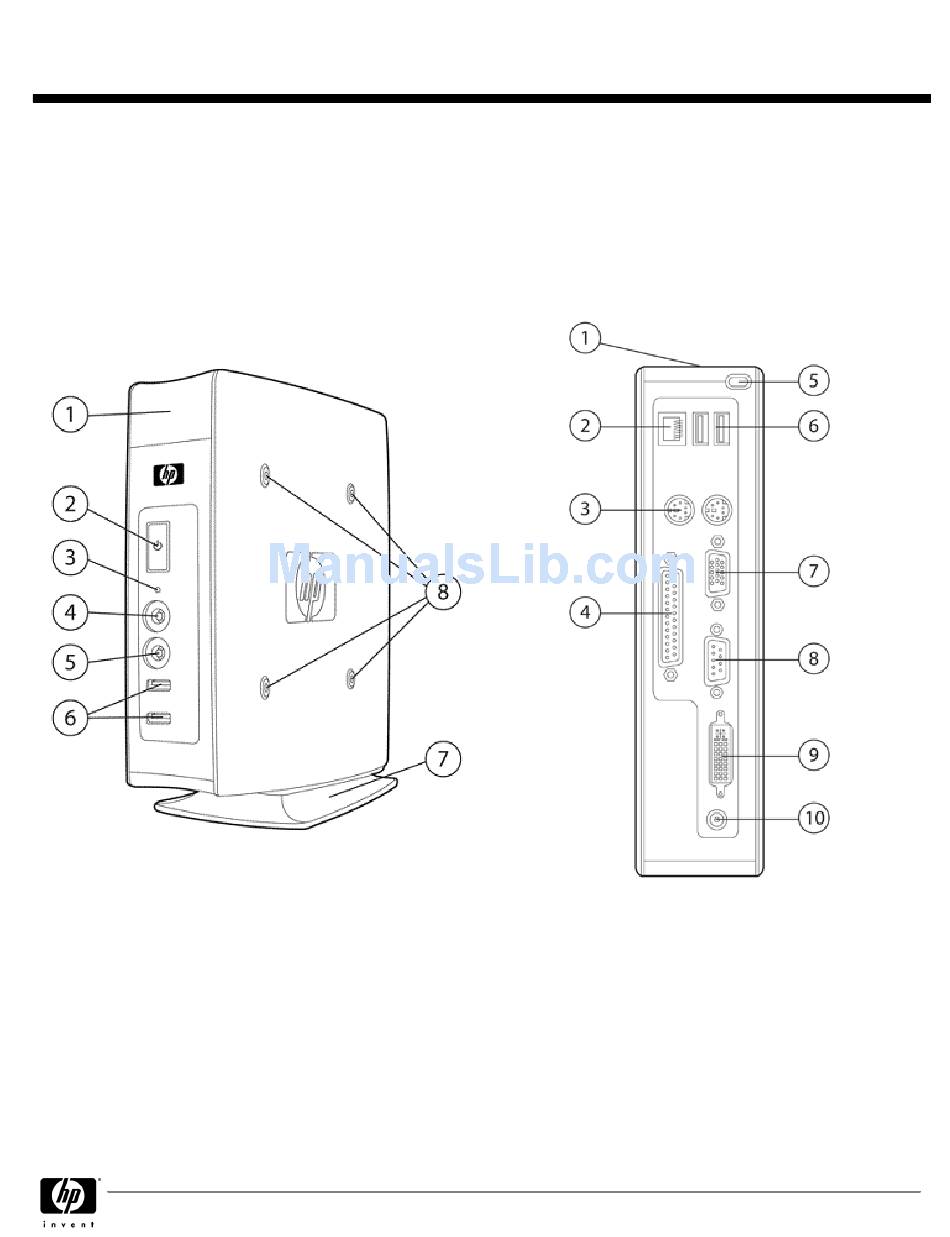

1.
Secure USB compartment (2 USB connectors)
2.
Power button with LED
3.
Flash storage activity indicator
4.
Audio connector (mic in)
5.
Audio connector (headphone out)
6.
USB connectors (2)
7.
Vertical stand (removable)
8.
VESA mounting points (4)
(standard in Germany only; available as an option
in other countries)
Front
Front
Front
Front
DA - 13149
Worldwide — Version 3 — December 15, 2008
1.
Cable lock slot
2.
10/100/1000 Ethernet RJ-45 connector
3.
PS/2 connectors (2)
4.
Parallel port
5.
Cable management feature
6.
USB connectors (2)
7.
VGA connector
8.
Serial port
9.
DVI-D connector
10. +12V DC power input
HP t5630 Thin Client
HP t5630 Thin Client
HP t5630 Thin Client
HP t5630 Thin Client
Back
Back
Back
Back
Page 1

Advertisement

loading

Related Manuals for HP t5630 Thin Client

Summary of Contents for HP t5630 Thin Client

  • Page 1 Introduction Introduction The HP t5630 Thin Client delivers great value with a familiar Windows experience at the right performance level. Microsoft Windows XP Embedded SP2 operating system combined with a full-featured browser, Enhanced Write Filter, Symantec Endpoint Protection, terminal emulations, native dual monitor and widescreen support make the t5630 the optimum choice for business environments requiring a cost-effective thin client with flexibility and power.
  • Page 2 Automation Starter Edition is available as a free download. For more details visit: www.hp.com. Supports HP Universal Print Driver for Windows, a single, intelligent print driver that provides instant access to a wide range of HP print devices. The HP UPD is available for free at: www.hp.com/go/upd.
  • Page 3 QuickSpecs HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client Models FQ801AA#XXX FQ801AA#XXX FQ801AA#XXX FQ801AA#XXX Model Name Model Name Model Name Model Name HP t5630 Thin Client Processor Processor Processor Processor VIA Eden 1 GHz...
  • Page 4 Restrictions and limitations apply. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: www.hp.com/hps/carepack.

  • Page 5: Technical Specifications

    QuickSpecs HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client Technical Specifications Processor Processor Processor Processor VIA Eden 1 GHz Chipsets Chipsets Chipsets Chipsets VIA VX800 north/south bridge unified chip Memory Memory Memory...
  • Page 6 HP ThinState for image capture and redeploy TeemTalk Terminal Emulation Suite HP Client Automation (available as a separate download). For details visit www.hp.com HP Universal Print Driver (available as a free download at www.hp.com/go/upd) ThinPrint .print TCP client (available as add-on) www.hp.com/support...
  • Page 7 QuickSpecs HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client Technical Specifications Hewlett Packard HP700- 2392A, 2622A, 70092, 70094, 70096 92/96 Hazeltine 1500 HZ1500 IBM 3151 11, 11-28, 31, 31-28 IBM 3270 3278-2 (24x80 Mono),...
  • Page 8 QuickSpecs HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client HP t5630 Thin Client Technical Specifications Viewdata 40 VIEWDATA – 40 Viewdata 80 VIEWDATA – 80 Viewdata Split VIEWDATA – SPLIT DEC VT PCTerm VT-PCTERM DEC VT100...
  • Page 9 FCC Class B, CE Mark, VCCI Warranty Warranty Warranty Warranty Three-year limited hardware warranty. NOTE: NOTE: NOTE: NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details. Environment-friendly Environment-friendly Environment-friendly Environment-friendly RoHS Compliance RoHS Compliance RoHS Compliance RoHS Compliance...
  • Page 10 © Copyright 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
