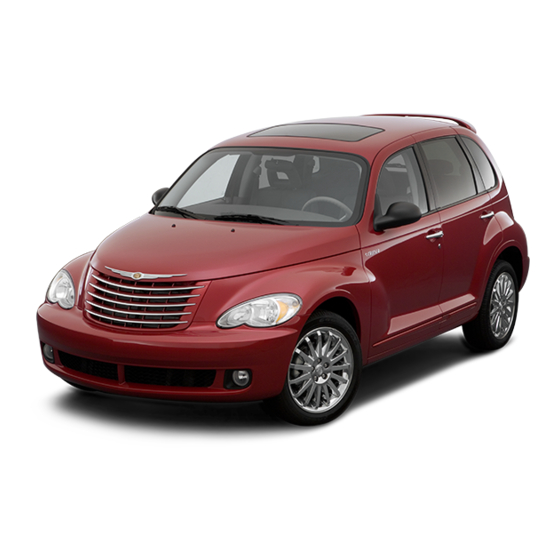

Chrysler 2006 PT Cruiser Specifications

2006
C H R Y S L E R P T C R U I S E R

SPECIFICATIONS

All dimensions are in inches (millimeters) unless otherwise noted.
GENERAL INFORMATION
Introduction Date _______________________________________________________________ Spring 2000
Body Style __________________________________________________ Four-door multi-purpose hatchback
Assembly Plant _______________________________________________________________ Toluca, Mexico
EPA Vehicle Class ________________________________________ Two-wheel drive special purpose vehicle
ENGINE: 2.4-LITER, DOHC, 16-VALVE SMPI I-4 BUX
Availability ________________________________________________________ Std.—Base, Touring, Limited
Type and Description _________________________________________ Four-cylinder, in-line, liquid-cooled
Displacement ______________________________________________________ 148.2 cu. in. (2429 cu. cm)
Bore x Stroke ________________________________________________________ 3.44 x 3.98 (87.5 x 101)
Valve System ________Belt-driven DOHC, 16 valves, stamped-steel roller followers, hydraulic lash adjusters
Fuel Injection _________________________________________________ Sequential, multi-port, electronic
Construction __________________Cast-iron block, cast-iron bedplate, aluminum alloy head, balance shafts
Compression Ratio ____________________________________________________________________ 9.5:1
Power (SAE net) ______________________________________150 bhp (112 kW) @ 5,100 rpm (62.5 bhp/L)
Torque (SAE net) _____________________________________________ 165 lb.-ft. (220 N•m) @ 4,000 rpm
Max. Engine Speed _____________________________________________ 6,240 rpm, electronically limited
Fuel Requirement __________________________________________ Unleaded regular, 87 octane (R+M)/2
Oil Capacity ___________________________________________________________ 4.5 qt. (4.3L) plus filter
Coolant Capacity _______________________________________________________________ 7.4 qt. (7.0L)
Emission Controls __________________ Three-way catalyst, heated oxygen sensor, internal engine features
Max. Gross Trailer Weight ______________ 1,000 lbs. (454 kg) (20 sq. ft.) maximum allowable frontal area
Estimated EPA Fuel Economy mpg (City/Hwy) _______________________ 21/29 manual, 20/25 automatic
Alternator ________________________________________________________________________120-amp
Battery ________________________________________________ 540-amp, Group 26R, maintenance-free
ENGINE: 2.4-LITER, DOHC, 16-VALVE SMPI TURBOCHARGED
Availability _________________________________________ Opt.—Touring and Limited, automatic transaxle
Type and Description _________________________________________ Four-cylinder, in-line, liquid-cooled
Displacement ______________________________________________________ 148.2 cu. in. (2429 cu. cm)
Bore x Stroke ________________________________________________________ 3.44 x 3.98 (87.5 x 101)
Valve System __________________________________DOHC, 16 valves, hydraulic end-pivot roller followers
Fuel Injection _________________________________________________ Sequential, multi-port, electronic
Construction __________________Cast-iron block, cast-iron bedplate, aluminum alloy head, balance shafts
Compression Ratio ____________________________________________________________________ 8.1:1
Power (SAE net) _______________________________________ 180 bhp (134 kW) @ 5,200 rpm (75 bhp/L)
Torque (SAE net) ________________________________________ 210 lb.-ft. (285 N•m) @ 2,800-4,000 rpm
Oil Capacity ________________________________________________________ 5 qt. (4.75L) with dry filter
Coolant Capacity ________________________________________________________________ 8 qt. (7.6L)
continued
Chrysler Brand Product Information 19
