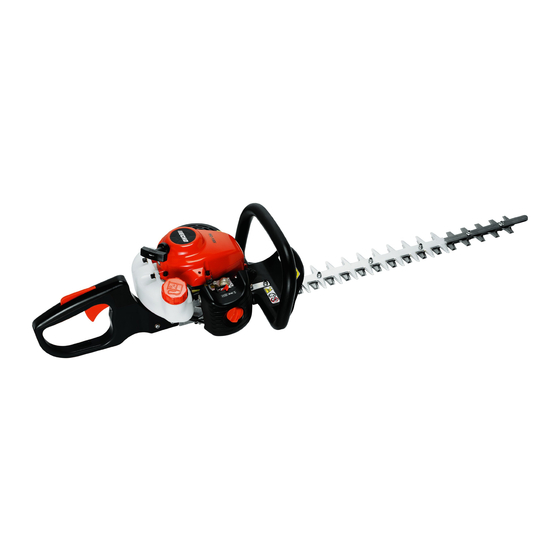

Echo HC-155 Operator's Manual

Hedge clipper
Hide thumbs Also See for HC-155:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

Hedge Clipper

Operator's Manual
MODEL
Read rules for safe operation and all instructions carefully. ECHO provides
this Operator's Manual and a Safety Manual. Both must be read and under-
stood for proper and safe operation.
X7502256702
HC-155
WARNING
X750011602
01/10

Advertisement

Table of Contents
loading

Related Manuals for Echo HC-155

Summary of Contents for Echo HC-155

  • Page 1: Hedge Clipper

    Hedge Clipper Operator's Manual MODEL HC-155 WARNING Read rules for safe operation and all instructions carefully. ECHO provides this Operator's Manual and a Safety Manual. Both must be read and under- stood for proper and safe operation. X750011602 X7502256702 01/10...

  • Page 2: Table Of Contents

    Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the- job dependability. Read and understand this manual. You will find it easy to use and full of helpful operating tips and SAFETY messages.

  • Page 3: Safety

    edge lipper peratOr anual afety manual safety symbols and Important InformatIon Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages pre- ceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.
  • Page 4 Hearing Protection are cooler. ECHO recommends wearing hearing protection whenever unit is used. Extended Operation/Extreme Conditions It is believed that a condition called Raynaud’s Phenomenon, which affects the fingers of certain individuals, may be brought about by exposure to vibration and cold.
  • Page 5 edge lipper peratOr anual Repetitive Stress Injuries It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).

  • Page 6: Equipment Check

    Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment com- bination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

  • Page 7: Description

    Locate the safety decals on your unit. Make sure the decals are legible and that you understand and follow the instruc- tions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.
  • Page 8 FRONT HANDLE WITH GUARD - Comfortable, textured finish provides anti-slip grip. Guard protects hand from the blades. Warning decals are located on guard. bLADEs - Double reciprocating blades mounted to a blade support bar. The blades are double sided, capable of cut- ting on either side.

  • Page 9: Contents

    After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. 1 - Hedge Clipper Assembly 1 - Operator’s Manual...

  • Page 10: Remove Blade Stiffener

    blade stIffener removal 1. Move stop switch to stop position. 2. Disconnect spark plug wire. WARNING Hedge clipper blades are very sharp. Touching them may lead to severe personal injury. Use a socket and extension when remov- ing locknuts in order to keep hands at a safe distance from sharp blades.

  • Page 11: Operation

    WARNING Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance prob- lems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement.

  • Page 12: Handling Fuel

    Handling Fuel DANGER Fuel is VERY flammable. Use extreme care when mixing, storing or handling or serious personal injury may result. • Use an approved fuel container. • DO NOT smoke near fuel. • DO NOT allow flames or sparks near fuel. •...

  • Page 13: Starting Cold Engine

    If blades move, readjust carburetor according to “Carburetor Ad- justment” instructions in this manual or see your ECHO Dealer. 6. Throttle Trigger After engine warm-up, grip the rear handle and front handle.

  • Page 14: Starting Warm Engine

    Periodic carburetor adjustment may be necessary to assure blades do not move at idle. If blades move, readjust carburetor according to “Carburetor Ad- justment” instructions in this manual or see your ECHO Dealer. 1. Stop Switch Move stop switch (A) away from the STOP position.

  • Page 15: Hedge Trimming

    ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If task is not listed, see your ECHO Dealer for repairs.

  • Page 16: Skill Levels

    Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required. ECHO offers REPOWER Maintenance Kits and Parts to make your maintenance job easier. maIntenance Intervals SKILL DAILY OR...

  • Page 17: Air Filter

    edge lipper peratOr anual aIr fIlter Level 1. Tools required: 25 or 50 mm (1 or 2 in.) Cleaning brush Parts required: REPOWER AIR & FUEL FILTER KIT. 1. Close choke (Cold Start Position [ ]). This prevents dirt from entering the carburetor throat when the air filter is removed.

  • Page 18: Spark Plug

    spark plug Level 2. Tools required: T-wrench, Feeler gauge, Soft metal brush Parts required: REPOWER Tune-Up Kit IMPORTANT Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) other- wise severe engine damage may occur. 1. Remove spark plug and check for fouling, worn and rounded center electrode.

  • Page 19: Exhaust System

    edge lipper peratOr anual 1. Remove spark plug lead. 2. Remove muffler cover (2 screws). 3. Remove starter cover (7 screws). 4. Use brush to remove dirt from cylinder fins. IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. 5.

  • Page 20: Carburetor Adjustment

    1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be ad- justed by an authorized ECHO service dealer.

  • Page 21: Lubrication

    Every unit is run at the factory and the carburetor is set in compli- ance with emission regulations. Carburetor adjustments, other than idle speed, must be performed by an authorized ECHO dealer. 1. Check idle speed and reset if necessary. If a tachometer is avail- able, idle speed screw (A) should be set to the specifications found on page 27 “Specifications”...
  • Page 22 1. Move stop switch to stop position. 2. Disconnect spark plug wire from spark plug. 3. Brush loose debris from blade and coat both sides of blade with the 50-50 cleaning mixture. 4. Allow cleaning mixture to soften the remaining gummy residue then wipe it from the blade.

  • Page 23: Sharpening Blades

    If a power grinder is used DO NOT allow blade to over heat. 6. Install blade stiffener (see “Blade Stiffener Remove/Install instruc- tions”). 7. Lubricate blades (see “Lubrication instructions”). IMPORTANT Blades should only be removed and reinstalled by an Authorized ECHO Servicing Dealer, otherwise premature wear or internal damage may occur.

  • Page 24: Blade Adjustment

    blade adjustment Level 2. Tools Required: 8 mm Socket & Extension, 4mm Hex Wrench w/ extension 1. Move stop switch to STOP position. 2. Disconnect spark plug wire. WARNING Hedge clipper blades are very sharp. Touching them may lead to severe personal injury.

  • Page 25: Troubleshooting

    edge lipper peratOr anual roubleshootIng r o t r o t i a r i l l r o t r e l i l y i l y r o t r e l f f u r e l h t i r u t r / n...

  • Page 26: Storage

    torage WARNING During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious personal injury may result. Long Term Storage (over 30 days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte- nance which includes the following: 1.

  • Page 27: Specifications

    MODEL ------------------------------------------HC-155 Length ---------------------------------------------1,154 mm (45.4 in.) Width ----------------------------------------------272 mm (10.7 in.) Height ---------------------------------------------201mm (7.9 in.) Weight, dry ---------------------------------------5.2 kg (11.5 lb.) Type of Engine -----------------------------------Air cooled, two-stroke, single cylinder, gasoline engine Displacement -------------------------------------21.2 cc (1.29 cu.in.) Bore ------------------------------------------------32.2 mm (1.27 in.)

  • Page 28: Warranty Statements

    The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the operator’s manual. Should a product difficulty occur, you must, at your expense, deliver or ship your ECHO unit to an authorized ECHO servicing dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been made.
  • Page 29 89 octane or higher. Gasohol which contains a maximum 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual.
  • Page 30 HOW WILL A COVERED PART BE CORRECTED? If there is a defect in a part covered by this warranty, any ECHO Inc. Authorized Service Dealer will correct the defect. You will not have to pay anything to have the part adjusted, repaired or replaced. This includes any labor and diagnosis for warranted repairs performed by the dealer. In addition, engine parts not expressly covered under this warranty but whose failure is a result of a failure of a covered part will be warranted.
  • Page 31 edge lipper peratOr anual notes...

  • Page 32: Servicing Information

    ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information. safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video. ECHO, INCORPORATED...
