Remote Controller - LG LV-B2461CL Manual

2) Heat Pump Model

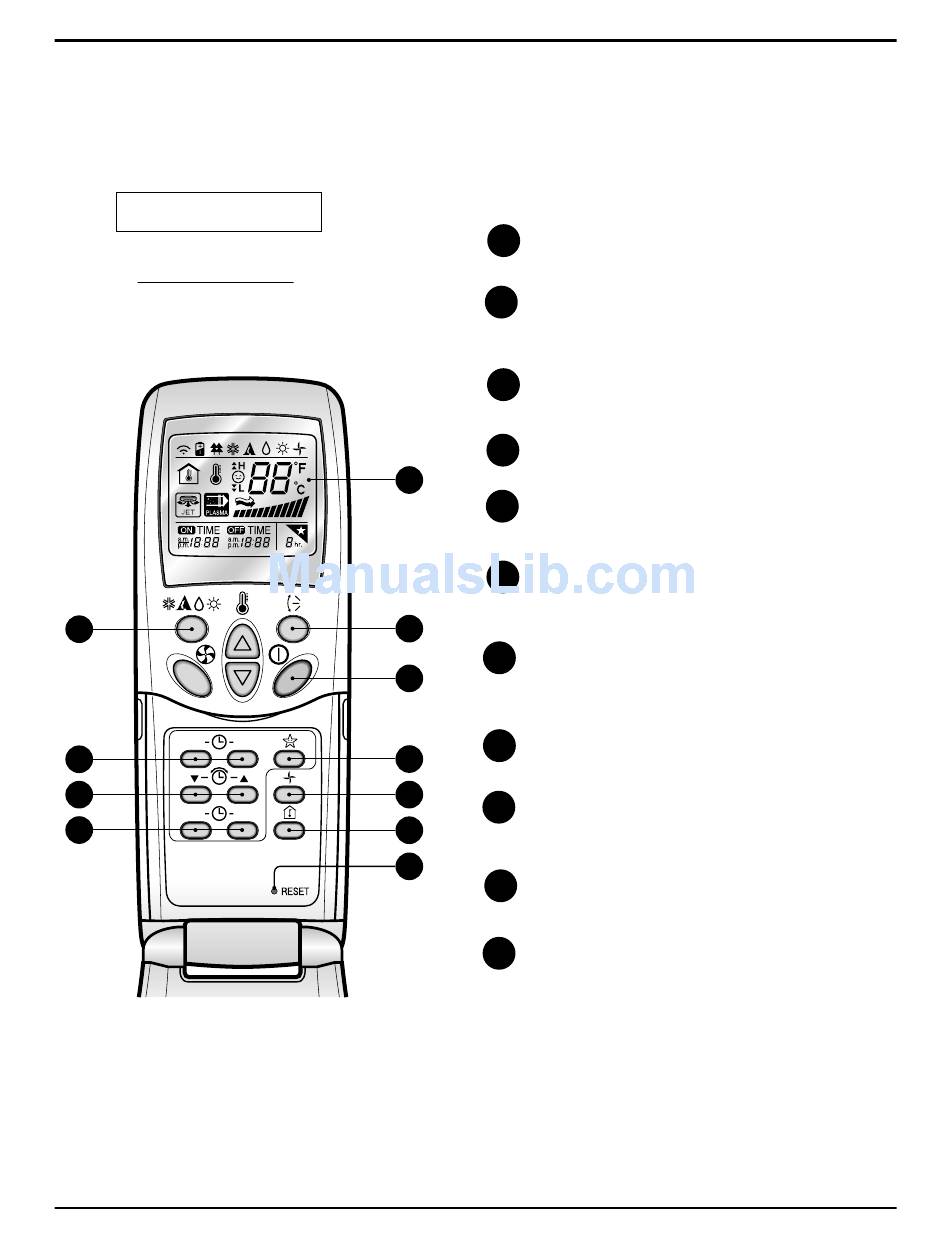

Remote Controller

Signal transmitter.
Transmits the signals
to the room air conditioner.
3
ON OFF
4
5
SET CANCEL
6
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
OPERATION DISPLAY
1
Displays the operation conditions.
START/STOP BUTTON
2
Operation starts when this button is pressed and stops
when the button is pressed again.
OPERATION MODE SELECTION BUTTON
3
Used to select the operation mode.
ON/OFF TIMER BUTTONS
4
Used to set the time of starting and stopping operation.
1
5
TIME SETTING BUTTONS
Used to adjust the time.
TIMER SET/CANCEL BUTTONS
6
Used to set the timer when the desired time is obtained
and to cancel the Timer operation.
7
AIR FLOW DIRECTION START/STOP BUTTON
7
Used to stop or start louver movement and set the
2
desired up/down airflow direction.
SLEEP MODE AUTO BUTTON
8
Used to set Sleep Mode Auto operation.
8
9
AIR CIRCULATION BUTTON
9
Used to circulate the room air without cooling or heat-
10
ing (turns indoor fan on/off).
11
ROOM TEMPERATURE CHECKING BUTTON
10
Used to check the room temperature.
RESET BUTTON
11
Used prior to resetting time or after replacing batteries.
