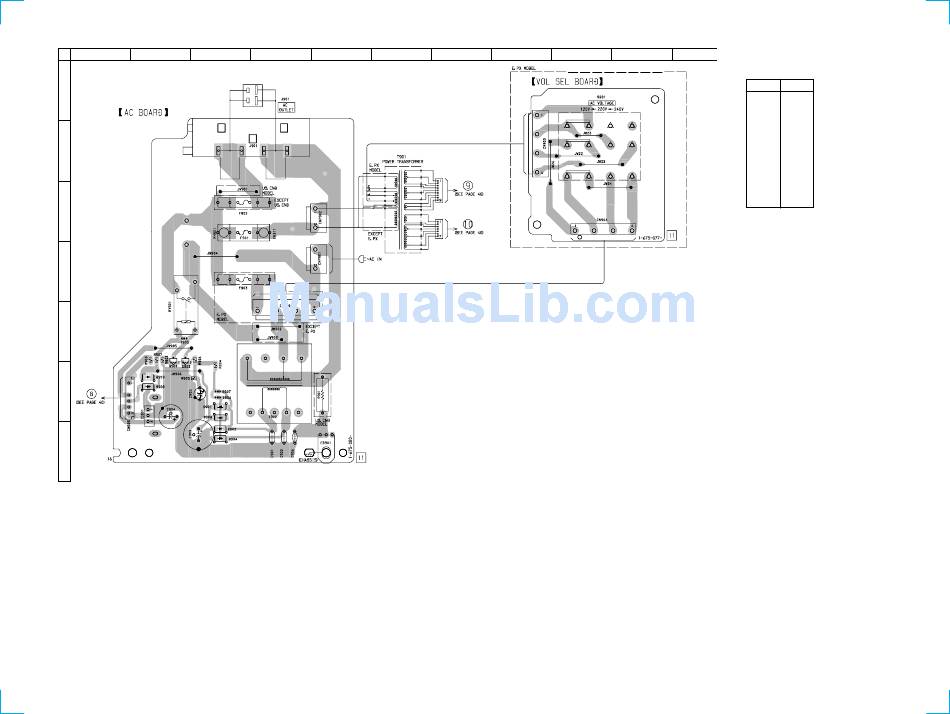

3-36. PRINTED WIRING BOARD AC POWER SUPPLY SECTION

1 2 3
A
B
C
D
E
F
G
• See page 7 for Circuit Boards Location.
4 5 6 7 8 9 10
41 41
STR-DA777ES/V777ES
11
• Semiconductor
Location
Ref. No. Location
D901 F-3
D902 F-3
D903 F-3
D904 G-3
D905 E-2
D906 F-3
D907 F-3
D908 F-2
D909 E-2
IC901 F-2
Q901 E-2
Q902 E-2
