Panasonic WJ-ND200 Specifications

Network Disk Recorder with 2 removable HDD slots for
digital image data from up to 16 Network Cameras
Key Features
• H.264, MPEG-4 and JPEG multi format
• Up to 16 network cameras can be connected and recorded.
• Various Recording Modes: Manual, Schedule, Event (Pre/Post),
Emergency, External Timer
• Various alarm sources include 16x Terminal inputs, 16x Camera alarm,
Panasonic Alarm Protocol. Flexible alarm actions include Alarm recording,
E-mail notification, Alarm message, Camera positioning, FTP image transfer,
Terminal output, Panasonic alarm protocol output, Buzzer and Indicator.
• Panasonic Camera Control: Pan/Tilt, Zoom, Focus, Brightness,
Preset Position, Auto mode (depending on camera model).
• Audio from the i-Pro network cameras can be recorded and played
back, G.726 (ADPCM) 32 kbps.
• Cameras may be assigned to one of the 4 groups to meet
application requirements.
• Flexible Playback Controls: Goto Date (Jump to specific time/date),
Goto Last (Jump to 5 sec. ~ 5 min. before the record end).
• Various Display Modes: Spot, Quad (4 patterns), Spot Sequence,
Quad Sequence (Sequence: Live only).
• 4 Quad screens are fully programmable. Any of the 16 cameras can
be assigned to any area of the Quad screens.
• Filtered Search: Time & Date, Event Type, Camera number, Text
• Recorded images can be downloaded to a PC.
• Downloadable viewer software allows playback of images
downloaded from the Recorder.
• Built-in network interface (10Base-T / 100Base-TX) for recording
and client access
• Quick IP Setup for Panasonic i-Pro series network cameras
• Bandwidth control: 32 k / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M /
5 M / 10 M (bps) and unlimited
• Up to 4 clients can monitor image and control WJ-ND200 simultaneously.
• Image transfer to FTP server: Recorded image upon alarm and/or
live image periodically
• Performance measurement function for appropriate recording frame rate setup
• SD memory recordings initiated by network failure in the i-Pro series
cameras can be transferred automatically or manually to the
recorder even when the recorder is in recording status.

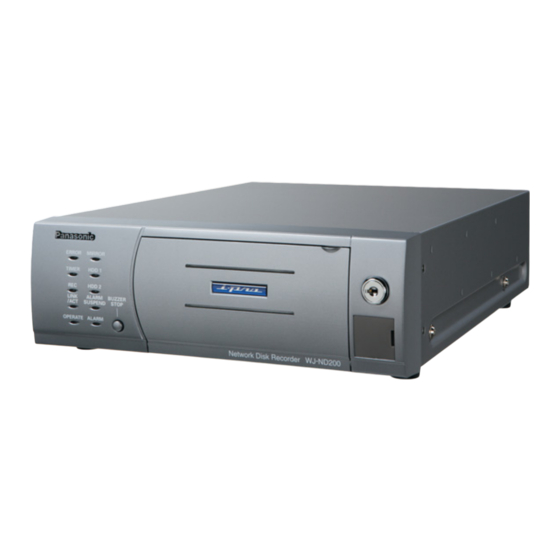

Network Disk Recorder
WJ-ND200
WJ-ND200K
(120 V AC)
• Up to 2 removable HDDs can be installed. (2.5 inch Serial ATA
HDD)
• The removable HDD can be connected to a PC and played back
with provided HDD viewer software.
• Alarm notification by e-mail
• User/Host authentication, 4 user levels and User-Camera
View/Control partitioning set up for sophisticated user management
of up to 32 user registrations.
• Multi-recorder, Multi-site system can be made with optional WV-
ASM100 i-Pro Management Software.
• RAID1 mirroring capability
• Vertical installation is possible with the optional WV-Q201 Vertical Stand.
Standard Accessories
• CD-ROM* ...................................... 1 pc.
• Installation Guide .......................... 1 pc.
* The CD-ROM contains the operating instructions
(PDFs and the software).
Optional Accessories
Rack Mount Bracket
WV-Q200
Removable HDD
WJ-HDD50
(500 GB)
WJ-ND200K
(220 ~ 240 V AC)
The followings are for installation:
• Power Cord (NTSC model) .......... 1 pc.
• Power Cord (PAL model) ............ 2 pcs.
• Key .............................................. 2 pcs.
• Brace (for the power cord) ............ 1 pc.
Vertical Stand
WV-Q201
