CCTV | LTC 2682/90 Series System4 Video Management System
LTC 2682/90 Series System4 Video
Management System
System4 Video Management Systems incorporate advanced
circuitry and expanded memory with improved color
sampling and processing to produce high quality, true-to-
life color video images. Enhanced circuitries allow
increased image accuracy and faster display rates without
annoying onscreen flickering (aliasing) common with
multiscreen displays. These units can be used as matrix
switchers, displaying any camera to either monitor A or B
and include custom alarm display on monitor A with up to
4 pre-position call-ups in a single alarm contact. Also, with
the internal universal power supply, the System4
intelligently detects the video input signal input voltage and
automatically sets the unit for PAL/NTSC or EIA/CCIR.
Functions

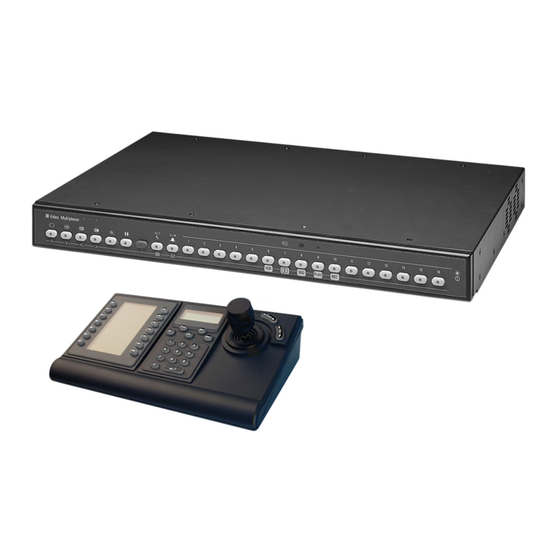

The advanced features of System4 are accessible through
the optional IntuiKey remote keyboard. The IntuiKey
keyboard is capable of controlling Bosch AutoDome
systems and receiver/drivers for pan/tilt/zoom control. The
System4 remote keyboards control all primary functions of
any selected Bosch VCR. Up to 30 System4 units and 30
VCRs can be programmed and controlled by one keyboard.
With Master Clock Synchronization, the System4
automatically synchronizes all of the clocks. With a
▶ True Triplex operation
▶ Simultaneous playback and live view multiscreen
display
▶ Playback six (6) recording formats
▶ Timed events feature
▶ Log events feature
▶ Custom alarm display with multiple presets
▶ Full duplex VCR controls with on-line status and time/
date/search functions
▶ Remote VCR setup
▶ Master clock synchronization
keyboard port expander unit (see OPTIONS), up to four
keyboards can be used to program and control a System4
video controller.
The LTC 2682/90 16-channel Triplex multiplexer allows for
the following:
•
Simultaneous recording and multiscreen viewing on
both monitors.
•
Simultaneous recording and playback and live viewing
multiscreen.
•
Can play back the recording formats of 6 different
manufacturers.
The system's user-friendly controls allow fast and easy
programming and operation. System4 units include an
onscreen menu for programming which is available in
English, French, German, Spanish, Dutch, or Italian.
Programming allows for either AutoSet or customized
system configuration via the Advanced Setup program. Help
screens provide explanation and instruction, guiding
operators step-by-step through the setup process. When
the AutoSet feature is enabled, System4 will automatically
configure itself for recording, sequencing, and video loss
listing based on the number of connected cameras.
All System4 models provide digital motion detection,
ensuring that cameras with motion present become the
priority for recording. Recording may be programmed as
either "exclusive" or "interleave", based on motion or alarm
detection. Four levels of sensitivity are available including
direction sensing, target size, and a special walk-through
