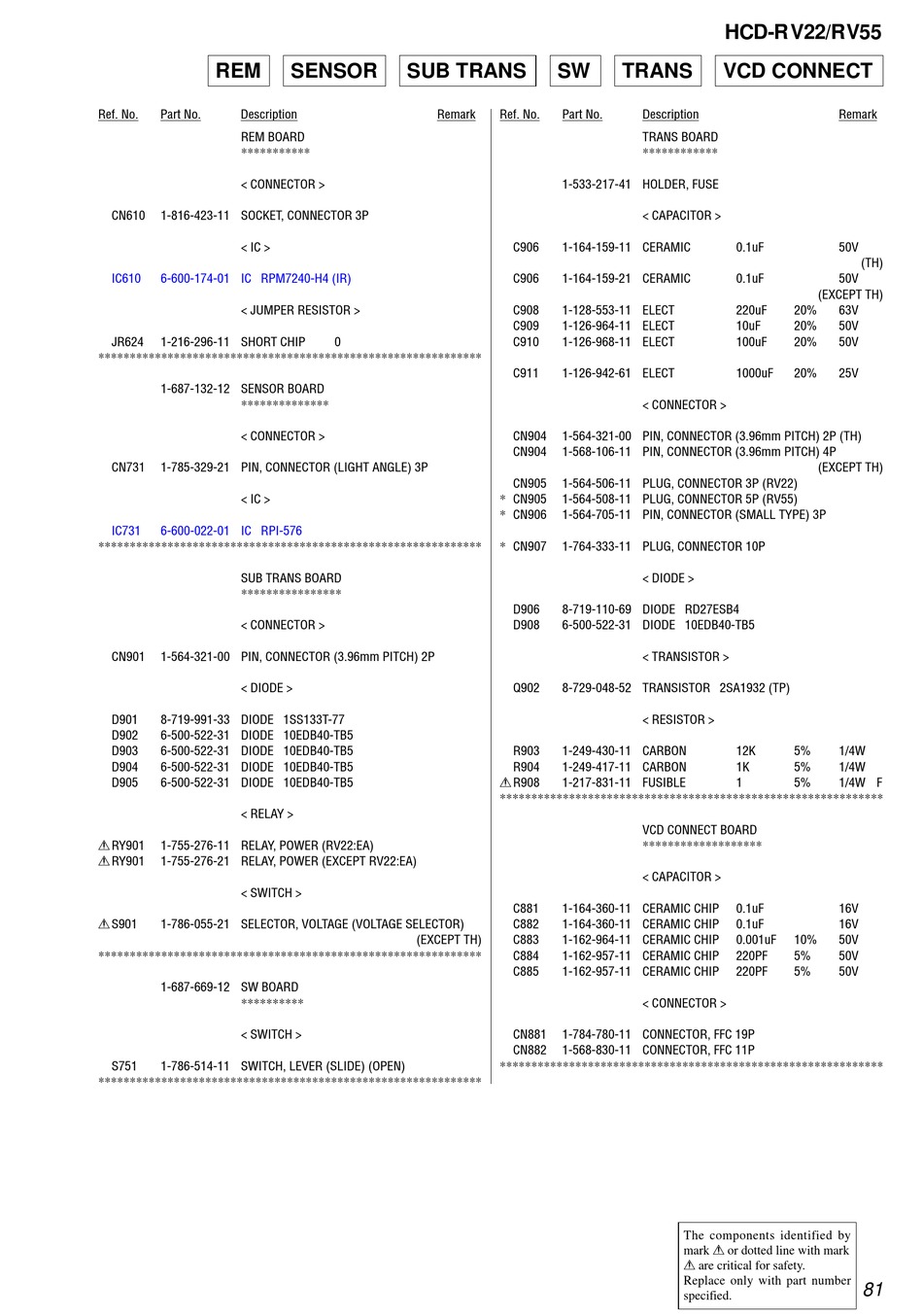

Sony HCD-RV22 Service Manual page 81

REM
Ref. No. Part No. Description
REM BOARD
***********
< CONNECTOR >
CN610 1-816-423-11 SOCKET, CONNECTOR 3P
< IC >
IC610 6-600-174-01 IC RPM7240-H4 (IR)
< JUMPER RESISTOR >
JR624 1-216-296-11 SHORT CHIP
*************************************************************
1-687-132-12 SENSOR BOARD
**************
< CONNECTOR >
CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P
< IC >
IC731 6-600-022-01 IC RPI-576
*************************************************************
SUB TRANS BOARD
****************
< CONNECTOR >
CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D901 8-719-991-33 DIODE 1SS133T-77
D902 6-500-522-31 DIODE 10EDB40-TB5
D903 6-500-522-31 DIODE 10EDB40-TB5
D904 6-500-522-31 DIODE 10EDB40-TB5
D905 6-500-522-31 DIODE 10EDB40-TB5
< RELAY >
0 RY901 1-755-276-11 RELAY, POWER (RV22:EA)
0 RY901
1-755-276-21 RELAY, POWER (EXCEPT RV22:EA)
< SWITCH >
0 S901
1-786-055-21 SELECTOR, VOLTAGE (VOLTAGE SELECTOR)
*************************************************************
1-687-669-12 SW BOARD
**********
< SWITCH >
S751 1-786-514-11 SWITCH, LEVER (SLIDE) (OPEN)
*************************************************************
SENSOR SUB TRANS
Remark
0
(EXCEPT TH)
SW TRANS
Ref. No. Part No. Description
TRANS BOARD
************
1-533-217-41 HOLDER, FUSE
< CAPACITOR >
C906 1-164-159-11 CERAMIC
C906 1-164-159-21 CERAMIC
C908 1-128-553-11 ELECT
C909 1-126-964-11 ELECT
C910 1-126-968-11 ELECT
C911 1-126-942-61 ELECT
< CONNECTOR >
CN904 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P (TH)
CN904 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P
CN905 1-564-506-11 PLUG, CONNECTOR 3P (RV22)
* CN905 1-564-508-11 PLUG, CONNECTOR 5P (RV55)
* CN906 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
* CN907 1-764-333-11 PLUG, CONNECTOR 10P
< DIODE >
D906 8-719-110-69 DIODE RD27ESB4
D908 6-500-522-31 DIODE 10EDB40-TB5
< TRANSISTOR >
Q902 8-729-048-52 TRANSISTOR 2SA1932 (TP)
< RESISTOR >
R903 1-249-430-11 CARBON
R904 1-249-417-11 CARBON
0 R908 1-217-831-11 FUSIBLE
*************************************************************
VCD CONNECT BOARD
*******************
< CAPACITOR >
C881 1-164-360-11 CERAMIC CHIP
C882 1-164-360-11 CERAMIC CHIP
C883 1-162-964-11 CERAMIC CHIP
C884 1-162-957-11 CERAMIC CHIP
C885 1-162-957-11 CERAMIC CHIP
< CONNECTOR >
CN881 1-784-780-11 CONNECTOR, FFC 19P
CN882 1-568-830-11 CONNECTOR, FFC 11P
*************************************************************
HCD-RV22/RV55
VCD CONNECT
Remark
0.1uF 50V
0.1uF 50V
(EXCEPT TH)
220uF 20% 63V
10uF 20% 50V
100uF 20% 50V
1000uF 20% 25V
(EXCEPT TH)
12K 5% 1/4W
1K 5% 1/4W
1 5% 1/4W F
0.1uF 16V
0.1uF 16V
0.001uF 10% 50V
220PF 5% 50V
220PF 5% 50V
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
(TH)
81
