Daewoo DVQ-10H1FCN Service Manual

Chassis : cn-083 tv/vcr combination
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Service Manual

TV / VCR Cmobination
CHASSIS : CN-083
Model : DVQ-10H1FCN
(DVQ-9H1FC)
 Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS Corp.
http : //svc.dwe.co.kr
S/M No. : TCN083BEF0
10H1FCN (DVQ-9H1FC)
Nov. 2002

Advertisement

Table of Contents
loading

Related Manuals for Daewoo DVQ-10H1FCN

Summary of Contents for Daewoo DVQ-10H1FCN

  • Page 1: Service Manual

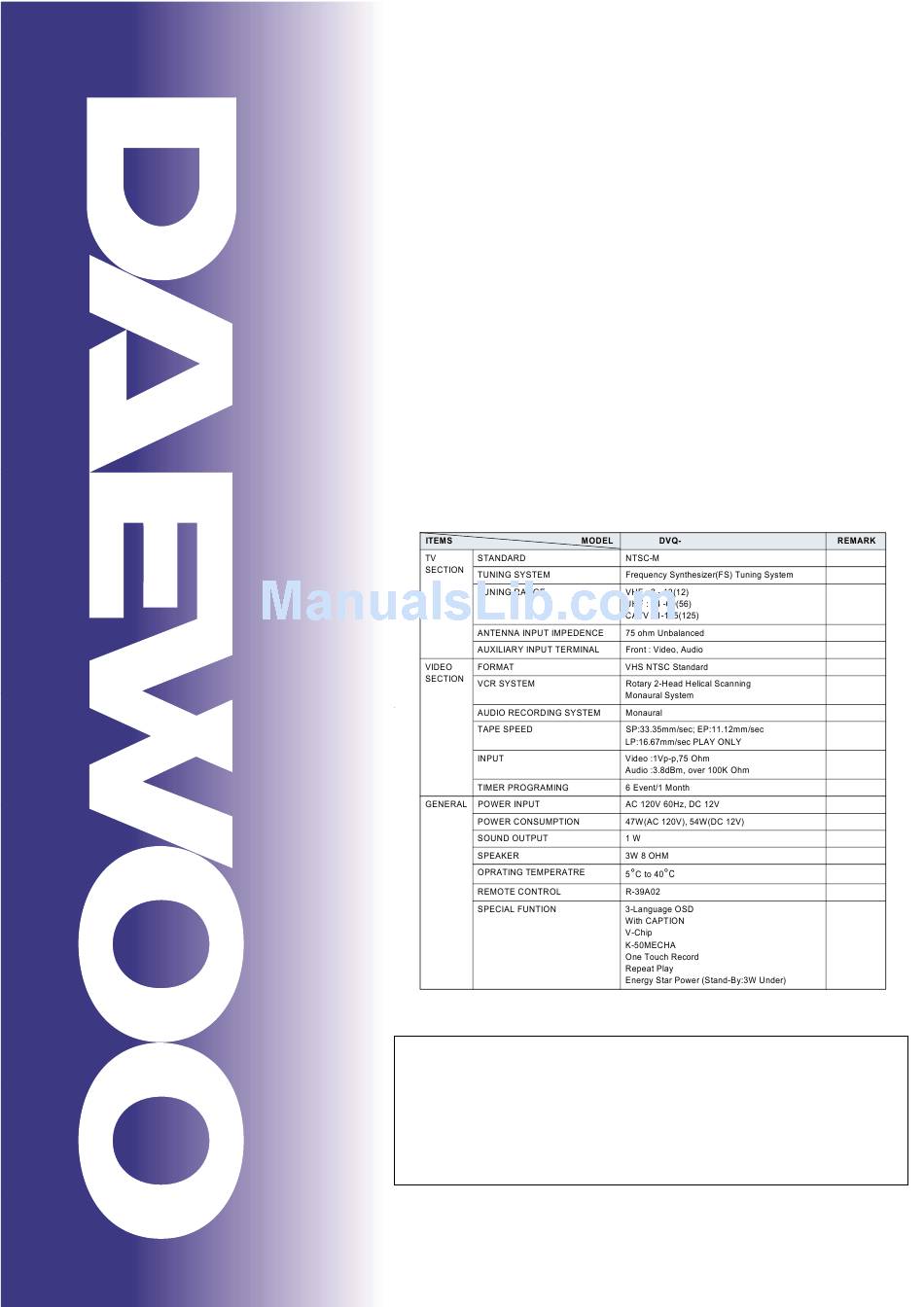

    S/M No. : TCN083BEF0 Service Manual TV / VCR Cmobination CHASSIS : CN-083 Model : DVQ-10H1FCN (DVQ-9H1FC) 10H1FCN (DVQ-9H1FC)  Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTION SPECIFICATION CIRCUIT BLOCK DIAGRAM ALIGNMENT INSTRUCTIONS 1.SERVICE MODE ADJUSTMENTS 2.ASSEMBLY ADJUSTMENTS 3.VCR DECK ADJUSTMENTS SCHEMATIC DIAGRAM EXPLODED VIEW PRINTED CIRCUIT BOARD SERVICE PARTS LIST APPENDIX ( Appendix is provided only by internet [http://svc.dwe.co.kr] ) IC DESCRIPTION TROUBLESHOOTING GUIDE...

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION...
  • Page 4 SAFETY INSTRUCTION...
  • Page 5 SAFETY INSTRUCTION...

  • Page 6: Specification

    SPECIFICATION 10H1FCN(DVQ-9H1FC)

  • Page 7: Circuit Block Diagram

    CIRCUIT BLOCK DIAGRAM...
  • Page 8 CONNECTION DIAGRAM...

  • Page 9: Alignment Instructions

    ALIGNMENT INSTRUCTIONS...
  • Page 10 ALIGNMENT INSTRUCTIONS...

  • Page 11: Assembly Adjustments

    ALIGNMENT INSTRUCTIONS -10-...
  • Page 12 ALIGNMENT INSTRUCTIONS -11-...

  • Page 13: Vcr Deck Adjustments

    ALIGNMENT INSTRUCTIONS -12-...

  • Page 14: Schematic Diagram

    SCHEMATIC DIAGRAM (POWER & DEF.) -13-...
  • Page 15 SCHEMATIC DIAGRAM(MAIN) -14-...

  • Page 16: Exploded View

    4859808660 UNION PCB 246 X 246 X 51.6 4851941600 DRN-9200 4859816191 MAIN PCB 330 X 246 X t1.6 4859610440 A23KQU22X02 -15-...

  • Page 17: Printed Circuit Board

    PRINTED CIRCUIT BOARD(MAIN) -16-...
  • Page 18 PRINTED CIRCUIT BOARD(POWER & DEF.) -17-...

  • Page 19: Service Parts List

    TRANSMITTER R-39A02 (AAA) I805A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN REMOCON IS02 1K1A6801K- IC MOTOR DRIVER KIA6801K ZZ110 PTACPWH611 ACCESSORY AS DVQ-10H1FCN IS03 1AT24C08PC AT24C08-10PC 00001 4850A02510 ANT ROD S3BW216B (L=600 MM) IT01 1356VF6--- IC PREAMP 356VF6 00002 4850A00250...
  • Page 20 SERVICE PARTS LIST LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK CC120 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY13 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC123 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCY20 HCBK103KCA C CHIP CERA...
  • Page 21 R CHIP 1/10 510 OHM J 2012 RCT12 HRFT132JCA R CHIP 1/10 1.3K OHM J 2012 ZZ200 PTMPJ0H611 PCB MAIN (RHU) AS DVQ-10H1FCN RCT13 HRFT202JCA R CHIP 1/10 2K OHM J 2012 C132 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP...
  • Page 22 R M-OXIDE FILM 2W 10 OHM J SMALL CY07 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP ZZ200 PTMPJRH611 PCB MAIN RADIAL AS DVQ-10H1FCN CY09 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C101 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
  • Page 23 AWG22 1/0.65 TIN COATING XY01 5XEX3R579B CRYSTAL QUARTZ HC-49U 3.579545MHZ 15PPM J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING ZZ200 PTMPJAH611 PCB MAIN AXIAL AS DVQ-10H1FCN J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING A001 4859816191 PCB MAIN 330X246 S1B J026...
  • Page 24 SERVICE PARTS LIST LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J135 85801065GY WIRE COPPER...
  • Page 25 R CARBON FILM 1/6 10K OHM J RS50 RD-AZ102J- R CARBON FILM 1/6 1K OHM J RY42 RD-AZ184J- R CARBON FILM 1/6 180K OHM J RS51 RD-AZ102J- R CARBON FILM 1/6 1K OHM J ZZ300 PTPWMSH611 PCB POWER MANUAL AS DVQ-10H1FCN -24-...
  • Page 26 1LA78041-- + 7174300811 L804 58Q0000093 COIL DELAY LINE RS208 00001 1LA78041-- IC VERTICAL LA78041 ZZ200 PTPWJBH611 PCB POWER M-10 AS DVQ-10H1FCN 0000A 4857027100 HEAT SINK SPCC T1.0+SN E001 4856310300 EYE LET BSR T0.2 (R1.6) 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN...
  • Page 27 Q824 TKTC3198Y- KTC3198Y R907 RS02Z153JS R M-OXIDE FILM 2W 15K OHM J SMALL Q825 TKTC3198Y- KTC3198Y ZZ200 PTPWJRH611 PCB POWER RADIAL AS DVQ-10H1FCN Q826 TKTC3198Y- KTC3198Y C301 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP Q852 TKTC3198Y- KTC3198Y C302 CEXF1V101V C ELECTRO 35V RSS 100MF (8X11.5) TP...
  • Page 28 SERVICE PARTS LIST LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK D453 D1N4937G-- DIODE 1N4937G (TAPPING) L803 5MC0000100 COIL BEAD HC-3550 D801 DLT2A05G-- DIODE LT2A05G (TP) L820 5MC0000100 COIL BEAD HC-3550 D802 DLT2A05G-- DIODE LT2A05G (TP) L851 5MC0000100...
  • Page 29 SERVICE PARTS LIST LOC PART CODE PART NAME DESCRIPTION REMARK R832 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R833 RN-AZ3600F R METAL FILM 1/6 360.0 OHM F R834 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R835 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R837 RD-AZ103J-...

  • Page 30: Ic Description

    IC DESCRIPTION Appendix 98 97 96 93 92 91 88 87 86 83 82 81 KEY1 P11 (0)/AN8 P9(0)/RLT AGC IN P7(7)/AN7 P9(1)/RLS OPTION P7(6)/AN6 P9(2)/INT0 POWER FAIL DRUM SELECT P7(5)/AN5 P9(3)/PWM0 DRUM PWM CAP PWM DEW SENSOR P7(4)/AN4 P9(4)/PWM1 VIDEO ENV P7(3)/AN3 P9(5)/PWM2...
  • Page 31 IC DESCRIPTION Appendix -30-...
  • Page 32 IC DESCRIPTION Appendix -31-...
  • Page 33 IC DESCRIPTION Appendix -32-...
  • Page 34 IC DESCRIPTION Appendix -33-...
  • Page 35 IC DESCRIPTION Appendix -34-...
  • Page 36 IC DESCRIPTION Appendix -35-...
  • Page 37 IC DESCRIPTION Appendix -36-...

  • Page 38: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Appendix -37-...
  • Page 39 TROUBLESHOOTING GUIDE Appendix -38-...
  • Page 40 TROUBLESHOOTING GUIDE Appendix -39-...
  • Page 41 TROUBLESHOOTING GUIDE Appendix -40-...
  • Page 42 TROUBLESHOOTING GUIDE Appendix -41-...
  • Page 43 TROUBLESHOOTING GUIDE Appendix -42-...
  • Page 44 TROUBLESHOOTING GUIDE Appendix -43-...
  • Page 45 TROUBLESHOOTING GUIDE Appendix -44-...
  • Page 46 TROUBLESHOOTING GUIDE Appendix -45-...
  • Page 47 TROUBLESHOOTING GUIDE Appendix -46-...
  • Page 48 TROUBLESHOOTING GUIDE Appendix -47-...
  • Page 49 TROUBLESHOOTING GUIDE Appendix ICS01 TIMER/ SYSCON ICY01 VCR Y/C/AUDIO/HA AMP LA71076AM -48-...
  • Page 50 -49-...
  • Page 51 TROUBLESHOOTING GUIDE Appendix -50-...
  • Page 52 TROUBLESHOOTING GUIDE Appendix ICS01 TIMER/ SYSCON ICY01 VCR Y/C LA71076AM -51-...
  • Page 53 TROUBLESHOOTING GUIDE Appendix ICS01 TIMER/ SYSCON ICY01 VCR Y/C LA71076AM -52-...
  • Page 54 TROUBLESHOOTING GUIDE Appendix ICS01 TIMER/ SYSCON ICY01 VCR Y/C LA71076AM -53-...
  • Page 55 TROUBLESHOOTING GUIDE Appendix -54-...

This manual is also suitable for:

Dvq-9h1fc
