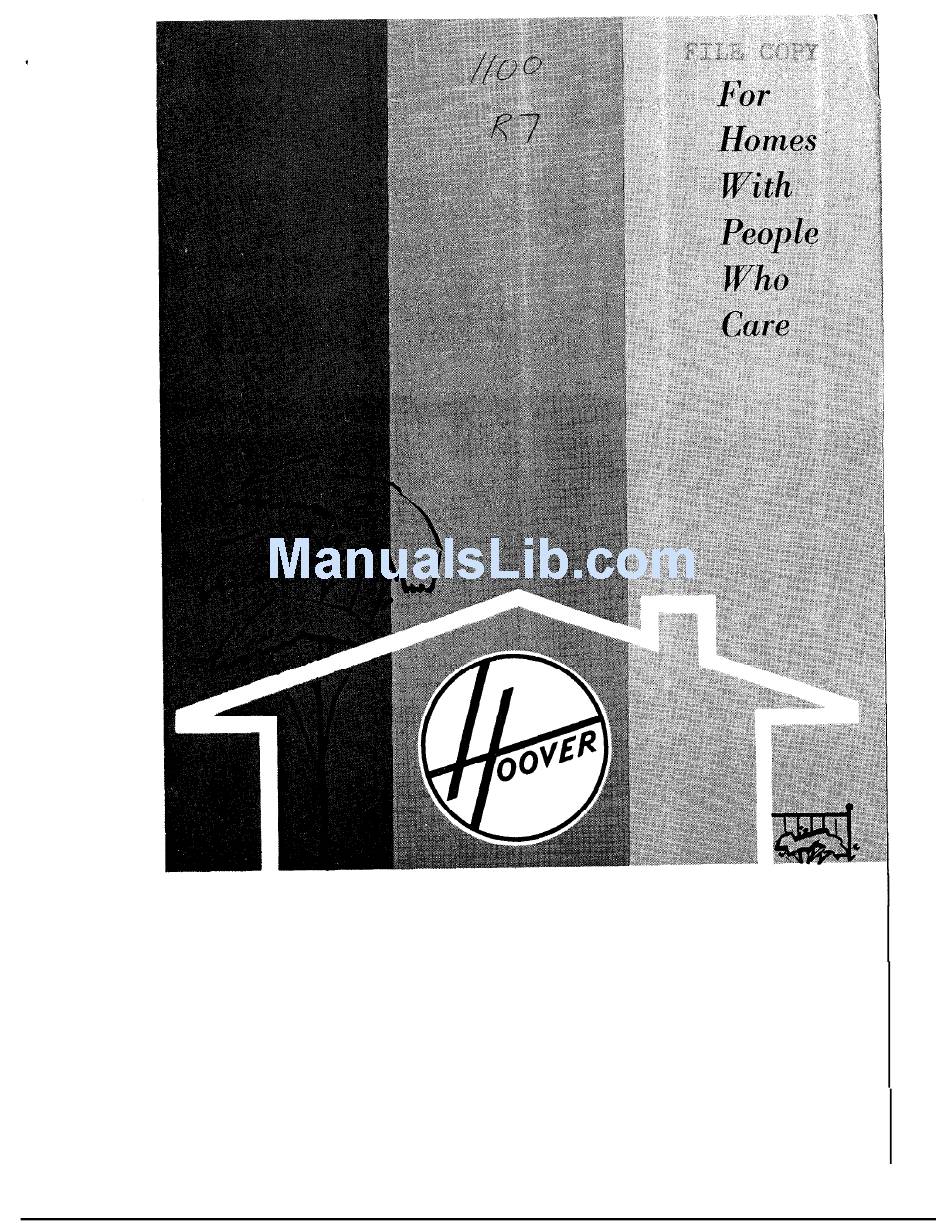

- Page 1 Instructions for Y O U R N E W H O O V E R D I A L - A - M A T I C C L E A N E R M o d e l 1 1 0 0...
- Page 2 HANDLE GRIP OPENING FOR HANGING CLEANER IN STORAGE AREA O N / O F F SWITCH / C O V E R LATCH NOZZL HOSE MODEL 1100 G HANDLE...
- Page 3 TO ATTACH HANDLE TO CLEANER I. Remove tape and screw from handle socket and set aside for later use. 2. Connect electric plug from bottom of handle to electric plug projecting from handle socket. Make sure plug assembly is positioned as shown in illustration.
- Page 4 For low pile, sculptured, or multi-level rugs, necessary to move the lever to- ward “HIGH”. When you have the proper setting on the dial, your Hoover will push easily and clean thor- oughly. THIS IS THE ttHEART” OF Y DIAL-A-MAT/C GIVES...
-
Page 5: Cleaning Tools
HOOVER DIAL-A-MATIC CLEANER A VACUUM CbEANER THAT YAS EVER BEEN DEVISED. SE OF SET THE DIAL FOR CLEANING TOOLS The handle of the cleaner should be in storage position (See page 2) when cleaning tools are used. When the handle is in this position, the... -
Page 6: Floor Brush
THE CLEANING TOOLS (See Page 5 setting Suction Control Dial when using tools.) The cleaning tools have many uses. Some are listed below: 1. TUFFLEX HOSE Double vinyl reinforced with nylon mesh for long, trouble-free life. The light flexible hose has a vinyl tab, so it can be hung on the cleaner or on a hook in a closet. - Page 7 TO CONNECT HOSE TO CLEANER Insert hose connector in opening below dial. Turn hose connector in either direction until it locks in place. TO CONNECT TOOLS To connect the cleaning tools to either the telescoping wand or hose, press down on the plastic latch and fit the attachment into place making sure the button on the attachment is locked in place.
-
Page 8: Helpful Hints
HELPFUL HINTS EASY TO CARRY Use the comfort- able handle grip for carrying your Hoover cleaner, or move it from room to room by tipping it back on wheels and pushing it. DON’T PICK UP TACKS sharp objects should not be picked up by the cleaner. - Page 9 Check Bag (See Below.) 5. Check Agitator Brushes (Page 12.) THE THROW-AWAY BAG To assure that your Hoover cleaner operates at peak performance it is imperative that you use only genuine Hoover Throw-Away Filter Bags made by The Hoover Company. Genuine Hoover bags can be identified by the Hoover Medallion.
-
Page 10: The Belt
WHERE TO BUY BAGS Keep a supply of Throw-Away Bags on hand. They may be purchased at your local Authorized Hoover Dealer (listed in in the Yellow Pages of your Telephone Directory under “Vac- uum Cleaners” - Hoover) or from Hoover Factory Branch Service Stations listed on the service page of this book. - Page 11 HOW TO REPLACE THE BELT Turn cleaner over. Remove metal plate on bottom of cleaner by pushing latches toward the out- side of cleaner. Lift plate to re- lease it from wire holders. Push latches, that hold agitator, in and toward center of cleaner until they free.
- Page 12 Be- cause of this, when buying a new belt, you should always insist on a genuine Hoover belt. Some other belts on the market, not manufactured under Hoover design and quality controls, do not operate the agitator correctly and create undue stress which will damage your Hoover cleaner.
- Page 13 2. After plate is removed, pry out the end section as shown in illustration. 3. After plate is removed, tap the shaft gently with a hammer. 4. Pull other plate and the shaft from agitator. 5. Remove brushes by pull- ing them from agitator.
- Page 14 SERVICING YOUR HOOVER APPLIANCE Service and genuine Hoover replacement parts may be obtained from Hoover Factory Branch Service Stations or consult the Yellow Pages of your Telephone Directory under Vacuum Cleaners-Hoover. For Service in Warranty Period follow instructions set forth in Guarantee.
- Page 15 W O R L D F A M O U S H O O V E R A P P L I A N C E S DIAL-A-MATIC PORTABLE CLEANER FLOOR WASHER LARK CLEANER SHAMPOO-POLISHER ILISHER-SCRUBBER PIXIE CLEANER DUSTETTE STEAM-DRY IRON SHAMPOO WAX WASHER-SPIN DRYER CAN OPENER COMMERCIAL COMMERCIAL VACUUM CLEANER FLOOR MACHINE HAIR DRYER...
- Page 16 No responsibility will be assumed for damage resulting from the use of other than genuine Hoover replacement parts. For service under this guarantee, return the defective part or appliance, transportation prepaid, to the nearest Hoover Factory Branch Serv- ice Station (listed on the service page in this book).
