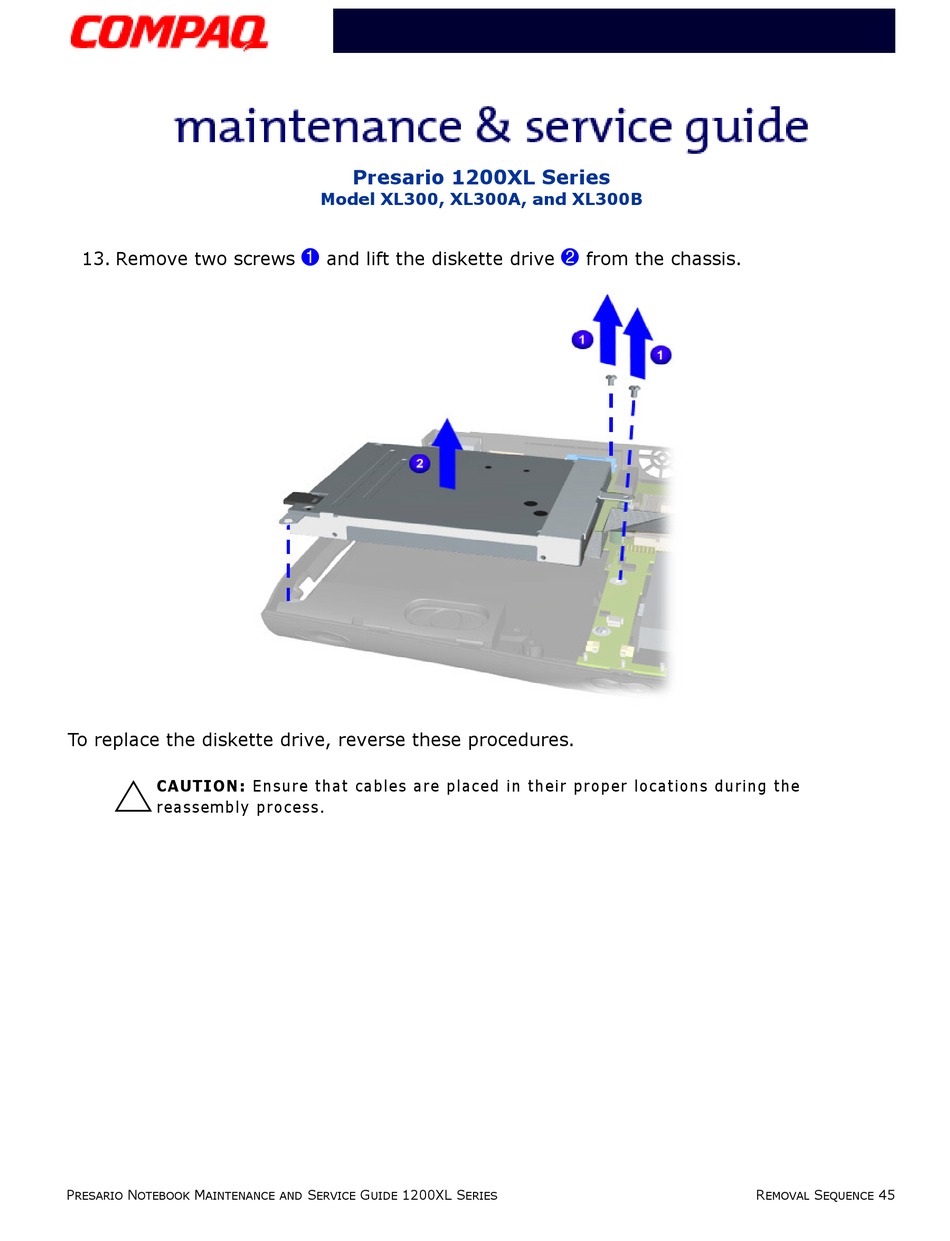

Compaq Presario 1200XL series Maintenance & Service Manual page 45

Presario 1200XL Series
Model XL300, XL300A, and XL300B
1 2
13. Remove two screws and lift the diskette drive from the chassis.
To replace the diskette drive, reverse these procedures.
Ä
CAUTION: Ensure that cables are placed in their proper locations during the
reassembly process.
