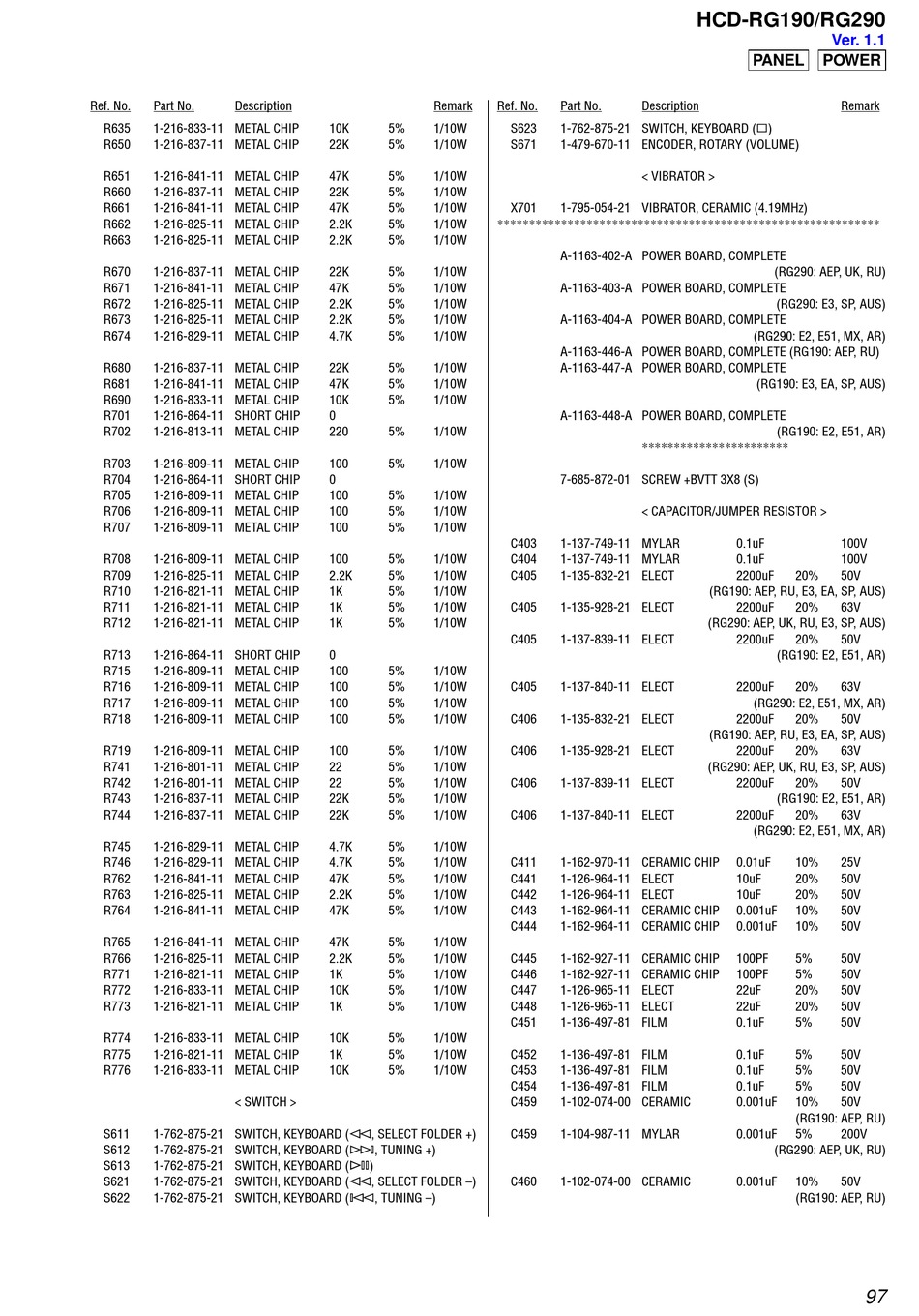

Sony HCD-RG190 Service Manual page 97

Ref. No. Part No. Description
R635 1-216-833-11 METAL CHIP
R650 1-216-837-11 METAL CHIP
R651 1-216-841-11 METAL CHIP
R660 1-216-837-11 METAL CHIP
R661 1-216-841-11 METAL CHIP
R662 1-216-825-11 METAL CHIP
R663 1-216-825-11 METAL CHIP
R670 1-216-837-11 METAL CHIP
R671 1-216-841-11 METAL CHIP
R672 1-216-825-11 METAL CHIP
R673 1-216-825-11 METAL CHIP
R674 1-216-829-11 METAL CHIP
R680 1-216-837-11 METAL CHIP
R681 1-216-841-11 METAL CHIP
R690 1-216-833-11 METAL CHIP
R701 1-216-864-11 SHORT CHIP
R702 1-216-813-11 METAL CHIP
R703 1-216-809-11 METAL CHIP
R704 1-216-864-11 SHORT CHIP
R705 1-216-809-11 METAL CHIP
R706 1-216-809-11 METAL CHIP
R707 1-216-809-11 METAL CHIP
R708 1-216-809-11 METAL CHIP
R709 1-216-825-11 METAL CHIP
R710 1-216-821-11 METAL CHIP
R711 1-216-821-11 METAL CHIP
R712 1-216-821-11 METAL CHIP
R713 1-216-864-11 SHORT CHIP
R715 1-216-809-11 METAL CHIP
R716 1-216-809-11 METAL CHIP
R717 1-216-809-11 METAL CHIP
R718 1-216-809-11 METAL CHIP
R719 1-216-809-11 METAL CHIP
R741 1-216-801-11 METAL CHIP
R742 1-216-801-11 METAL CHIP
R743 1-216-837-11 METAL CHIP
R744 1-216-837-11 METAL CHIP
R745 1-216-829-11 METAL CHIP
R746 1-216-829-11 METAL CHIP
R762 1-216-841-11 METAL CHIP
R763 1-216-825-11 METAL CHIP
R764 1-216-841-11 METAL CHIP
R765 1-216-841-11 METAL CHIP
R766 1-216-825-11 METAL CHIP
R771 1-216-821-11 METAL CHIP
R772 1-216-833-11 METAL CHIP
R773 1-216-821-11 METAL CHIP
R774 1-216-833-11 METAL CHIP
R775 1-216-821-11 METAL CHIP
R776 1-216-833-11 METAL CHIP
< SWITCH >
S611 1-762-875-21 SWITCH, KEYBOARD (j, SELECT FOLDER +)
S612 1-762-875-21 SWITCH, KEYBOARD (L, TUNING +)
S613 1-762-875-21 SWITCH, KEYBOARD (7)
S621 1-762-875-21 SWITCH, KEYBOARD (j, SELECT FOLDER –)
S622 1-762-875-21 SWITCH, KEYBOARD (l, TUNING –)
Remark Ref. No.
10K 5% 1/10W
22K 5% 1/10W
47K 5% 1/10W
22K 5% 1/10W
47K 5% 1/10W
2.2K 5% 1/10W
************************************************************
2.2K 5% 1/10W
22K 5% 1/10W
47K 5% 1/10W
2.2K 5% 1/10W
2.2K 5% 1/10W
4.7K 5% 1/10W
22K 5% 1/10W
47K 5% 1/10W
10K 5% 1/10W
0
220 5% 1/10W
100 5% 1/10W
0
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
2.2K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
0
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
22 5% 1/10W
22 5% 1/10W
22K 5% 1/10W
22K 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
47K 5% 1/10W
2.2K 5% 1/10W
47K 5% 1/10W
47K 5% 1/10W
2.2K 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
Part No. Description
S623 1-762-875-21 SWITCH, KEYBOARD (s)
S671 1-479-670-11 ENCODER, ROTARY (VOLUME)
< VIBRATOR >
X701 1-795-054-21 VIBRATOR, CERAMIC (4.19MHz)
A-1163-402-A POWER BOARD, COMPLETE
A-1163-403-A POWER BOARD, COMPLETE
A-1163-404-A POWER BOARD, COMPLETE
A-1163-446-A POWER BOARD, COMPLETE (RG190: AEP, RU)
A-1163-447-A POWER BOARD, COMPLETE
A-1163-448-A POWER BOARD, COMPLETE
***********************
7-685-872-01 SCREW +BVTT 3X8 (S)
< CAPACITOR/JUMPER RESISTOR >
C403 1-137-749-11 MYLAR
C404 1-137-749-11 MYLAR
C405 1-135-832-21 ELECT
C405 1-135-928-21 ELECT
C405 1-137-839-11 ELECT
C405 1-137-840-11 ELECT
C406 1-135-832-21 ELECT
C406 1-135-928-21 ELECT
C406 1-137-839-11 ELECT
C406 1-137-840-11 ELECT
C411 1-162-970-11 CERAMIC CHIP
C441 1-126-964-11 ELECT
C442 1-126-964-11 ELECT
C443 1-162-964-11 CERAMIC CHIP
C444 1-162-964-11 CERAMIC CHIP
C445 1-162-927-11 CERAMIC CHIP
C446 1-162-927-11 CERAMIC CHIP
C447 1-126-965-11 ELECT
C448 1-126-965-11 ELECT
C451 1-136-497-81 FILM
C452 1-136-497-81 FILM
C453 1-136-497-81 FILM
C454 1-136-497-81 FILM
C459 1-102-074-00 CERAMIC
C459 1-104-987-11 MYLAR
C460 1-102-074-00 CERAMIC
HCD-RG190/RG290
Ver. 1.1
PANEL POWER
Remark
(RG290: AEP, UK, RU)
(RG290: E3, SP, AUS)
(RG290: E2, E51, MX, AR)
(RG190: E3, EA, SP, AUS)
(RG190: E2, E51, AR)
0.1uF 100V
0.1uF 100V
2200uF 20% 50V
(RG190: AEP, RU, E3, EA, SP, AUS)
2200uF 20% 63V
(RG290: AEP, UK, RU, E3, SP, AUS)
2200uF 20% 50V
(RG190: E2, E51, AR)
2200uF 20% 63V
(RG290: E2, E51, MX, AR)
2200uF 20% 50V
(RG190: AEP, RU, E3, EA, SP, AUS)
2200uF 20% 63V
(RG290: AEP, UK, RU, E3, SP, AUS)
2200uF 20% 50V
(RG190: E2, E51, AR)
2200uF 20% 63V
(RG290: E2, E51, MX, AR)
0.01uF 10% 25V
10uF 20% 50V
10uF 20% 50V
0.001uF 10% 50V
0.001uF 10% 50V
100PF 5% 50V
100PF 5% 50V
22uF 20% 50V
22uF 20% 50V
0.1uF 5% 50V
0.1uF 5% 50V
0.1uF 5% 50V
0.1uF 5% 50V
0.001uF 10% 50V
(RG190: AEP, RU)
0.001uF 5% 200V
(RG290: AEP, UK, RU)
0.001uF 10% 50V
(RG190: AEP, RU)
