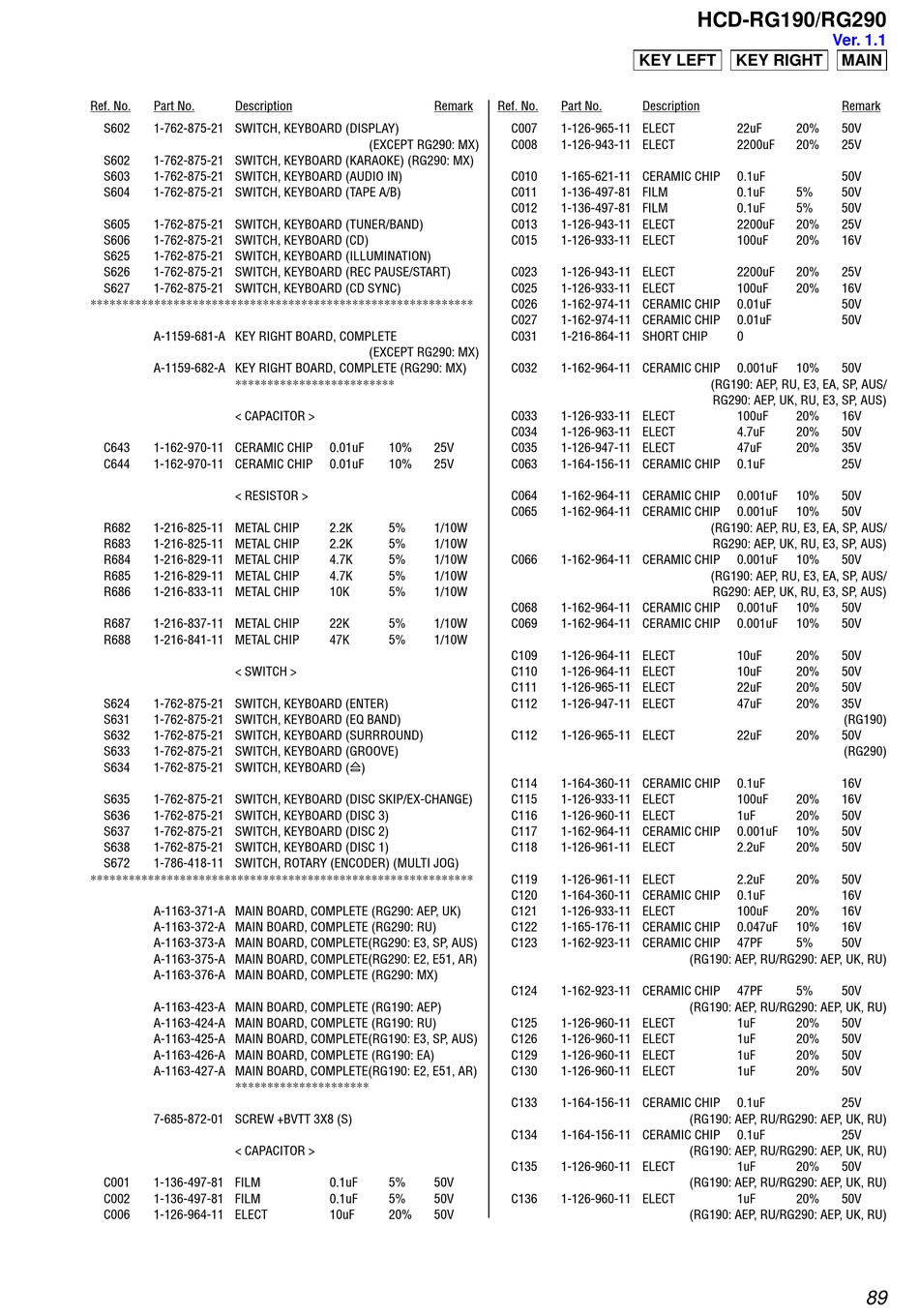

Sony HCD-RG190 Service Manual page 89

Ref. No. Part No. Description
S602 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S602 1-762-875-21 SWITCH, KEYBOARD (KARAOKE) (RG290: MX)
S603 1-762-875-21 SWITCH, KEYBOARD (AUDIO IN)
S604 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B)
S605 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
S606 1-762-875-21 SWITCH, KEYBOARD (CD)
S625 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION)
S626 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START)
S627 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)
************************************************************
A-1159-681-A KEY RIGHT BOARD, COMPLETE
A-1159-682-A KEY RIGHT BOARD, COMPLETE (RG290: MX)
*************************
< CAPACITOR >
C643 1-162-970-11 CERAMIC CHIP
C644 1-162-970-11 CERAMIC CHIP
< RESISTOR >
R682 1-216-825-11 METAL CHIP
R683 1-216-825-11 METAL CHIP
R684 1-216-829-11 METAL CHIP
R685 1-216-829-11 METAL CHIP
R686 1-216-833-11 METAL CHIP
R687 1-216-837-11 METAL CHIP
R688 1-216-841-11 METAL CHIP
< SWITCH >
S624 1-762-875-21 SWITCH, KEYBOARD (ENTER)
S631 1-762-875-21 SWITCH, KEYBOARD (EQ BAND)
S632 1-762-875-21 SWITCH, KEYBOARD (SURRROUND)
S633 1-762-875-21 SWITCH, KEYBOARD (GROOVE)
S634 1-762-875-21 SWITCH, KEYBOARD (A)
S635 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE)
S636 1-762-875-21 SWITCH, KEYBOARD (DISC 3)
S637 1-762-875-21 SWITCH, KEYBOARD (DISC 2)
S638 1-762-875-21 SWITCH, KEYBOARD (DISC 1)
S672 1-786-418-11 SWITCH, ROTARY (ENCODER) (MULTI JOG)
************************************************************
A-1163-371-A MAIN BOARD, COMPLETE (RG290: AEP, UK)
A-1163-372-A MAIN BOARD, COMPLETE (RG290: RU)
A-1163-373-A MAIN BOARD, COMPLETE(RG290: E3, SP, AUS)
A-1163-375-A MAIN BOARD, COMPLETE(RG290: E2, E51, AR)
A-1163-376-A MAIN BOARD, COMPLETE (RG290: MX)
A-1163-423-A MAIN BOARD, COMPLETE (RG190: AEP)
A-1163-424-A MAIN BOARD, COMPLETE (RG190: RU)
A-1163-425-A MAIN BOARD, COMPLETE(RG190: E3, SP, AUS)
A-1163-426-A MAIN BOARD, COMPLETE (RG190: EA)
A-1163-427-A MAIN BOARD, COMPLETE(RG190: E2, E51, AR)
*********************
7-685-872-01 SCREW +BVTT 3X8 (S)
< CAPACITOR >
C001 1-136-497-81 FILM
C002 1-136-497-81 FILM
C006 1-126-964-11 ELECT
Remark Ref. No.
(EXCEPT RG290: MX)
(EXCEPT RG290: MX)
0.01uF 10% 25V
0.01uF 10% 25V
2.2K 5% 1/10W
2.2K 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
10K 5% 1/10W
22K 5% 1/10W
47K 5% 1/10W
0.1uF 5% 50V
0.1uF 5% 50V
10uF 20% 50V
KEY LEFT
Part No. Description
C007 1-126-965-11 ELECT
C008 1-126-943-11 ELECT
C010 1-165-621-11 CERAMIC CHIP
C011 1-136-497-81 FILM
C012 1-136-497-81 FILM
C013 1-126-943-11 ELECT
C015 1-126-933-11 ELECT
C023 1-126-943-11 ELECT
C025 1-126-933-11 ELECT
C026 1-162-974-11 CERAMIC CHIP
C027 1-162-974-11 CERAMIC CHIP
C031 1-216-864-11 SHORT CHIP
C032 1-162-964-11 CERAMIC CHIP
C033 1-126-933-11 ELECT
C034 1-126-963-11 ELECT
C035 1-126-947-11 ELECT
C063 1-164-156-11 CERAMIC CHIP
C064 1-162-964-11 CERAMIC CHIP
C065 1-162-964-11 CERAMIC CHIP
C066 1-162-964-11 CERAMIC CHIP
C068 1-162-964-11 CERAMIC CHIP
C069 1-162-964-11 CERAMIC CHIP
C109 1-126-964-11 ELECT
C110 1-126-964-11 ELECT
C111 1-126-965-11 ELECT
C112 1-126-947-11 ELECT
C112 1-126-965-11 ELECT
C114 1-164-360-11 CERAMIC CHIP
C115 1-126-933-11 ELECT
C116 1-126-960-11 ELECT
C117 1-162-964-11 CERAMIC CHIP
C118 1-126-961-11 ELECT
C119 1-126-961-11 ELECT
C120 1-164-360-11 CERAMIC CHIP
C121 1-126-933-11 ELECT
C122 1-165-176-11 CERAMIC CHIP
C123 1-162-923-11 CERAMIC CHIP
C124 1-162-923-11 CERAMIC CHIP
C125 1-126-960-11 ELECT
C126 1-126-960-11 ELECT
C129 1-126-960-11 ELECT
C130 1-126-960-11 ELECT
C133 1-164-156-11 CERAMIC CHIP
C134 1-164-156-11 CERAMIC CHIP
C135 1-126-960-11 ELECT
C136 1-126-960-11 ELECT
HCD-RG190/RG290
Ver. 1.1
KEY RIGHT MAIN
Remark
22uF 20% 50V
2200uF 20% 25V
0.1uF 50V
0.1uF 5% 50V
0.1uF 5% 50V
2200uF 20% 25V
100uF 20% 16V
2200uF 20% 25V
100uF 20% 16V
0.01uF 50V
0.01uF 50V
0
0.001uF 10% 50V
(RG190: AEP, RU, E3, EA, SP, AUS/
RG290: AEP, UK, RU, E3, SP, AUS)
100uF 20% 16V
4.7uF 20% 50V
47uF 20% 35V
0.1uF 25V
0.001uF 10% 50V
0.001uF 10% 50V
(RG190: AEP, RU, E3, EA, SP, AUS/
RG290: AEP, UK, RU, E3, SP, AUS)
0.001uF 10% 50V
(RG190: AEP, RU, E3, EA, SP, AUS/
RG290: AEP, UK, RU, E3, SP, AUS)
0.001uF 10% 50V
0.001uF 10% 50V
10uF 20% 50V
10uF 20% 50V
22uF 20% 50V
47uF 20% 35V
(RG190)
22uF 20% 50V
(RG290)
0.1uF 16V
100uF 20% 16V
1uF 20% 50V
0.001uF 10% 50V
2.2uF 20% 50V
2.2uF 20% 50V
0.1uF 16V
100uF 20% 16V
0.047uF 10% 16V
47PF 5% 50V
(RG190: AEP, RU/RG290: AEP, UK, RU)
47PF 5% 50V
(RG190: AEP, RU/RG290: AEP, UK, RU)
1uF 20% 50V
1uF 20% 50V
1uF 20% 50V
1uF 20% 50V
0.1uF 25V
(RG190: AEP, RU/RG290: AEP, UK, RU)
0.1uF 25V
(RG190: AEP, RU/RG290: AEP, UK, RU)
1uF 20% 50V
(RG190: AEP, RU/RG290: AEP, UK, RU)
1uF 20% 50V
(RG190: AEP, RU/RG290: AEP, UK, RU)
