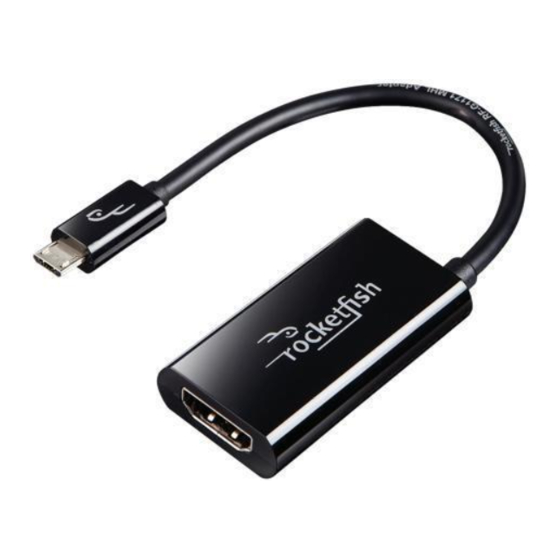

RocketFish RF-G1171 Quick Setup Manual

MHL HDTV Adapter
RF-G1171
QUICK SETUP GUIDE
Before using your new product, please read
these instructions to prevent any damage.
Thank you for purchasing this high
quality Rocketfish MHL HDTV adapter.
This adapter makes it easy to send HD
video and digital audio from an
MHL-enabled mobile device, such as a
smart phone or tablet, to a HDTV.
Features
• Supports 1080p HD video and 7.1/5.1
digital audio surround sound
playback
• Connects from the micro-USB port
on your MHL™-enabled phone or
tablet to an HDMI® input on a TV,
projector, or monitor (requires an
HDMI® cable, not included)
• Control your smart phone content
with your TV remote
• Simultaneously charge your phone
while you are using it to send audio
and video to your HDTV
• Includes adapter for Samsung
MHL-enabled devices
Using your MHL adapter
1 Connect a micro USB wall charger (not
included) to the micro USB jack on the
MHL adapter and then into a power
outlet.
Note: We recommend using the micro USB
charger that came with your phone or other
device.
2 Connect one end of your HDMI cable
(not included) to the adapter and the
other to an available HDMI input jack on
your TV.
micro USB wall charger
Power outlet
HDMI cable
3 Connect the micro USB connector of
the MHL HDTV Adapter to an
MHL-enabled smart phone or tablet.
Important Note: Some Samsung MHL-enabled devices
require the included adapter to be connected to the
USB/MHL connector on the Samsung device. The micro USB
connector on the MHL cable then connects to the adapter.
Devices that require the adapter include the Galaxy S® III and
4 and Galaxy Note® II.
4 Turn on your smart phone or tablet.
5 Switch your TV to the HDMI input/
source that matches the input jack on
your TV. Content from your smart
phone or tablet will be displayed on
the TV.
MHL-enabled device
OR
Samsung Adapter (Optional)
Use only with certain
Samsung devices
MHL HDTV
Adapter
