RocketFish RF-GWII008 Quick Start Manual

Wii LAN Adapter

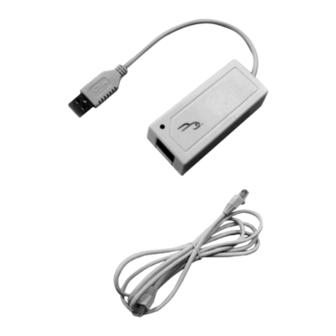

Package contents
• RF-GWII008 LAN adapter
• 6' (1.8 m) LAN cable
Features
• Transmission speed:
10M/100M self-reacting
• LED indicator for
connection and
transmission
• Working current: 170mA
• Rated voltage: 5V
• Rated power: 850mW
• Working temperature:
30 - 158° F (0-70° C)
• Dimensions: 3.15" × 1.38" × .87"
(80 × 35 × 22 mm)
RF-GWII008 QUICK START GUIDE
RF-GWII008_08-1839_QSG_V1_ENG.in1 1 RF-GWII008_08-1839_QSG_V1_ENG.in1 1
Connecting your adapter
Socket Router
LAN adapter
Modem
LAN cable
1 Connect one end of the supplied LAN cable to a router.
Connect the other end to your adapter.
2 Turn off your Wii console, then plug the adapter into one of the
USB ports on your Wii console.
3 Turn your Wii console back on and test the connection by using
your Wii remote control to navigate to Wii options:
• Wii Setting
• Wii system setting2
• Internet
• Connection settings
• Wired
• Connection test
If the adapter was connected properly, you will see "The
connection test was successful" on your screen. You may be
prompted to perform Wii system updates.
Notes
• There are two kinds of LAN cables: crossed and direct. Only
direct LAN cable can be connected with this LAN adapter.
• The transmission speed may slow down if the LAN is shared by
more than one device.
For more information about connecting your Wii to a network, see
the Wii user guide.
Cautions
Wii console • Do not plug or unplug the LAN adapter when the Wii console is
turned on.
• Make sure that the LAN adapter is connected correctly to your
Wii.
• This LAN adapter can only be used with a Wii. It does not work
alone or with other kind of device or game console.
• Do not use the LAN adapter if it is damaged in any way.
• Do not touch the plugs with your fi nger or anything metal.
• Do not dismantle, refi t, or repair the adapter in any way. You
may damage it, which will invalidate your warranty.
• Keep the adapter away from wet, hot, and oiled environments.
