Data sheet no. 6.25b
DCS 6000 Digital
Conference System
Conference Units
Microphone Unit
Chairman and
Delegate
How to order
DIS, Danish Interpretation Systems A/S, Vestre Teglgade 12, DK-2450 Copenhagen SV, Denmark, Tel.: +45 33 85 40 40, Fax: +45 33 85 40 41, e-mail: info@dis.cc

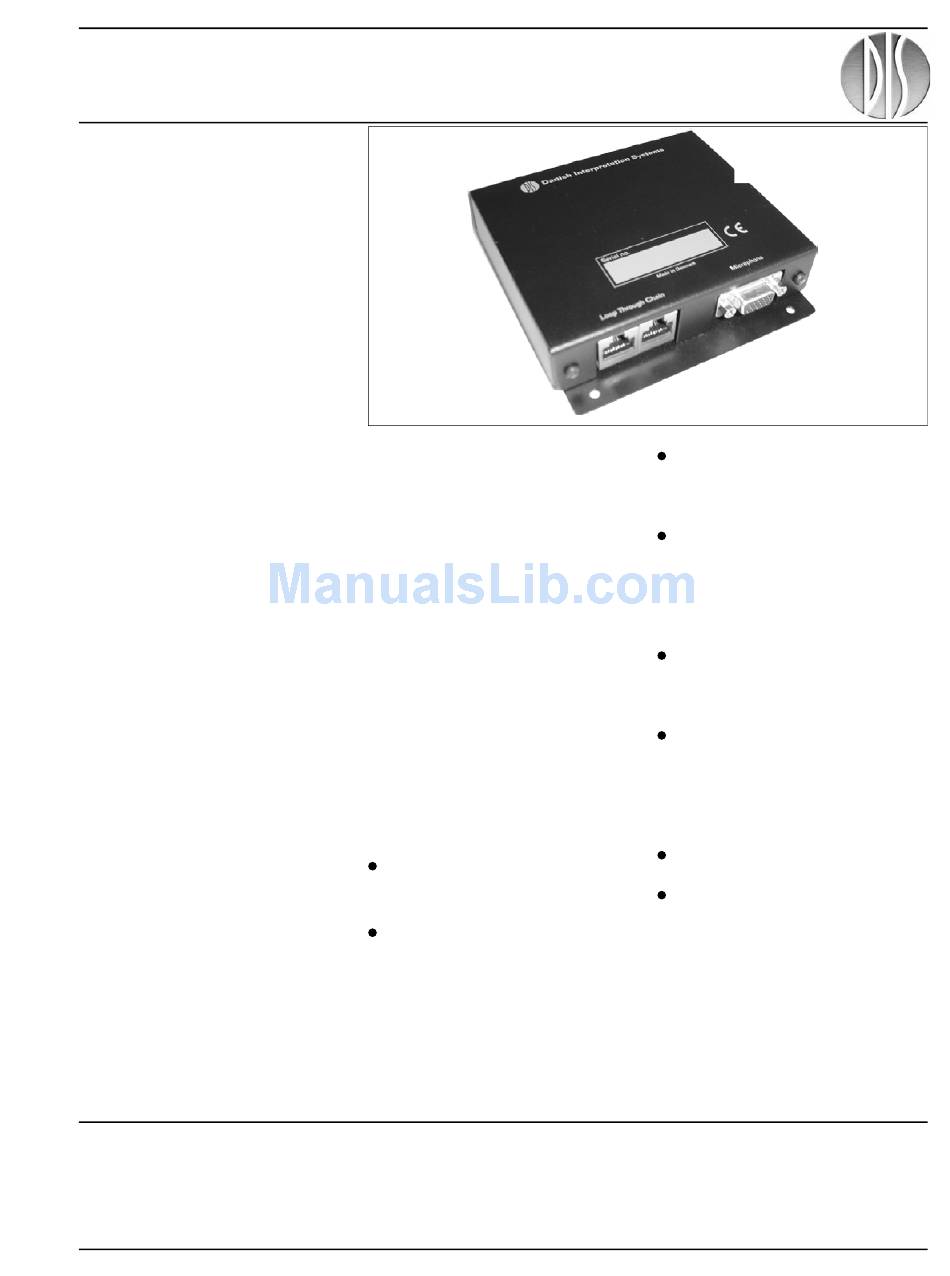

MU 6040D
The MU 6040C/D is a fully digital DSP-
microprocessor based microphone unit
designed for use together with custom
made front plates and external micro-
phone and loudspeaker.
The MU 6040 is designed for installa-
tion inside the conference furniture,
below tables or inside floor boxes.
The MU 6040 is automatically recog-
nised and receives a unique address in
the system. The MU 6040 is delivered
in a shielded metal mounting box.
The MU 6040 is connected to the
unique DIS digital communication bus
- the DCS-LAN as any other DCS
6000 unit.
The MU 6040 features:
Two versions - a delegate
(MU 6040D) and a chairman (MU
6040C) version
Connection for DIS high quality
electret condenser microphones
semi gooseneck type DIS GM 44xx
or hand held type HM 4042/4047.
All with lamp indication
Conference Units:
MU 6040D 15 31 58340
MU 6040C 15 31 58344
MU 6040C
Connection for DIS loudspeaker.
Signal mutes when the microphone
is activated
Digital audio and control transmis-
sion on STP/FTP Cat 5 cable using
DIS proprietary protocol gives
unique performance and high reli-
ability
Connection for front plates with ope-
rating buttons, LED indicators, loud-
speaker and microphone.
Multiple Operating modes deter-
mined by the DCS 6000 set-up.
Additional Chairman functions
via front plate:
"Delegate Off" button.
Extra button and LED for turning on
the microphone unit first in the queue
or other customized functions
Connection Cable for DCS
Order no.:
6000 components:
EC 6000-0,5
EC 6000-01
EC 6000-05
0,5 m - 50 m. cables
EC 6000-10
EC 6000-20
EC 6000 -50
