ADTRAN T1 CSU ACE Specifications

Product Features

T1 line-conditioning and
■
jitter tolerance per ANSI
T1.403, T1.102 and AT&T
TR 62411
Supports PRI
■
pass through
Supports framed (B8ZS
■
or AMI) or unframed
signal formats
Transmits unframed
■
"all 1s" during signal loss
from DTE or T1 network
Bantam test jacks
■
Front panel status LEDs
■
12 VDC powered
■
Desktop or wallmount
■
Industry-leading five-year
■
North American warranty

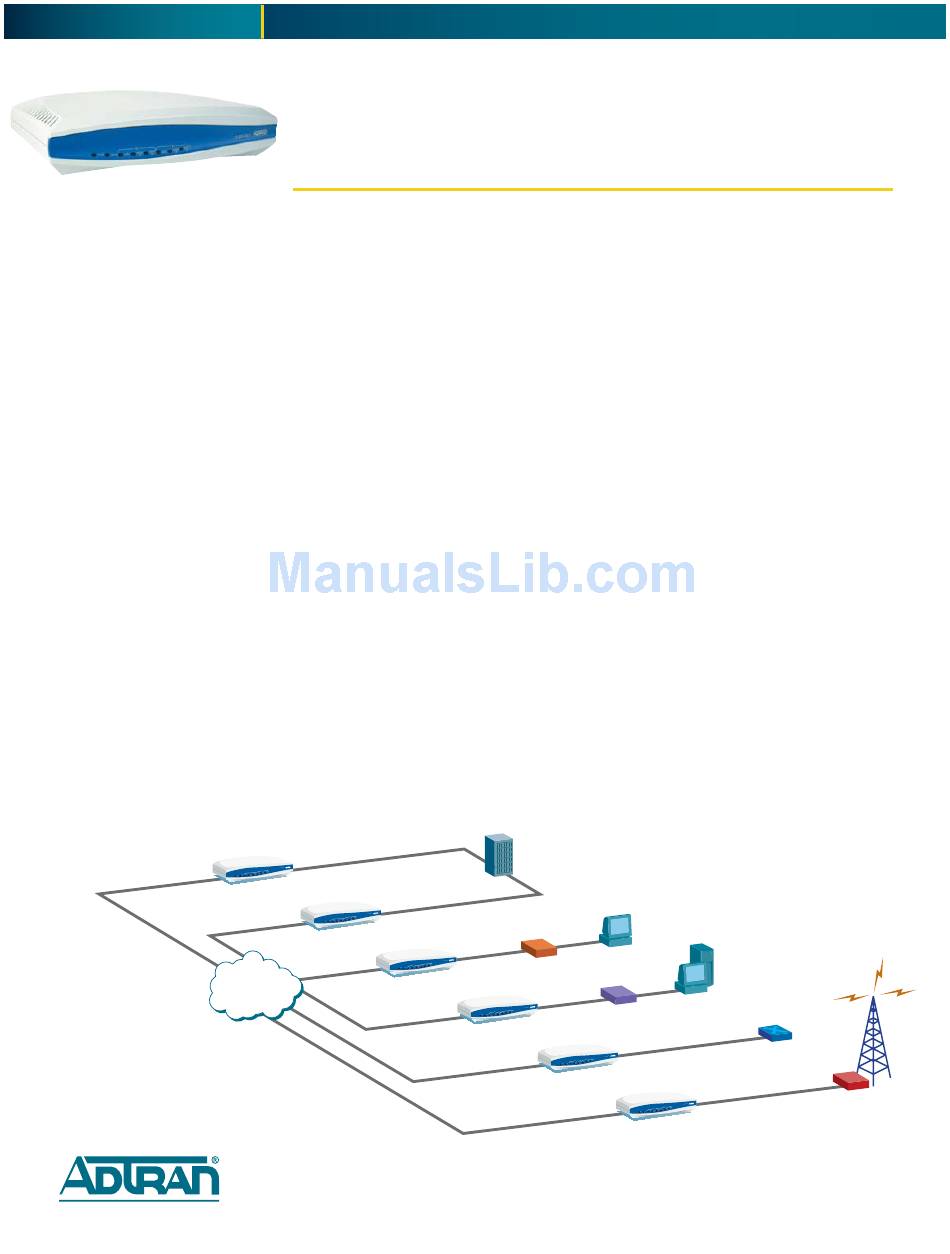

T1 CSU ACE
T1/FT1
T1/FT1
Network
T1 CSU ACE
Compact T1 Network Facility Interface
The ADTRAN T1 CSU ACE
®
full-featured T1 channel service unit used to
connect T1 data terminal equipment (DTE)
and T1 facilities. The unit is designed to
provide alarms, loopbacks, signal regenera-
tion, line build out, and surge protection.
The transport signal maintains the framing
format for both the WAN and customer inter-
faces and enables ISDN PRI pass through.
The unit is suitable for wallmounting
or desktop use. Five LEDs on the front of
the unit (POWER, SYNC, NETWORK LOS,
NETWORK MANUAL and REMOTE LB,
EQ LOS, EQ MANUAL and REMOTE LB)
display the status of the unit. On the back of
the unit an eight position dip switch provides
settings for customer premises equipment
and network line build out (LBO) distances
as well as manual loopback operation. The
two network LBO switches provide four
combination settings from 0 to 22.5dB in
7.5dB increments. The three switches allotted
for the equipment LBO offer five combination
settings for PBX termination at distances up
DSX - 1
PBX
T1 CSU ACE
DSX - 1
T1 CSU ACE
DSX - 1
T1/FT1
T1 CSU ACE
T1/FT1
T1/FT1
is a compact, to 655 feet. Two additional switches provide
™
for manual loopback (LB) in both the Equip-
ment (EQ) and Network (NET) directions.
The last switch is a spare.
The unit provides three bantam jack
pairs for testing purposes. Two pairs provide
interruptive transmit and receive access
toward the T1 network or the Data Terminal
Equipment (DTE) device. The third pair is a
non-interruptive connection for monitoring
data flowing in either direction. Two RJ-48C
modular jacks provide the network and DTE
connections. A 12 VDC wallmount power
supply that plugs into a receptacle is included
with the unit. The T1 CSU ACE also supports
wallmount applications via integrated
keyholes in the base.
For additional T1 applications, ADTRAN
provides several versions of the T1 CSU
offering various features and mounting
options. ADTRAN T1 CSU products include
the T1 ESF CSU and the rackmounted
T1 ESF CSU Smart 16 Card.
PC
Dial Backup
DSX - 1
Channel Bank
T1 CSU ACE
T1 CSU ACE
T1/FT1
Host/FEP
DSX - 1
Router
DSX - 1
Microwave
Radio
