American Standard Royton Countertop Sink 0571.000 Specifications

BARRIER FREE

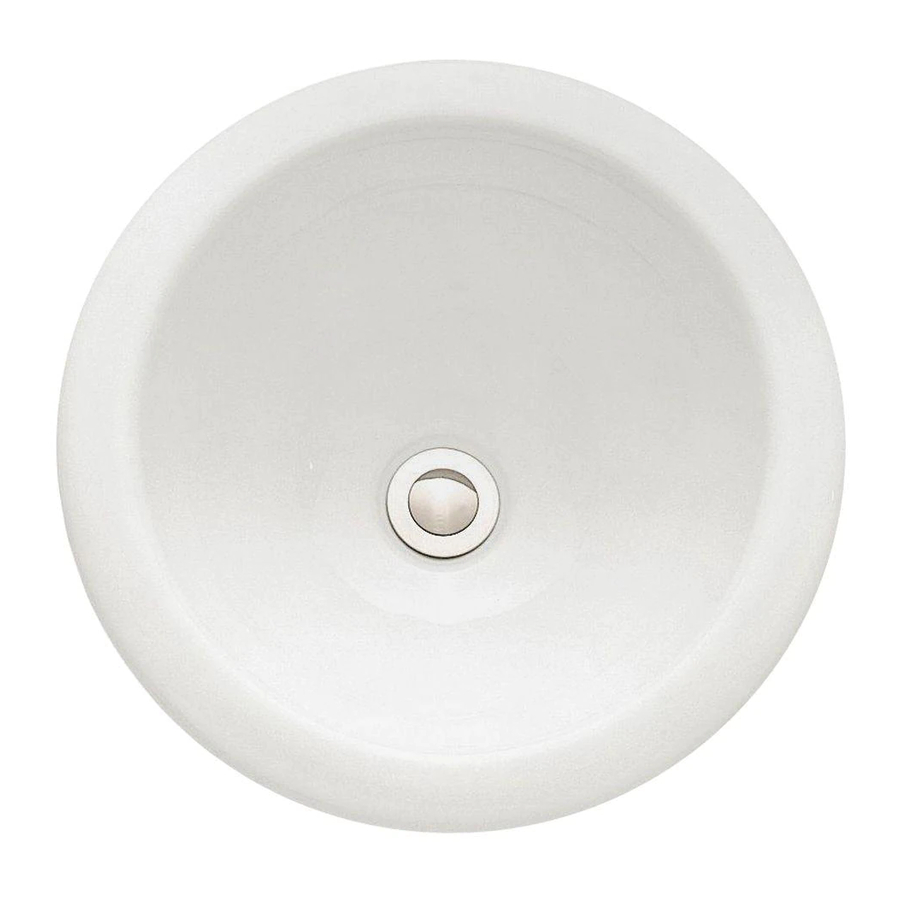

ROYTON™ COUNTERTOP SINK
• Made from vitreous china
• Self-rimming with cutout template supplied
• Center drain outlet
• Front overflow
❏ 0571.000 Round sink without faucet deck
Nominal Dimensions:
349mm (13-3/4") Round
Bowl size:
273mm (10-3/4") round
140mm (5-1/2") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone
❏ Linen ❏ Silver
❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
© 2008 AS America Inc.
FINISHED
WALL
OR
SPLASH BACK
COUNTERTOP
(BY OTHERS)
SEALING
COMPOUND
*
305mm
(12)
*
254mm
(10)
SUPPLIES
AS REQ'D.
1-1/4 O.D.
WASTE
1-1/4 O.D.
TAILPIECE
❏ Black
A
B
38mm
(1-1/2)
MIN.
C/L
COUNTERTOP
CUTOUT 324mm
(12-3/4) DIA.
16mm
(5/8)
168mm
(6-5/8)
787mm
(31)
SUGGESTED
848mm
203mm (33-3/8)
178mm
(8)
(7)
FITTING A
CENTER-SET 27mm(1-1/16)
SPREAD 32mm(1-1/4)
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP
*
ARE SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J33
ROYTON™
COUNTERTOP SINK
VITREOUS CHINA
51mm
(2)
MIN. 51mm
(2)
175mm
(6-7/8)
203mm
(8)
MIN.
349mm
(13-3/4)
848mm
(33-3/8)
686mm
(27)
MIN.
BARRIER FREE
CLEARANCE
FINISHED
FLOOR
B
102mm(4)
203mm(8)
610mm
(24)
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
152mm
(6)
MAX.
229mm
(9)
MIN.
Revised 2/08
