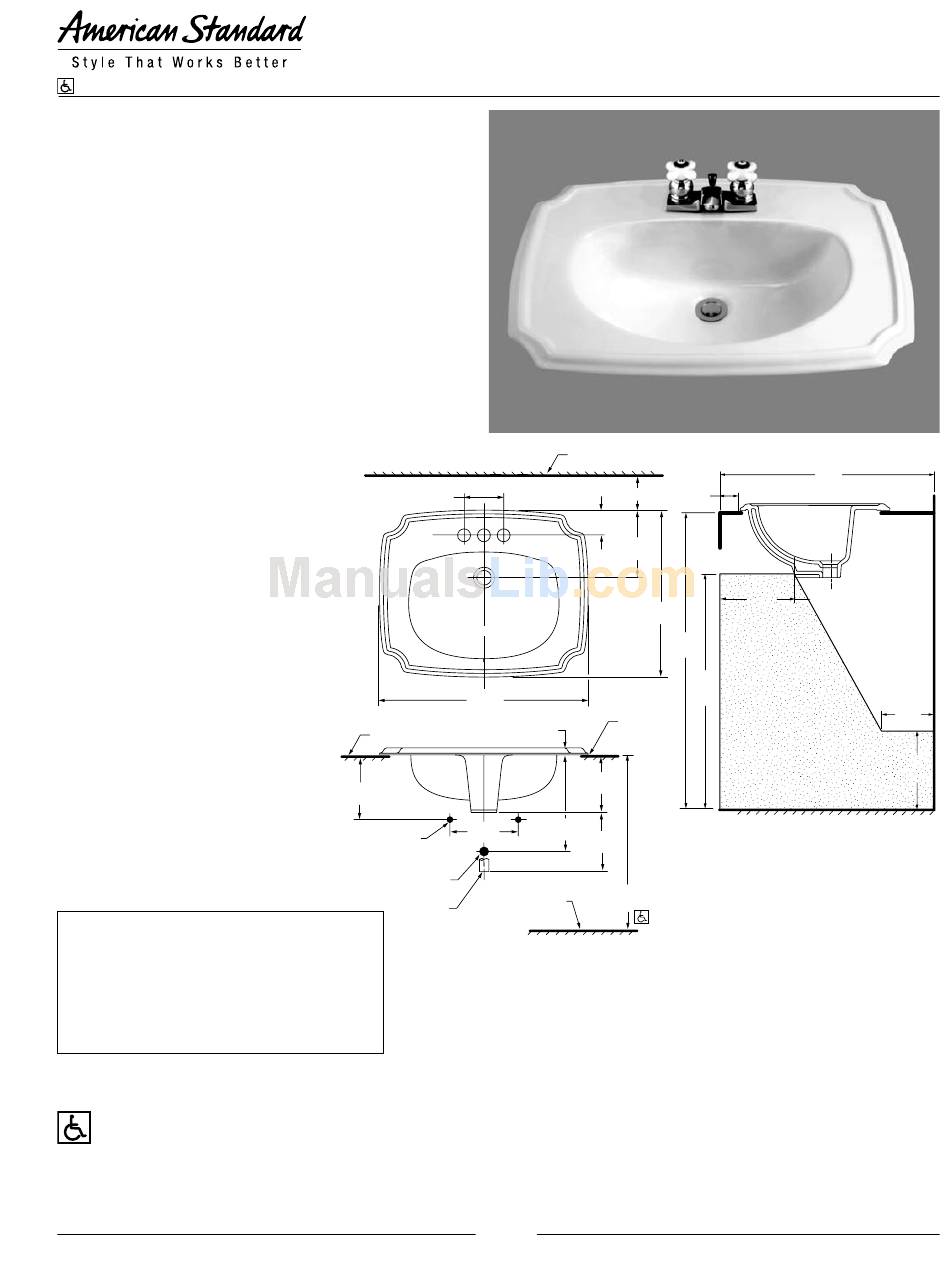

American Standard Antiquity Countertop Sink 0554.012 Specifications

BARRIER FREE
ANTIQUITY™ COUNTERTOP SINK
• Turn-of-the-century detailing on countertop sink
• Made from vitreous china
• Self-rimming with cutout template supplied
• Front overflow
• Faucet ledge (faucet not included)
❏ 0558.017 Faucet holes on 8" (203mm) centers
❏
0554.012 Faucet holes on 4" (102mm) centers
(illustrated)
Nominal Dimensions:
616 x 457mm
(24-1/4" x 18")
Bowl sizes:
432mm (17") wide
267mm (10-1/2") front to back
140mm (5-1/2") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
*Faucet:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 70mm (2-3/4") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
© 2008 AS America Inc.
102mm
(4)
C/L
616mm
(24-1/4)
COUNTERTOP (BY OTHERS)
*
248mm
(9-3/4)
203mm
SUPPLIES
(8)
AS REQ'D
1-1/4 O.D.
WASTE
FINISHED FLOOR
1-1/4 O.D
TAILPIECE
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J29
COUNTERTOP SINK
FINISHED WALL
OR SPLASHBACK
70mm
OPTIONAL
(2-3/4)
67mm
(2-5/8)
183mm
(7-3/16)
457mm
(18)
845mm
(33-1/4)
686mm
(27)
MIN.
SEALING
19mm
COMPOUND
(3/4)
178mm
(7)
*
343mm
(13-1/2)
178mm
(7)
787mm (31)
845mm (33-1/4)
ANTIQUITY™
VITREOUS CHINA
610mm
(24)
DRAWING FOR
203mm
DIMENSIONAL
(8)
PURPOSES ONLY.
IT IS NOT AN EXACT
MIN.
REPRESENTATION.
152mm
(6)
MAX.
BARRIER FREE
CLEARANCE
229mm
(9)
MIN.
Revised 2/08
