[16] INSTALLATION OF CERAMIC SHELF

1. Disconnect the power supply cord.
2. Open the door and block it open.
3. Make sure that the smooth surface of the ceramic shelf face up.
4. Make sure that the rubber packing without a fin of the ceramic shelf
faces the front of the oven.
NOTE: The three (3) rubber packings with the fins and the one (1)
rubber packing without a fin are attached to the four (4) edges
of the ceramic shelf. The one (1) rubber packing without a fin
is the front edge of the ceramic shelf.
5. Put the front edge of the ceramic shelf into the front edge of the
oven cavity bottom plate.
6. Push down the rear edge of the ceramic shelf into the oven cavity
bottom plate.
7. Now, the ceramic shelf is installed.
WARNING: Make sure that the rubber packing is not caught
between the oven door and the oven cavity front plate,
to avoid possible exposure to excessive microwave
energy.

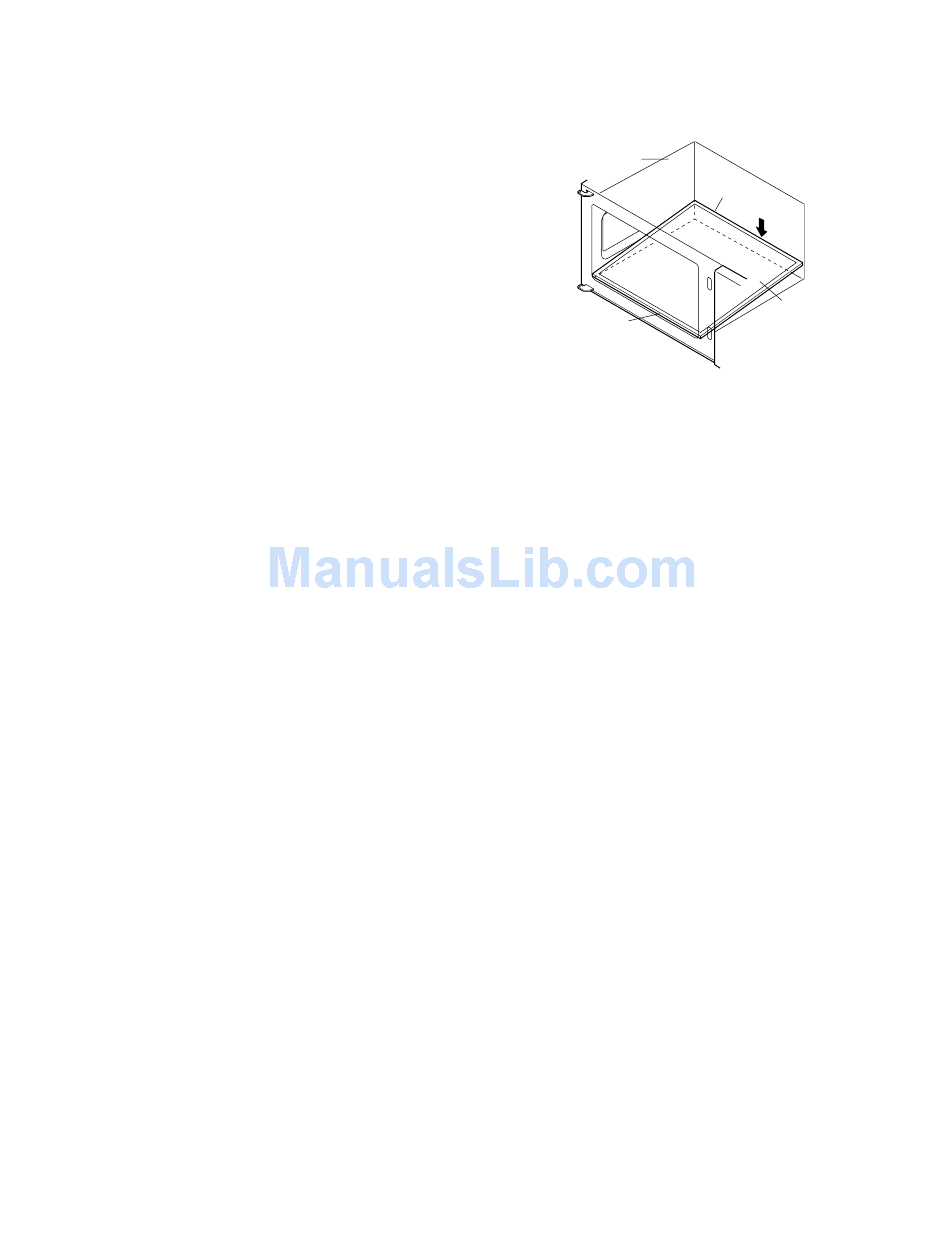

Oven C avity
F ront E dge
11 – 8
R ear E dge
P us h
C eramic
S helf
