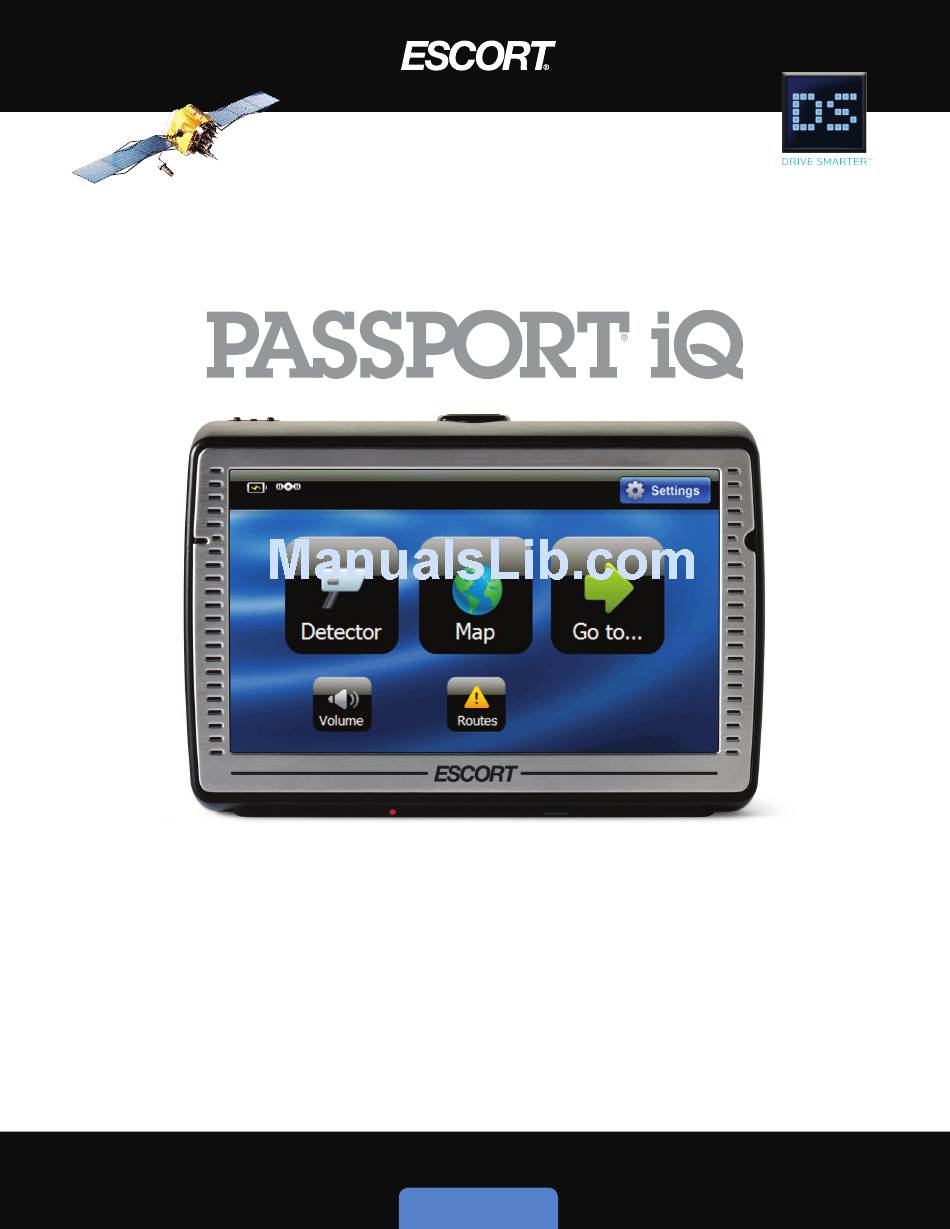

- Page 1 Ultimate Radar/Laser Detection Easy 3D Navigation U L T I M A T E D R I V I N G C O M P A N I O N User’s Manual...
- Page 2 SECTION 1: SETTING UP PASSPORT iQ What’s Included 5” GPS/radar‐detection device SmartCord USB cable Mounting bracket Owner’s Manual on CD Quick‐Reference Guide Device Controls and Features Component Description Power Switch Switches PASSPORT iQ on or off, or locks the screen Charge Light Red: Unit is plugged in, and battery is not fully charged Alternating red and green: Battery is almost completely charged Green: Battery is completely charged LCD Screen 5” touch‐sensitive screen Used only for connecting PASSPORT iQ to your PC or laptop to USB Port download software updates or charge the battery Reset Button Press to reset the device if unit stops responding Power Jack For connecting your SmartCord to power PASSPORT iQ with your (telephone‐type jack) vehicle’s battery Earphone Jack For connecting 3.5 mm mono earphone Micro SD Card Slot For adding future optional features ...
- Page 3 Alert Light For indicating radar or laser alerts Rear Laser Lens For receiving laser alerts Audio Speaker For audible alerts and voice prompts External GPS Port Accepts external GPS device for improved reception Mount Release Button For conveniently releasing PASSPORT iQ from the windshield mount Front Laser Lens For receiving laser alerts (ensure clear view of road ahead) Radar Antenna For receiving radar alerts (ensure clear view of road ahead) SmartCord The SmartCord is a special power cord with a power‐on indicator (which only lights up when PASSPORT iQ is turned on), a bright LED alert light that warns of radar or laser, and a mute button right on the plug for convenient access to PASSPORT iQ’s Mute and TrueLock features. It’s perfect for any car where reaching the device’s mute button on the windshield is a stretch. For details on connecting PASSPORT iQ to the Smart Cord, see “Connecting the Power.” Connecting the Power PASSPORT iQ is supplied with a SmartCord for power while in a vehicle. Caution: Disconnect PASSPORT iQ from the SmartCord when starting the vehicle. To power PASSPORT iQ, plug the small end of the SmartCord (telephone‐type connector) into the modular jack on the device’s right side and plug the lighter‐plug adapter into your vehicle’s lighter socket or accessory socket, as shown in the illustration below. ...
- Page 4 PASSPORT iQ operates on 12‐volt DC negative ground only. The lighter plug provided is a standard size and will work in most vehicles. Note: Depending on your vehicle, the lighter socket power may be continuously on or it may be switched on and off with your ignition switch. Charging the Battery PASSPORT iQ comes with a built‐in rechargeable battery. Charge the battery fully before using it for the first time. To charge the battery, connect PASSPORT iQ to a desktop or laptop computer via the USB cable or to an AC/DC 12‐volt wall adapter via the SmartCord. Charging time is normally about eight hours (or overnight) via USB computer connection or two hours via wall adapter. A fully charged battery delivers about two hours of use. Note: Radar/laser detection features cannot run on the PASSPORT iQ battery alone. These functions will only work when your device is connected to your vehicle via the SmartCord. Battery warnings If these guidelines are not followed, the internal lithium‐ion battery may experience a shortened lifespan or may present a risk of damage to PASSPORT iQ, fire, chemical burn, electrolyte leak, and/or injury. • Do not remove or attempt to remove the non‐user‐replaceable battery. • Do not leave PASSPORT iQ exposed to a heat source or in a high‐temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove from the vehicle or store it out of direct sunlight, such as in a glove box. • Do not puncture or incinerate. • When storing PASSPORT iQ for an extended time, store within the following temperature range: 32°F to 77°F (0°C to 25°C). • Do not operate PASSPORT iQ outside of the following temperature range: ‐4°F to 131°F (‐20°C to 55°C). • When disposing of PASSPORT iQ, take it to a professional, such as a waste electronics treatment facility, to have the battery removed and recycled. ...
-
Page 5: Mounting Location
Mounting in Your Vehicle Warning: Do not mount PASSPORT iQ where it impairs the driver’s view of the road. Make sure that airbags are not obstructed by the device. Mounting location Be sure to mount PASSPORT iQ level and high enough on your front windshield to provide a clear view of the road ahead. In order for the GPS features to work properly, the top case must have a clear view of the sky. For optimum radar and laser sensitivity, center PASSPORT iQ between the driver and passenger and ensure the back of the device faces forward. Mount PASSPORT iQ away from windshield wipers, other solid objects, and heavily tinted areas that might obstruct the radar antenna or laser lens. Mounting instructions PASSPORT iQ’s EasyMount windshield bracket is designed for unobtrusive and hassle‐free mounting. To attach the EasyMount bracket to your windshield, press the suction cup firmly onto the glass, then flip the locking clamp to ensure the suction cup is adhered to the windshield securely. Be sure to keep both your windshield and the suction cup clean. To attach PASSPORT iQ to the EasyMount bracket, slide PASSPORT iQ downward so the EasyMount bracket locks into the slot on the back of the device. To adjust PASSPORT iQ on your windshield, move the adjustable EasyMount bracket arm to your preferred view. You can leave the EasyMount bracket in place on your windshield and easily remove PASSPORT iQ by pressing the EasyMount release button and sliding PASSPORT iQ off the mount. Again, be sure to position the bracket where it won’t present a hazard in the event of an accident. ... - Page 6 12. Keep PASSPORT iQ away from liquids that might drip or splash on it. Do not place liquid‐ filled containers on it. 13. Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury: • When installing PASSPORT iQ in a vehicle, place the unit securely, so it does not obstruct the driver’s view of the road or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place in front of or above any airbag. • When navigating, carefully compare information displayed on PASSPORT iQ to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation and defer to posted road signs. • Always operate the vehicle in a safe manner. Do not become distracted by PASSPORT iQ while driving and always be fully aware of all driving conditions Minimize the amount of time spent viewing PASSPORT iQ’s screen while driving and use voice prompts when possible. Do not input destinations, change settings, or access any functions requiring prolonged use of PASSPORT iQ’s controls while driving. Pull over in a safe and legal manner before attempting such operations. • PASSPORT iQ is designed to provide route suggestions. It is not designed to replace the need for driver attentiveness regarding road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety while driving. Important: Always be sure that PASSPORT iQ and any external device connected to it are switched off and unplugged from the power supply before you attempt to connect it to another external device. ESCORT RADAR DETECTORS RADAR DETECTORS...
