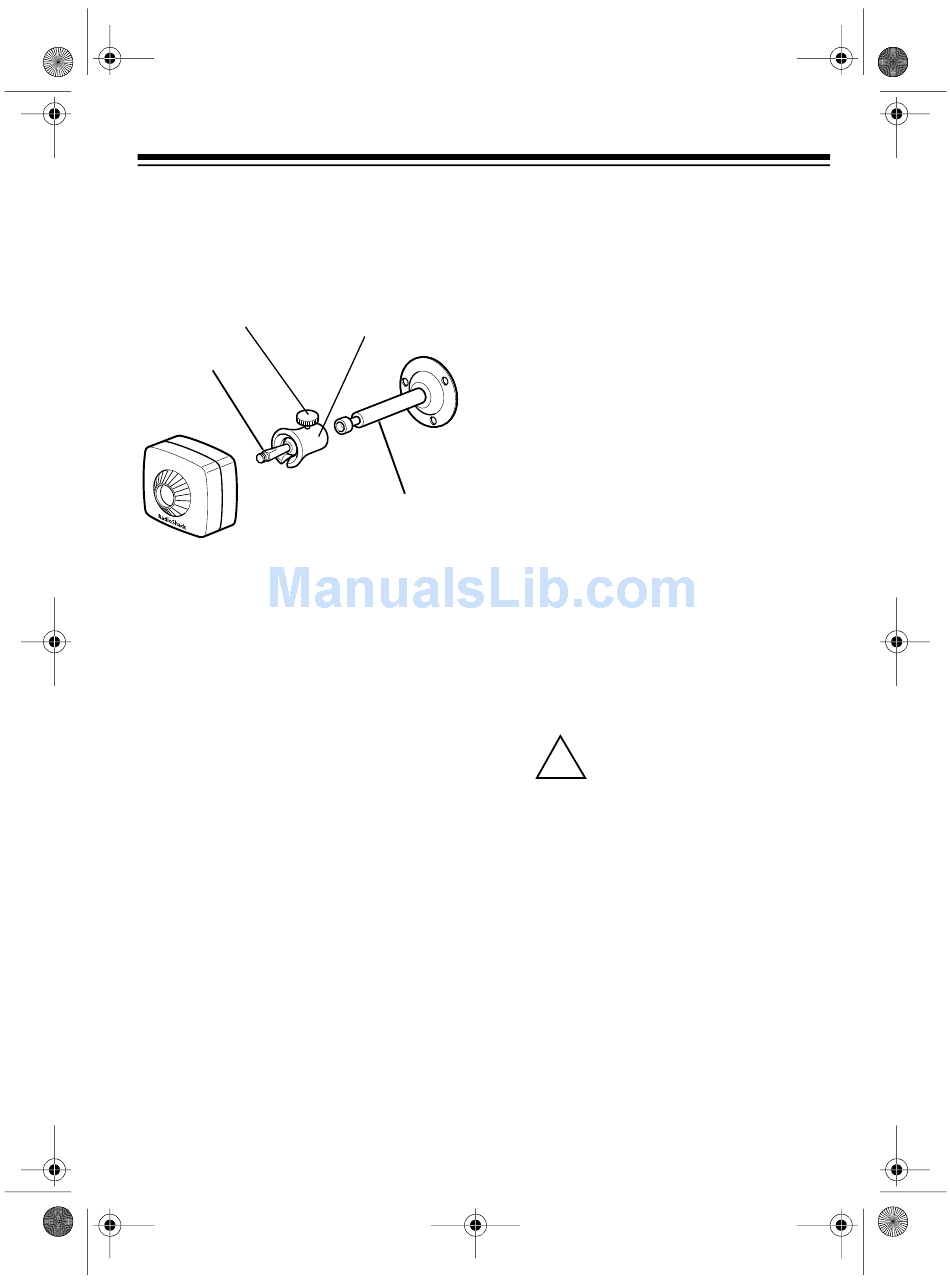

5. Be sure the lock bolt is tight. Thread
1
the short,
/
-20 post on the ball joint
4
assembly into the camera's thread-
ed mounting hole. Do not overtight-
en it.
Locking Knob
1
/
-20 Post
4
6. Place the camera/ball joint assem-
bly over the top of the lock bolt then
swivel/rotate the camera as needed.
(You might need someone to watch
the TV or monitor to confirm the
camera's position once you connect
the camera to your monitor, as
some small adjustment might be re-
quired.) Then tighten the locking
knob only enough to secure the
camera. Do not overtighten it.
Ball Joint Assembly
Lock Bolt
3
CONNECTING TO A
STANDARD TV/MONITOR
You can connect the camera to a TV/
monitor that is equipped with audio/vid-
eo input jacks. Follow these steps to
connect the camera.
Note: For the best results, mount the
camera securely before connecting the
cable.
1. Connect the yellow
the supplied cable to the TV/moni-
tor's video input jack. See "Typical
Connections Overview" on Page 5.
2. Connect the cable's white
plug to the TV/monitor's audio input
jack.
3. Insert the supplied AC adapter's
barrel plug into the receptacle of the
cable's DC12V jack. Then connect
the adapter to a standard AC outlet.
Caution: You must use a
!
Class 2 power source that
supplies 12 volts DC and
delivers at least 200 mA. Its center
tip must be set to positive and its
plug must fit the CCD camera's
power cable jack. The supplied
adapter meets these specifications.
Using an adapter that does not meet
these specifications could damage
the CCD camera or the adapter.
4. Connect the 4-pin keyed cable plug
into the matching socket on the
back of the camera.
Note: The plug fits only one way. If it
does not immediately fit, do not
force it! Turn it over and try again.
plug of
VIDEO
AUDIO
