Removing the mSATA Card

WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before Working Inside
Your Computer" on page 7. After working inside your computer, follow the
instructions in "After Working Inside Your Computer" on page 9.
For more safety best practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.

Prerequisites

1 Remove the base cover. See "Removing the Base Cover" on page 10.
2 Remove the battery. See "Removing the Battery" on page 12.
3 Remove the wireless card. See"Removing the Wireless Card" on page 16.
4
Remove the fan. See "Removing the Fan" on page 20.
5 Remove the speakers. See "Removing the Speakers" on page 14.

Procedure

1 Follow the step 1 to step 6 from "Removing the System Board" on page 25.
2
Flip the system board.
3 Remove the screw to release the mSATA card.
4 Remove the mSATA card from the system board.

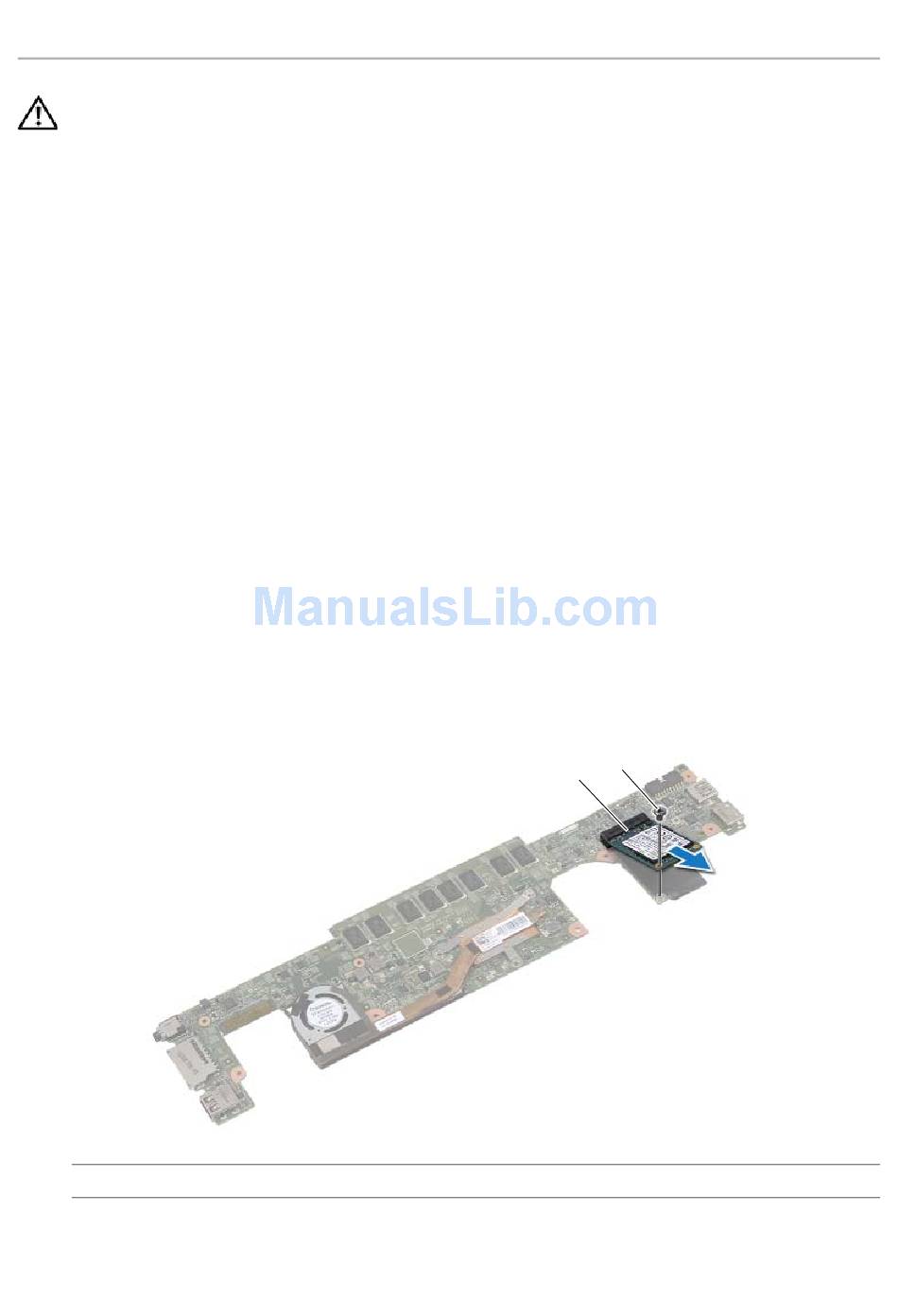

1 mSATA
2
1
2 screw
