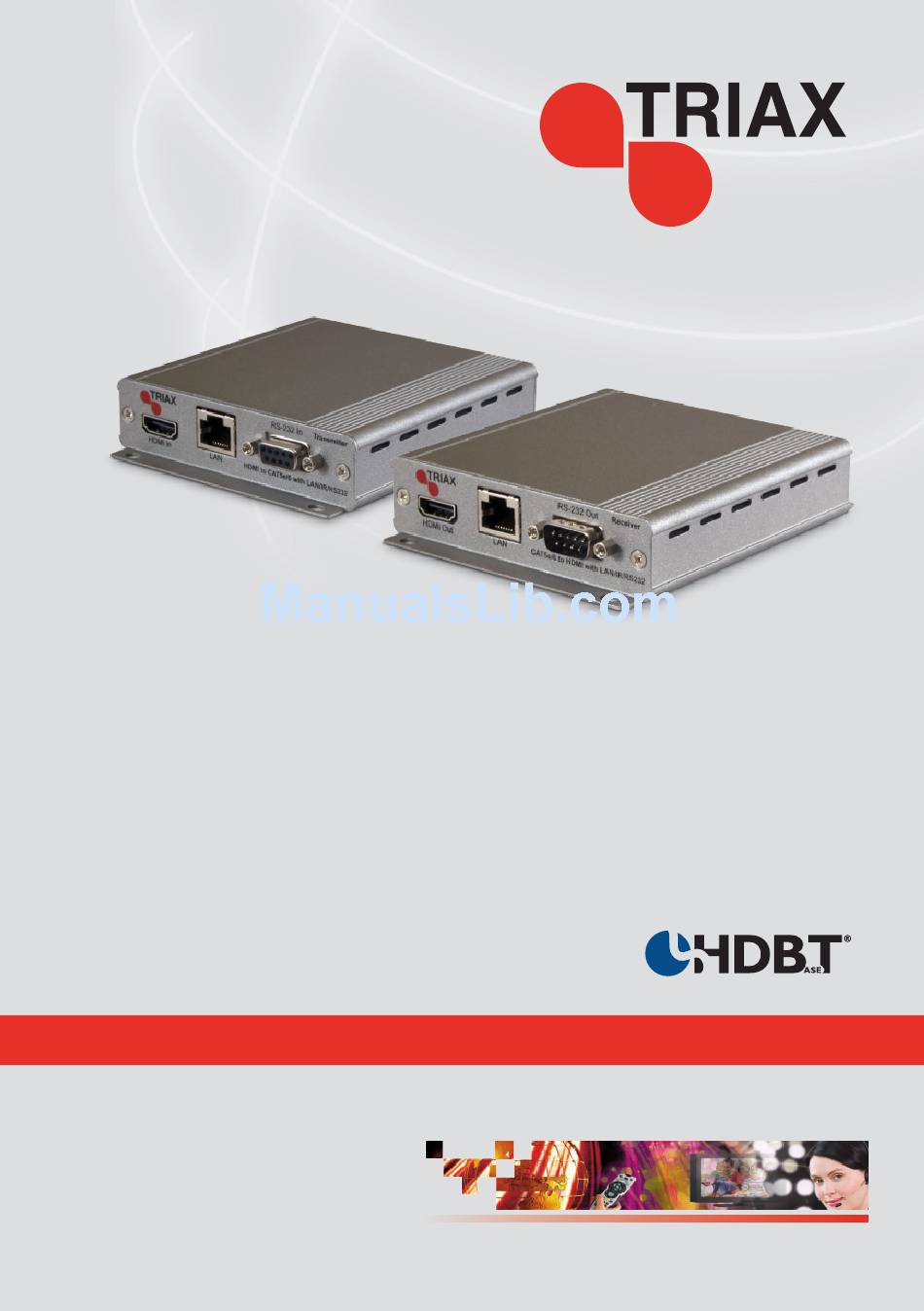

- Page 1 HTX 1V HDMI Transmitter HDBaseT 5-Play 100m Part No. 310001 HRX 1V HDMI Receiver HDBaseT 5-Play Part No. 310002 Operating Manual TRIAX - your ultimate connection...
-
Page 2: Table Of Contents
The examples used throughout this manual are based on the HTX and HRX models. Dear Triax customer Thank you for purchasing the TRIAX HTX HDMI Transmitter/ HRX HDMI Receiver. To ensure safety and many years of trouble-free operation, please read the Important Safety Precautions carefully before using this product. -
Page 3: Safety Precautions
Important Safety Precautions • Cleaning - Unplug the AC power from the mains supply before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Introduction
Introduction The HTX 1V, HRX 1V allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS-232, 2-way IR control functionality and bi-directional internet over the same CAT5e/6 cable. -
Page 5: Front Panel View
Front View Transmitter Receiver RS-232 In RS-232 Out Transmitter Receiver HDMI In HDMI Out HDMI to CAT5e/6 with LAN/IR/RS232 CAT5e/6 to HDMI with LAN/IR/RS232 1. HDMI In: Connect your HDMI Source, such as a Blu-ray player to the “HDMI In” socket on the Transmitter. -
Page 6: Specifications
Specifications Transmitter Inputs 1 x HDMI, 1 x IR Extender, 1 x IR Blaster, 1 x RS-232, 1 x LAN Output 1 x CAT5e/6 Receiver Inputs 1 x CAT5e/6, 1 x IR Extender, 1 x IR Blaster, 1 x LAN Outputs 1 x HDMI, 1 x RS-232 General... -
Page 7: Connections And Installations
Connections and Installation Acronyms Acronym Complete Term CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-Bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 8 Issue 2 *Triax reserves the right to change the specifications without prior notification...
